Figure Number: 4180-4194
Contact a Representative

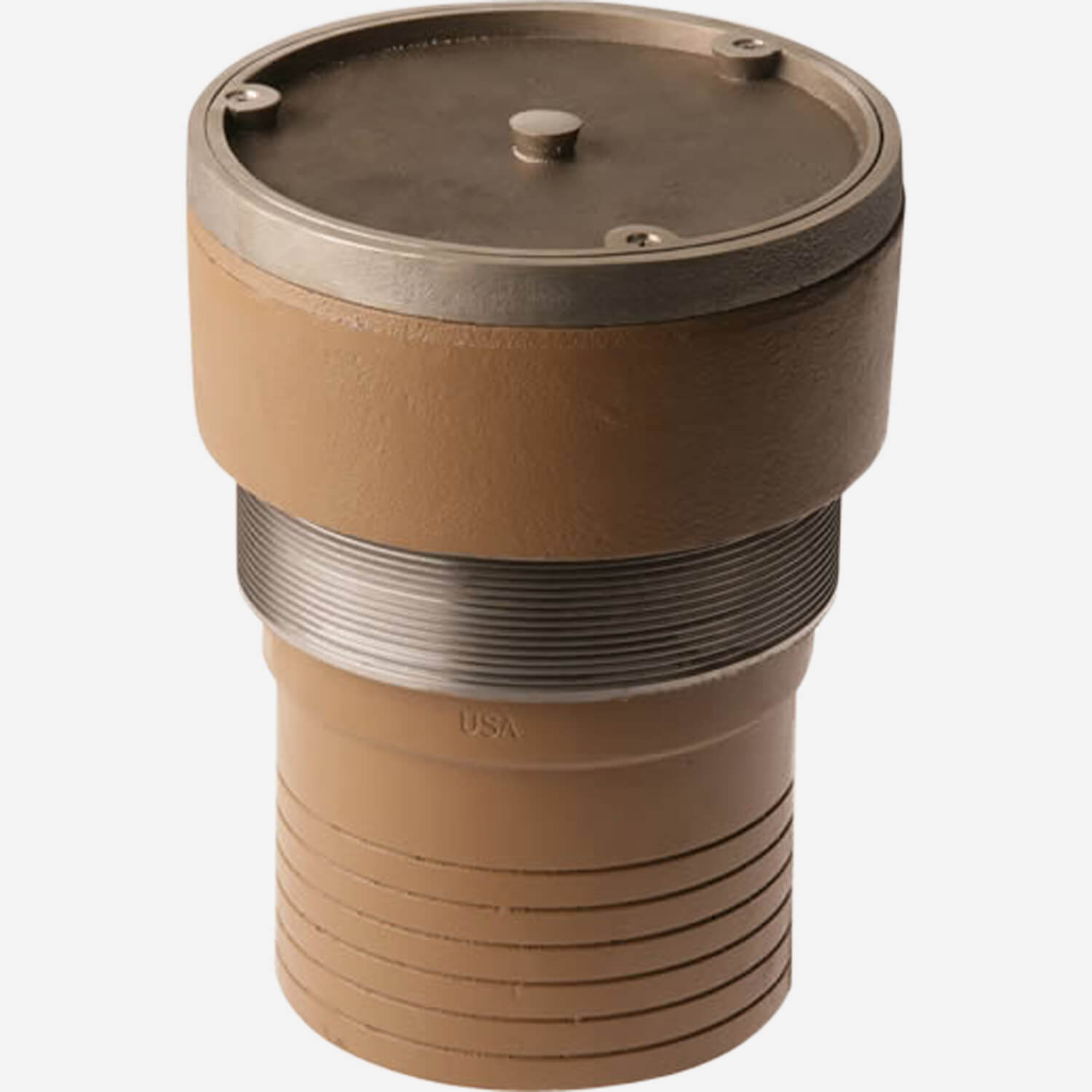

4180-4194Terrazo and Similar Tile Floor Cleanouts with Square Nickel Bronze Tops and Tile Recess

This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after terrazzo and similar poured floors are installed. Its 5-3/4” (145) diam. nickel bronze top is recessed 1/2” (13) and locks in the poured flooring material for an unobtrusive appearance. Constructed of Duco coated cast iron, this cleanout is designed to support foot and medium load wheeled traffic.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Flange -F, Flashing Flange and Clamp -F-C, Vandal Proof -U - Top, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Polished Bronze Top - PB
  • Product Type
    Cleanout
SubmittalSubmittal 4180 Cleanout
View
Technical Drawings
DWG 4180 CleanoutDWG 4180 CleanoutDWG77 KB
DWG 4185 CleanoutDWG 4185 CleanoutDWG90 KB
DWG 4191 CleanoutDWG 4191 CleanoutDWG110 KB
Literature / Videos
Submittal 4185 CleanoutSubmittal 4185 CleanoutPDF931 KB
Submittal 4191 CleanoutSubmittal 4191 CleanoutPDF865 KB
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Cleanouts Flyer (pdf)Flyer for CleanoutsPDF847 KB
4180 - Round Nickel Bronze Top with Terrazzo Recess (hi res jpg)JPG37 KB

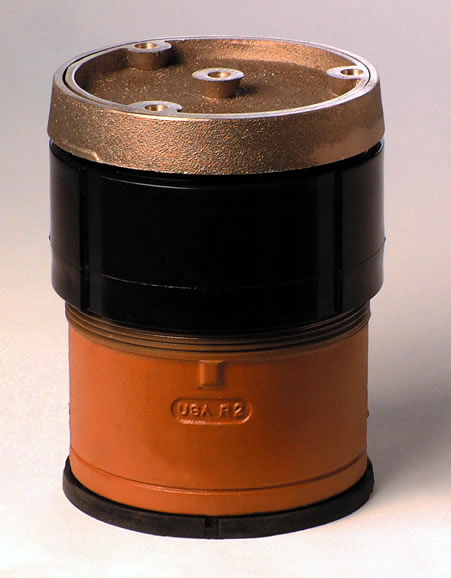

4191 - Round Nickel Bronze Top with Terrazzo Recess (hi res jpg)JPG37 KB

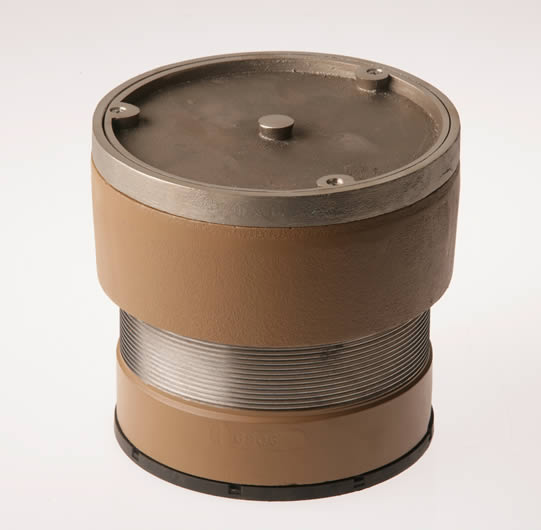

4193 - Round Nickel Bronze Top with Terrazzo Recess (hi res jpg)JPG22 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Can't find what you are looking for? Get in touch
  • 4185 With Inside Caulk Outlet
  • 4193 Available in 6" and 8" Outlet Size
  • 4191 Available in 2", 3" and 4" Outlet Size
