Figure Number: 4040-4054

4040-4054Finished Floor Cleanouts with Square Nickel Bronze Tops

This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings are installed. Its 6” (150) square nickel bronze top is particularly suited for installation in flooring materials having straight line patterns. Constructed of Duco coated cast iron, this cleanout is designed to support foot and medium load wheeled traffic.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Flange -F, Flashing Flange and Clamp -F-C, Vandal Proof -U - Top, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Polished Bronze Top - PB
  • Product Type
    Cleanout
Technical Drawings
DWG 4040 CleanoutDWG 4040 CleanoutDWG75 KB
DWG 4045 CleanoutDWG 4045 CleanoutDWG89 KB
DWG 4051 CleanoutDWG 4051 CleanoutDWG108 KB
RFA 4040 CleanoutRFA 4040 CleanoutRFA580 KB
RFA 4043 CleanoutRFA 4043 CleanoutRFA276 KB
Literature / Videos
Submittal 4051 CleanoutSubmittal 4051 CleanoutPDF2 MB
Submittal 4045 CleanoutFinished Floor Cleanouts with Square Nickel Bronze Tops [Fig 4045C | Gasket Seal - ABS Plug; 4046C | Gasket Seal - Bronze Plug; 4047C | Taper Thread - Bronze Plug; 4048C | Taper Thread - ABS Plug]PDF850 KB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Cleanouts Flyer (pdf)Flyer for CleanoutsPDF847 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB

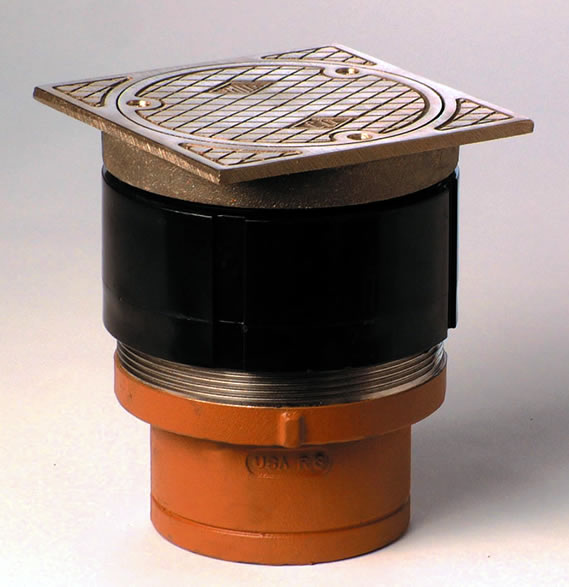

4040 - Square Nickel Bronze Top (hi res jpg)JPG47 KB

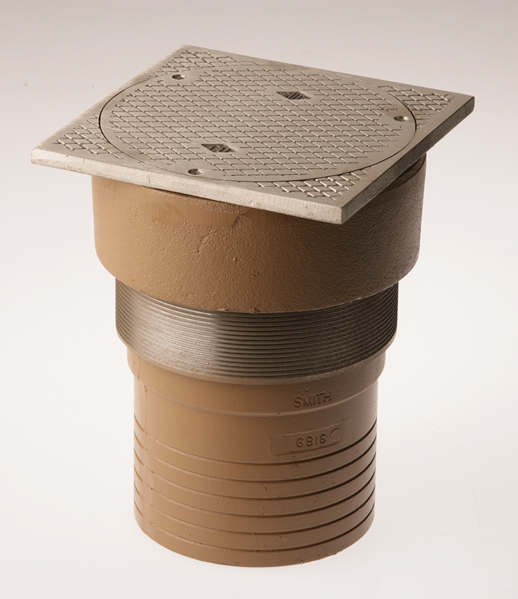

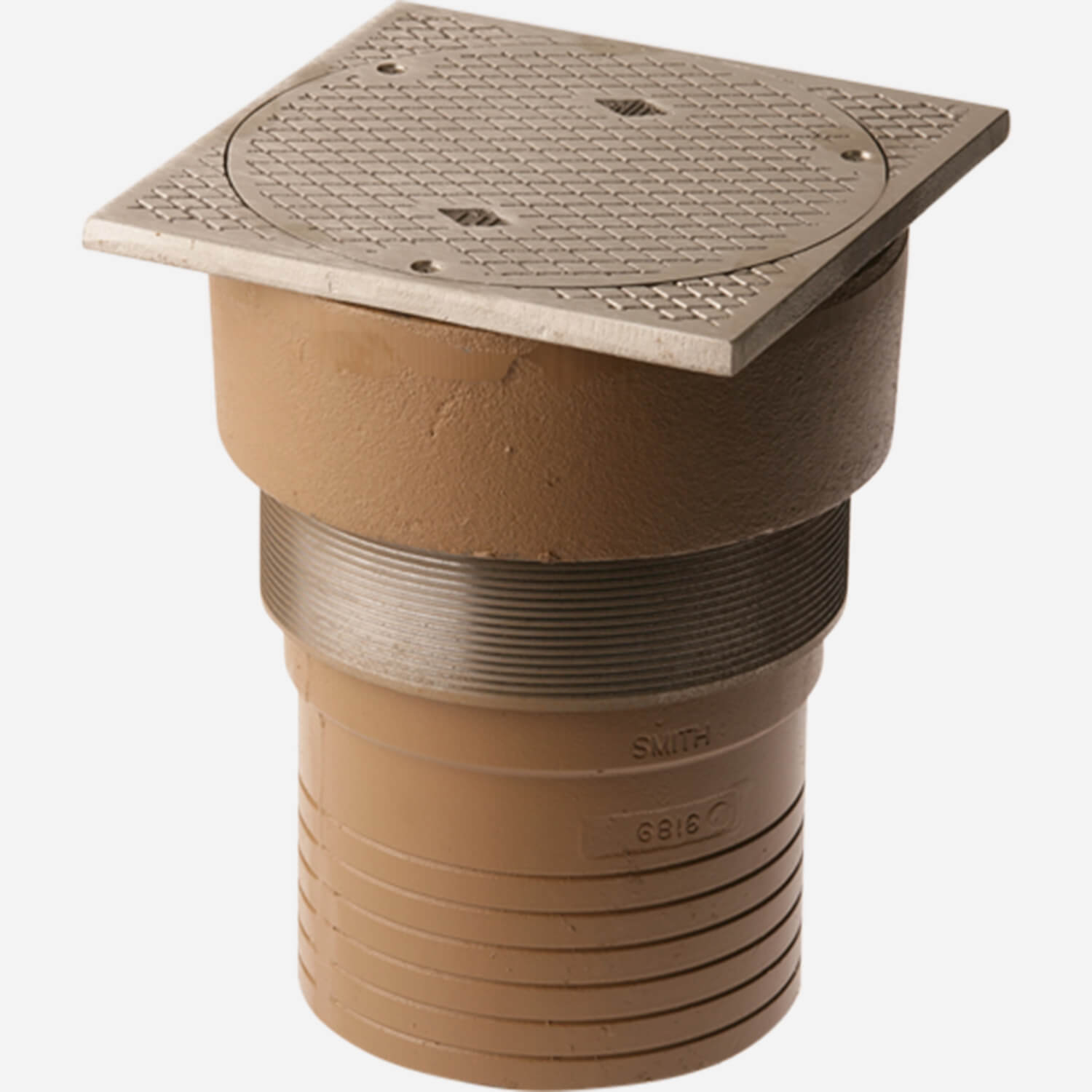

4043 - Square Nickel Bronze Top (hi res jpg)JPG145 KB

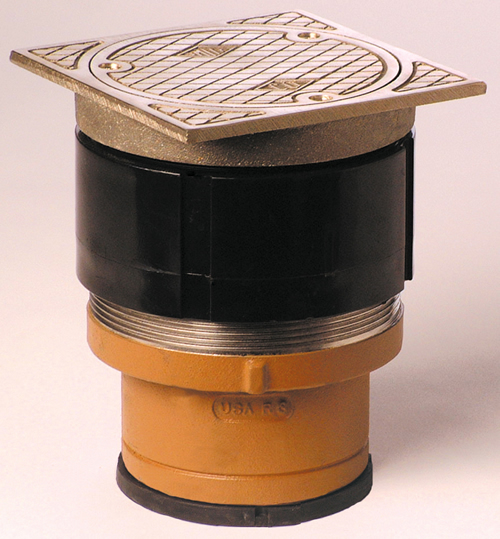

4051 - Square Nickel Bronze Top (hi res jpg)JPG202 KB

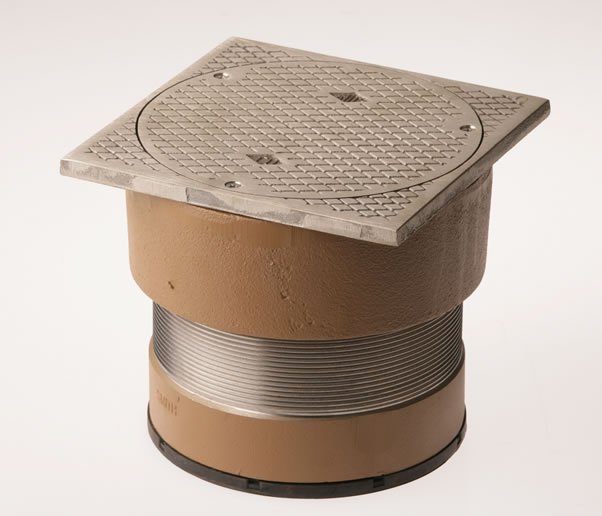

4053 - Square Nickel Bronze Top (hi res jpg)JPG40 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
