Figure Number: 2640

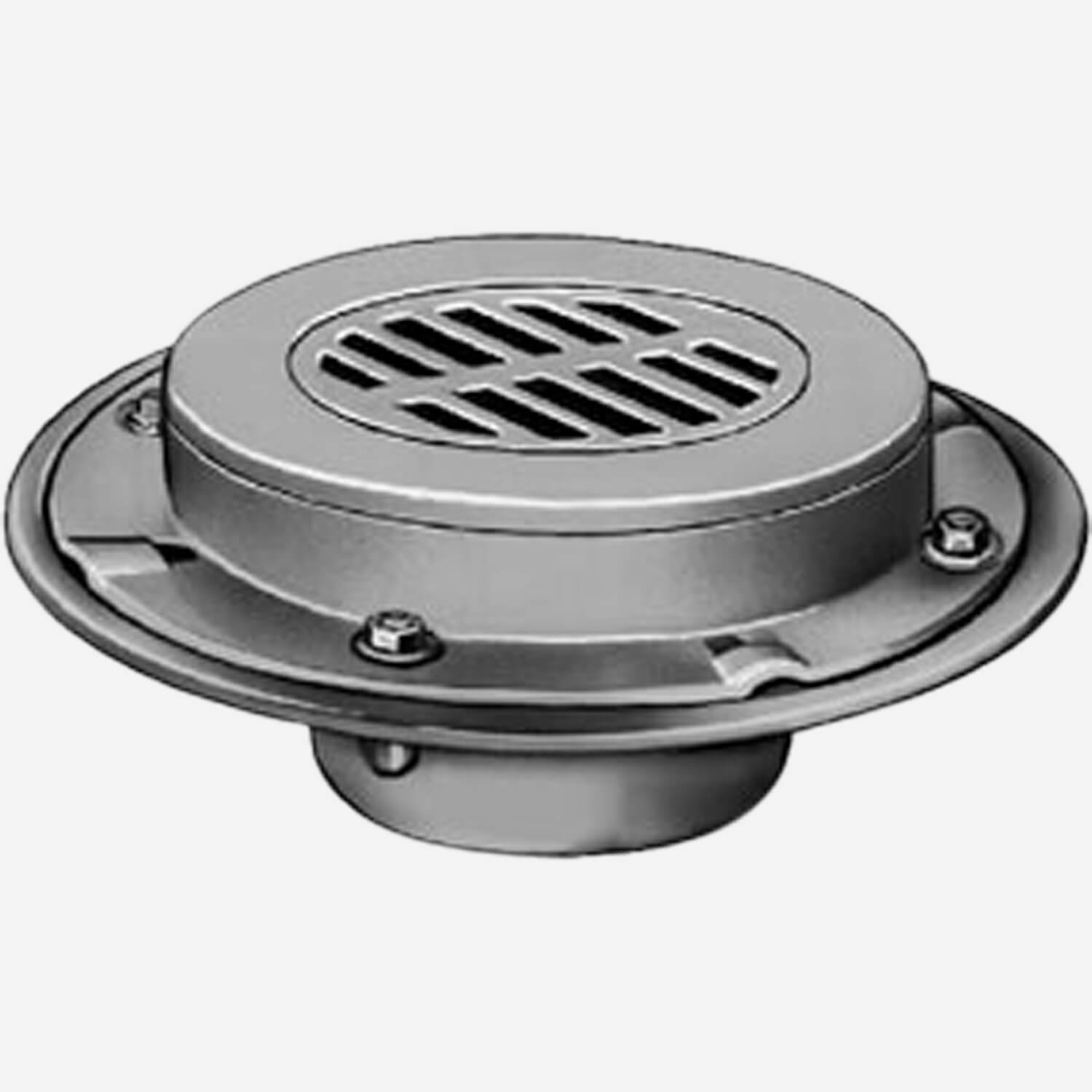

2640Blood and Water Floor Drains

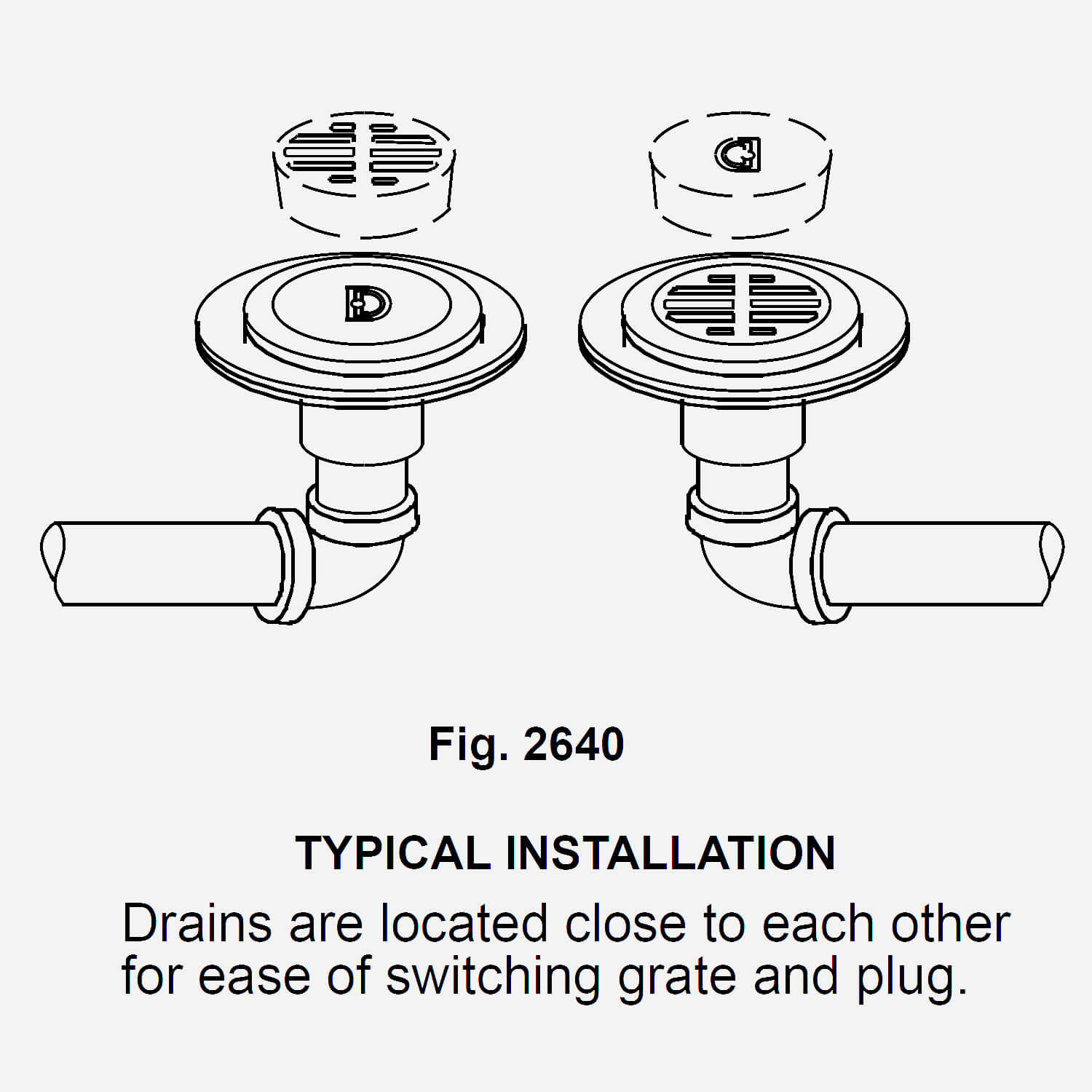

Available in pairs designed for installation in packing house slaughtering areas, these 12" diam. Duco coated cast iron drains permit separate drainage of animal blood and wastewater. They are supplied with both a drain plug and a slotted grate. During slaughtering, the grate covers the drain connected to the blood storage tank and the sewer drain is plugged. During area wash down, the grate and plug are reversed keeping water from entering blood storage tank.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19)
  • Optional Materials
    Bronze Grate and Plug -RB, Galvanized Cast Iron -G
  • Product Type
    Floor Drain
Technical Drawings
2640 Floor Drain CAD DrawingBlood and Water Floor Drain [2640C | Caulk Outlet; 2640T | Threaded Outlet; 2640Y | No-Hub Outlet]DWG65 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Can't find what you are looking for? Get in touch

Two (2) Duco Cast Iron Bodies with Flashing Collar and Bronze Rim, Cast Iron ADA Grate and Ground Joint Plug.

Bottom Outlet
2640C | Caulk Outlet
2640T | Threaded Outlet
2640Y | No-Hub Outlet
