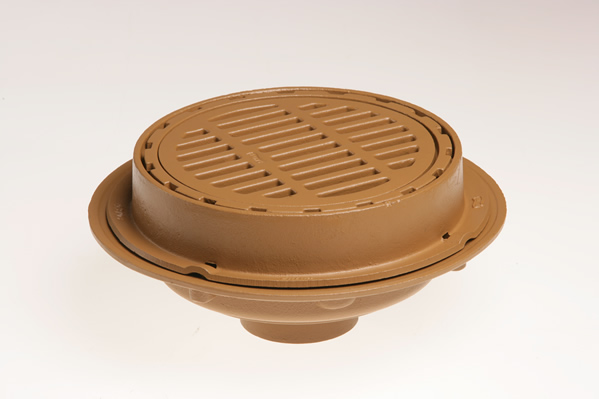

2230Light Duty Floor Drains with 12" Round Tops and Sediment Bucket

Designed to facilitate maintenance in high-flow areas where wastewater debris must not enter the drainage system. The Safe-Set® design of this floor drain allows proper realignment of the slotted sediment bucket once clean. This light duty floor drain and grate is made of Duco cast iron for static loads up to 4,999 lbs. (2,2500 kg.).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Hinged Grate -H, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor, Vandal Proof Grate - U, Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP, Stainless steel mesh grate (256.00 sq. in.) 1 meter, Stainless Steel Mesh Lined Bucket -BS
  • Optional Materials
    Ductile Iron Grate & Bucket -MGB, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2230, 2235 Floor Drain
View
Technical Drawings
2235 Floor Drain CAD DrawingLight Duty Floor Drains with 12" Round Tops and Sediment Bucket [2235 | Side Outlet; 2230 | Bottom Outlet] DWG136 KB
2230 Floor CAD DrawingLight Duty Floor Drains with 12" Round Tops and Sediment Bucket - Bottom OutletDWG214 KB
2330, 2331 Floor Drain (rfa)Medium Duty Floor Drains with 12" Round Adjustable Tops [2330C | Deep Body, Caulk Bottom Outlet; 2330Y | Deep Body, No-Hub Bottom Outlet; 2331C | Shallow Body, Caulk Bottom Outlet] RFA2 MB
2335 Floor Drain (rfa)Medium Duty Floor Drains with 12" Round Adjustable Tops [2335C | Caulk Side Outlet; 2335T | Thread Side Outlet] RFA688 KB
2230 Floor Drain Revit DrawingLight Duty Floor Drains with 12" Round Tops and Sediment Bucket [2230 | Bottom Outlet] RFA328 KB
Literature / Videos
Submittal 2231 Floor DrainLight Duty Floor Drains with 12" Round Tops and Solid Free Standing Sediment BucketPDF466 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
2230 Floor Drain (hi res jpg)Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2230 | Bottom Outlet] JPG48 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch
  • 2231 With Solid Free Standing Bucket

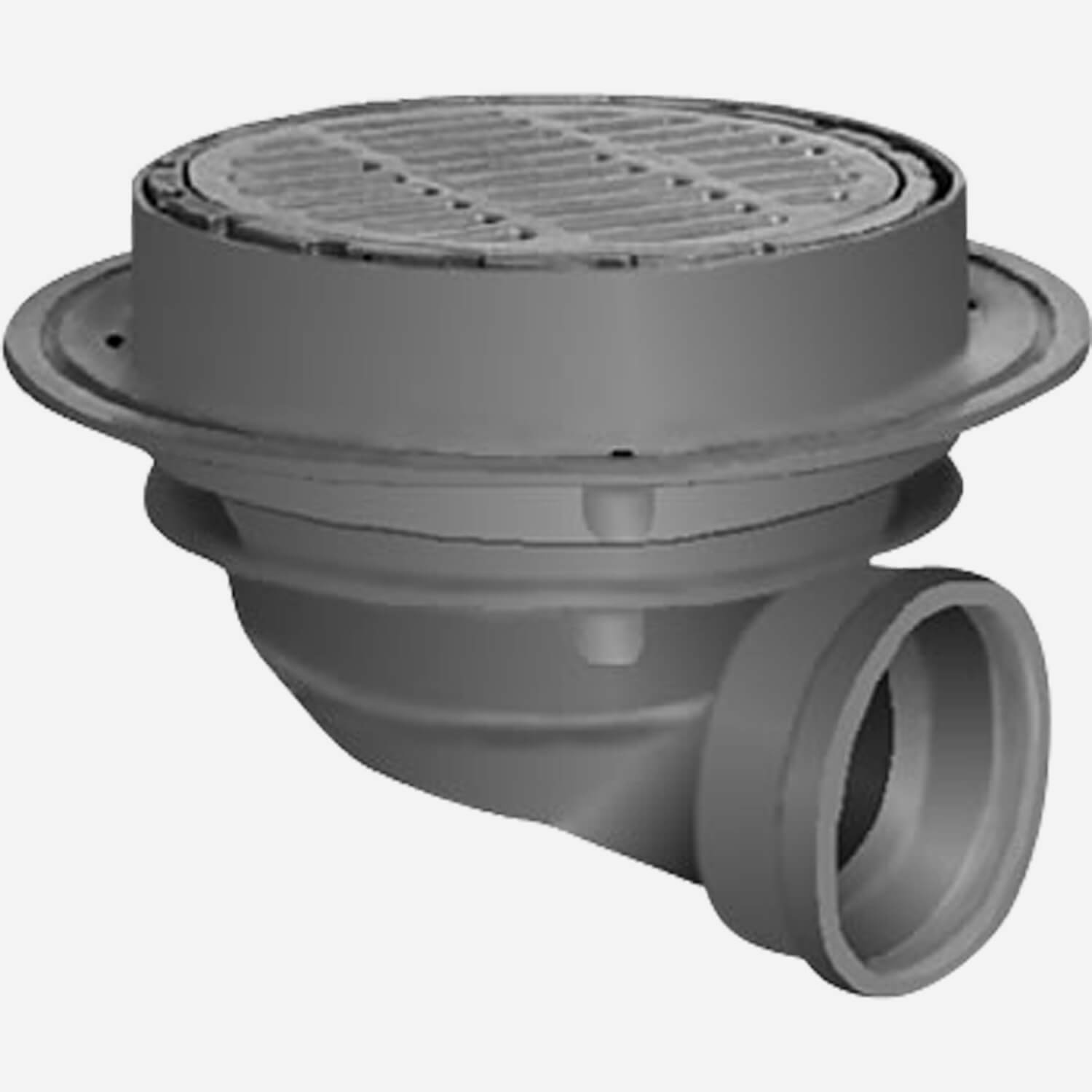

  • 2235 With Side Outlet
