Figure Number: 1900
Contact a Representative

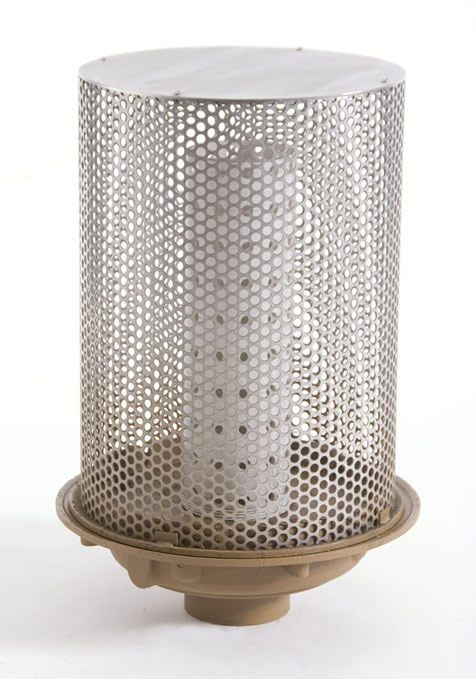

1900Green Roof Main Area Drain with Standpipe

Designed for non-pedestrian areas of green roof systems, this 15-1/4" (387.35 mm) diameter, Duco coated cast iron drain efficiently protects roofs and maintains optimal growing conditions for plants. It is protected against clogging by a perforated, stainless steel gravel stop and a 16-1/2" (419.1 mm) perforated PVC standpipe. This drain is fitted with a combination gravel stop and flashing clamp for leak free installation in roof decking.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Sump Receiver -R, Underdeck Clamp -C, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP, Extension -E, Adjustable Extension -AE, Vandal Proof Cover -U
  • Optional Materials
    Galvanized Cast Iron -G - Body & Collar
  • Product Type
    Roof Drain
SubmittalSubmittal 1900 Roof Drain (pdf)
View
Technical Drawings
1900 Roof Drain (dwg)Green Roof Main Area Drain with Standpipe [1900C | Caulk Bottom Outlet; 1900Y | No-Hub Bottom Outlet]DWG80 KB
1900 Roof Drain (rfa)Green Roof Main Area Drain with Standpipe [1900C | Caulk Bottom Outlet; 1900Y | No-Hub Bottom Outlet]RFA556 KB
Literature / Videos
Green Roof and Cool Roof Drains Brochure (pdf)Brochure Green Roof and Cool Roof DrainsPDF2 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
1900 Roof Drain (hi res jpg)Green Roof Main Area Drain with Standpipe [1900C | Caulk Bottom Outlet; 1900Y | No-Hub Bottom Outlet]JPG67 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Can't find what you are looking for? Get in touch

1900C | Caulk Bottom Outlet
1900T | Threaded Bottom Outlet
1900Y | No-Hub Bottom Outlet

Available in 02(50), 03(75), 04(100), 05(125), 06(150), 08(200) pipe sizes
