Figure Number: 1775
Contact a Representative

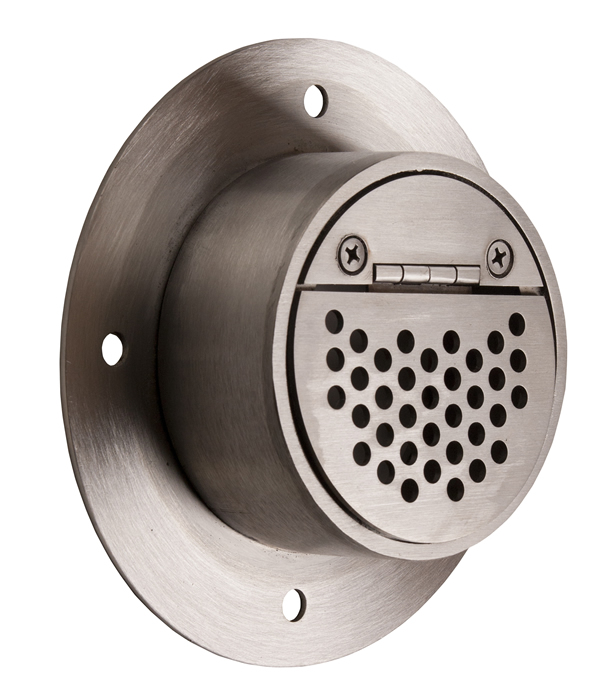

1775Downspout with Hinged Cover

Saves Maintenance by Keeping Debris Out

The uniquely designed cover of this downspout allows drainage to flow as it prevents intrusion of debris and keeps rodents and birds from nesting inside. Engineered to save labor during installation, the cover comes as a preassembled unit. The entire assembly is constructed of corrosion resistant stainless steel.

Pro Tip: Building owners do not overlook even the smallest details when it comes to aesthetics. This style of downspout cover can be a better fit for a building’s motif than the more traditional downspout nozzle.

Figure 1775 is a surface-mounted spout cover. It protrudes 2-1/2" from the wall.

Figure 1778 is a flush-mount spout cover.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Vandal Proof -U, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Fabricated Polished Brass -PB, Fabricated Chrome Plated Brass -CP
  • Product Type
    Roof Drain
  • Benefit
    Labor Saving
SubmittalSubmittal 1775 Spout with Cover (pdf)
View
Technical Drawings
1775 Spout (dwg)Wall Surface-Mount Downspout with Hinged Cover - Protrudes 2-1/2" from Wall (Available to accommodate 1.5", 2", 3", 4", 5", 6", 8", 10", 12", 15", 16", 18" pipe sizes]DWG66 KB
1775 Spout Revit DrawingWall Surface-Mount Downspout with Hinged Cover - Protrudes 2-1/2" from Wall (Available to accommodate 1.5", 2", 3", 4", 5", 6", 8", 10", 12", 15", 16", 18" pipe sizes]RFA328 KB
Literature / Videos
Submittal 1778 Downspout Cover (pdf)Flush-Mount Downspout with Hinged Cover [accommodates 4", 5", 6", 8", 10", 12" pipe sizes]PDF185 KB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
Downspout Nozzles and Covers Flyer (pdf)Flyer Downspout Nozzles and CoversPDF5 MB
1775 Spout (hi res jpg)Wall Surface-Mount Downspout with Hinged Cover - Protrudes 2-1/2" from Wall (Available to accommodate 1.5", 2", 3", 4", 5", 6", 8", 10", 12", 15", 16", 18" pipe sizes]JPG174 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Engineering Newsletter: Vol. 2, Issue 4 (May 2012)Fig. Nos. 1770, 1771, 1775 Downspout NozzlesPDF2 MB
Engineering Newsletter: Vol. 1, Issue 6 (May 2011)Fig. No. 1775 Downspout with Hinged CoverPDF637 KB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Can't find what you are looking for? Get in touch

Typical models are shown below

Surface Mount

Figure 1775 [submittal]
Surface-Mount available in
3", 4", 5", 6", 8",
10", 12", 15", 16", 18" pipe sizes

Flush Mount

Figure 1778 [submittal]
Flush-Mount available in
4", 5", 6", 8", 10", 12" pipe sizes
