1510Duco Cast Iron Body Scupper Drains

These corrosion resistant, Duco coated cast iron scupper drains are available in several configurations. The 90° side outlet design installs at the junction of roof and parapet (sidewall) where the drain's threaded outlet attaches to an outside downspout through an adaptor (Fig. 1550). The 45° threaded outlet design is for connecting the drain to an inside leader and can be offset into a wall. Both angled and flush (to prevent trip hazard) grates are offered and are loose set into the drain body.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Downspout Adaptor (Specify Fig. 1550), Secured Grate -SG, Secured Grate with Vandal Proof Screws -U, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top -NB, Polished Bronze Top -PB, Rough Bronze Face -RB, Stainless Steel -SS - (Specify Fig. 9785)
  • Product Type
    Roof Drain
Technical Drawings
DWG 1510 Roof DrainDWG 1510 Roof DrainDWG107 KB
RFA 1510 Roof DrainRFA 1510 Roof DrainRFA348 KB
RFA 1530 Roof DrainRFA 1530 Roof Drain With 45 Degree Threaded Outlet and Angle GrateRFA396 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
1530 - Scupper Drains (hi res jpg)JPG142 KB

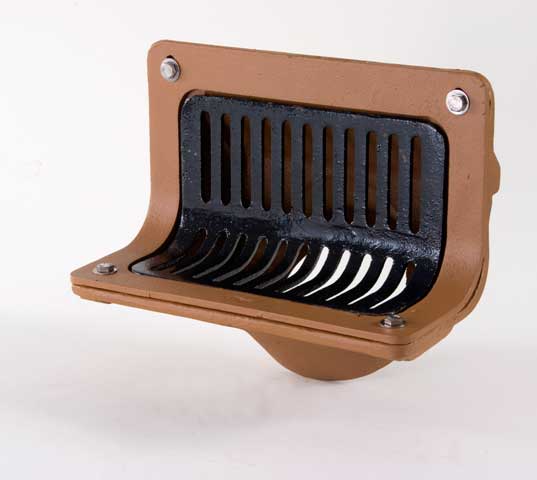

1540 - Scupper Drains (hi res jpg)JPG17 KB
