131112" Diameter Body Roof Drain and Low Profile Dome with 4.00" Gravel Stop

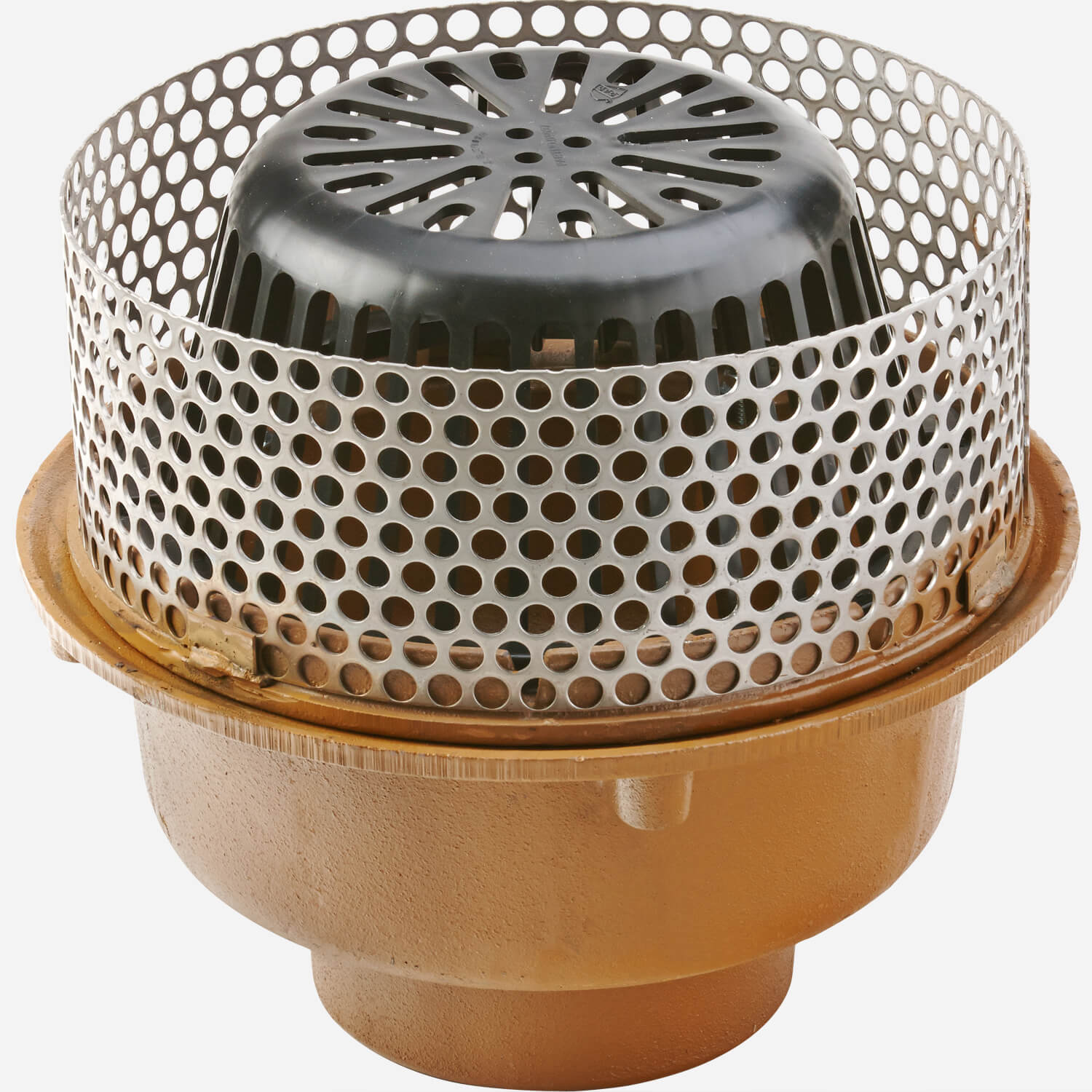

This 12" (305) diam. roof drain is fitted with a flashing clamp that makes a watertight, puncture free bond with roofing materials. It is constructed of corrosion resistant, Duco coated cast iron and topped by a polyethylene dome and a 4"(100) stainless steel, perforated gravel guard that keeps the drainage system free of debris. This drain is engineered for a long service life and designed for installation in flat roofs requiring a medium size drain.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Shows specifications for standard configuration. Configuration options may change specifications.

Variations
Expansion Joint (Specify Fig. 1710), Extension -E - (Specify Height), Higher Gravel Stop -HGS (Specify Height), Y NO-HUB, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Sump Receiver -R, Underdeck Clamp -C, (2) 3/8” (10) Tappings -TAP
Optional Materials
Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron -G, Rough Bronze Dome -RBD
Product Type
Roof Drain

SubmittalSubmittal 1311 Roof Drain

View

Technical Drawings

DWG 1311 Roof Drain

DWG304 KB

Literature / Videos

MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	PDF8 MB
MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	PDF712 KB
Specifications for Roof Drains	Specifications for Roof Drains	DOC230 KB
Technical Data for Roof Drains	Technical Data for Roof Drains	PDF2 MB
Parts Order Guide for Roof Drains	Parts Order Guide for Roof Drains	PDF5 MB
Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	PDF120 KB
