Figure Number: DX1250
Contact a Representative

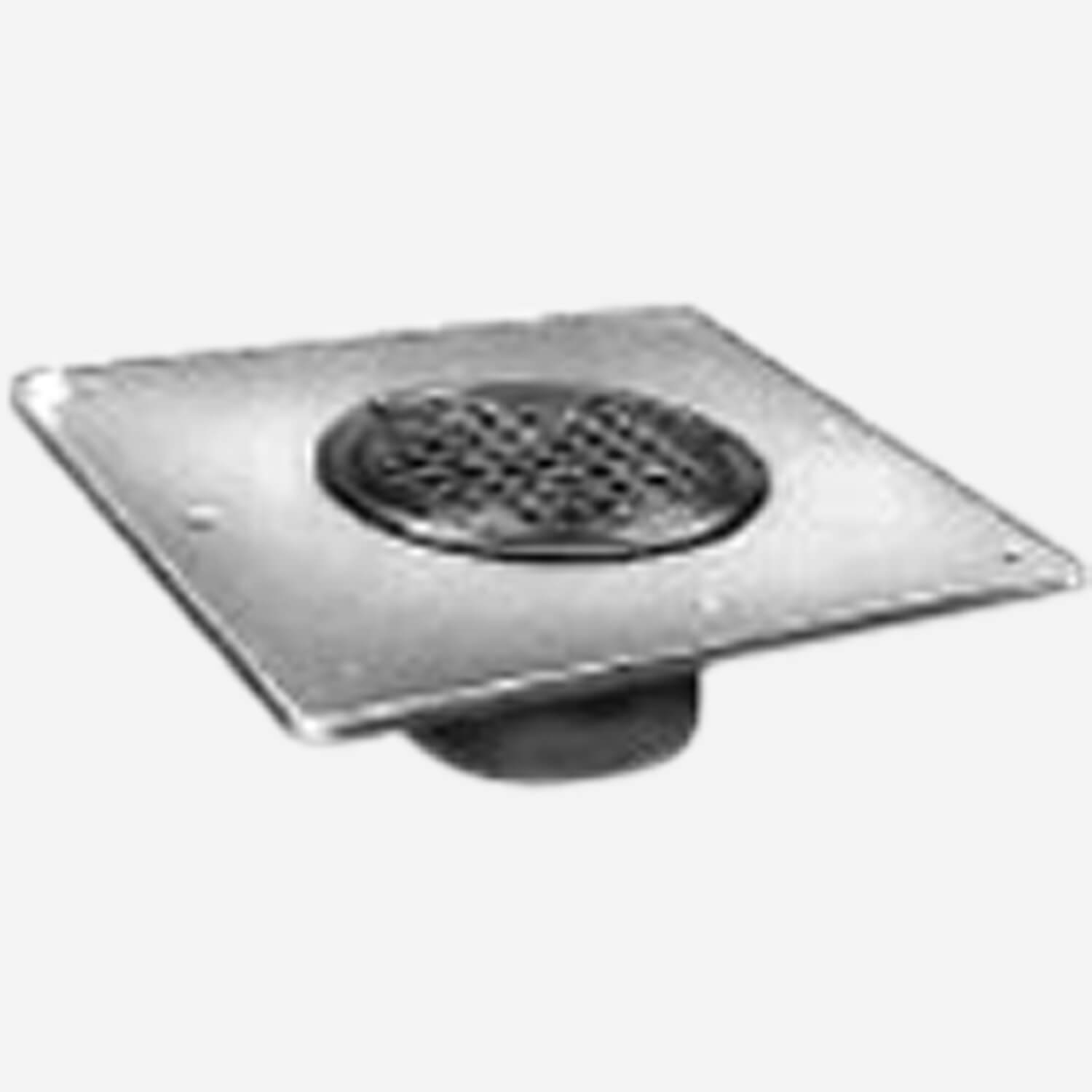

DX1250Square Wide Flange Body Roof Drain with Nickel Bronze Tractor Grate

Engineered for wood or concrete deck installation where waterproof finished decking is installed, this 7 3/4" diam. general purpose floor drain has a 14-1/4" sq. flange that provides a large surface for bonding with waterproofing membranes. A tough, 6-1/2" nickel bronze tractor grate is secured with screws to the drains body and supports heavy traffic.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Membrane Clamp - (Specify DX2565R), NO-HUB Adaptor - (Specify Fig. 2646Y), Securing Holes -SH, Sediment Bucket -B, Underdeck Clamp -C, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Polished Bronze -PB
  • Product Type
    Roof Drain
SubmittalSubmittal DX1250 Roof Drain
View
Technical Drawings
DX1250 Roof Drain CAD DrawingSquare Wide Flange Body Roof Drain with Nickel Bronze Tractor GrateDWG18 KB
