Figure Number: 9930

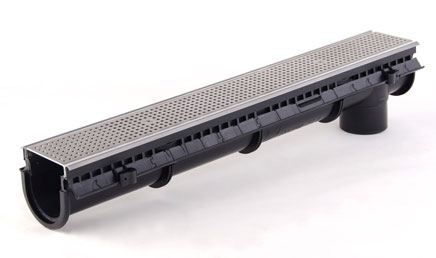

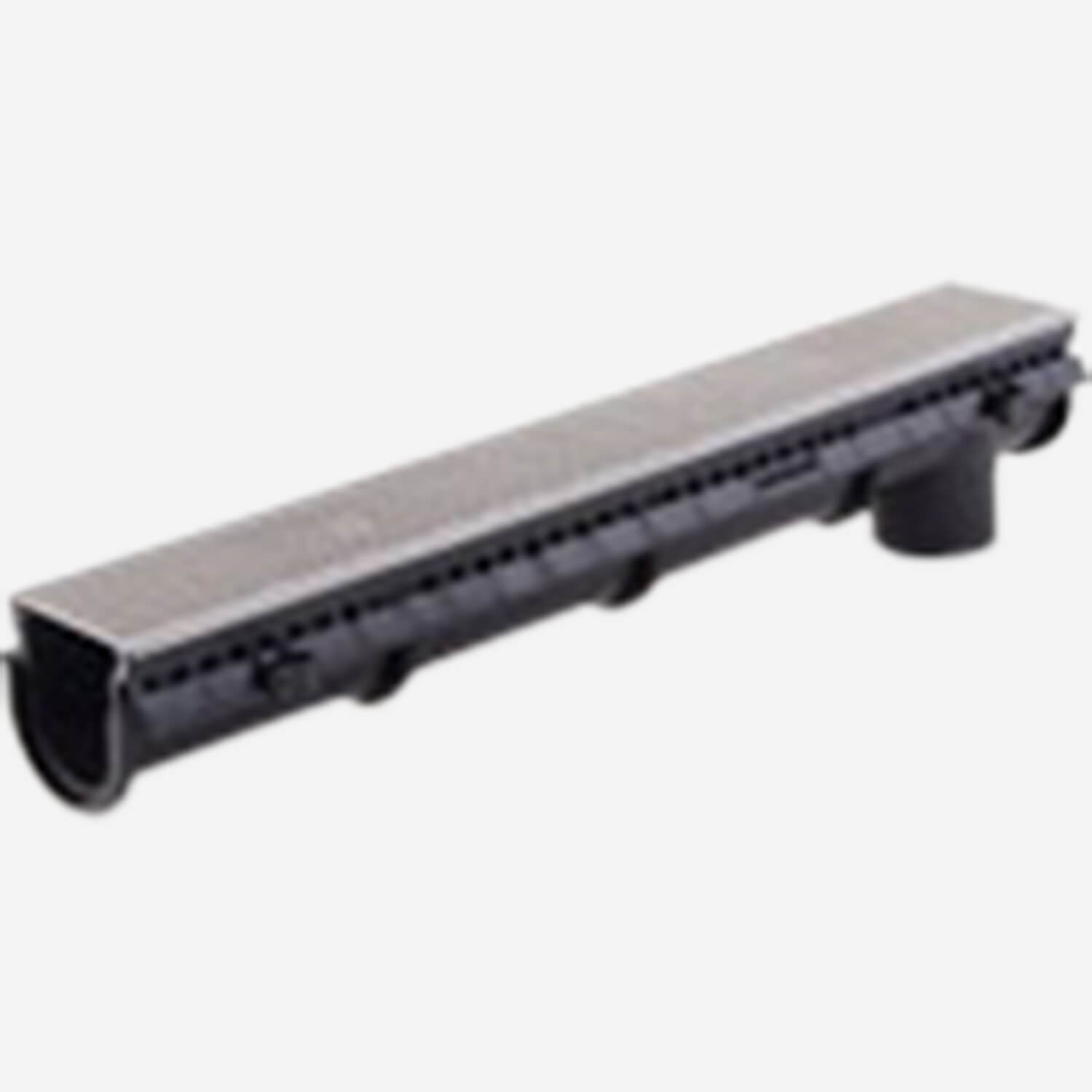

99306" Wide Polypropylene Trench Drain System - Enviro-Flo® II

The Enviro-Flo® II is a contractor-friendly, heavy duty trench drain system that is lightweight and easy to handle. It is available with two mounting options and the ability to make more adjustments in the field, the Enviro-Flo II offers flexibility and ease of installation saving time and labor.

This polypropylene trench drain is ideal for use in ballparks, stadiums, chemical processing plants, food and beverage, breweries, swimming pools, driveways, kitchens, and greenhouses.

9930 Enviro-Flo® II Features & Benefits

  • Lightweight, interlocking polypropylene channels are ideal for heavy duty applications
  • Excellent Chemical Resistance
  • Superior UV resistance
  • Bottom outlet on every section
  • Temperature rating up to 180° F
  • Load Class A - C
  • For catch basin, specify Fig. 9935 Inline Catch Basin

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Closing End Cap Shallow -ES, Closing End Cap Deep -ED, Horizontal Outlet 4" -H4, Catch Basin Only 9935-20, Catch Basin Plastic Bucket -BP, Direction Change Coupling -MC, Stainless Steel Overlay Rails -SSR, 9849 Rante Arrow, 4" NO-HUB Bottom Outlet Adaptor -BO, (2) 3/8” (10) Tappings -TAP
  • Product Type
    Trench Drains
