Figure Number: 1760
Contact a Representative

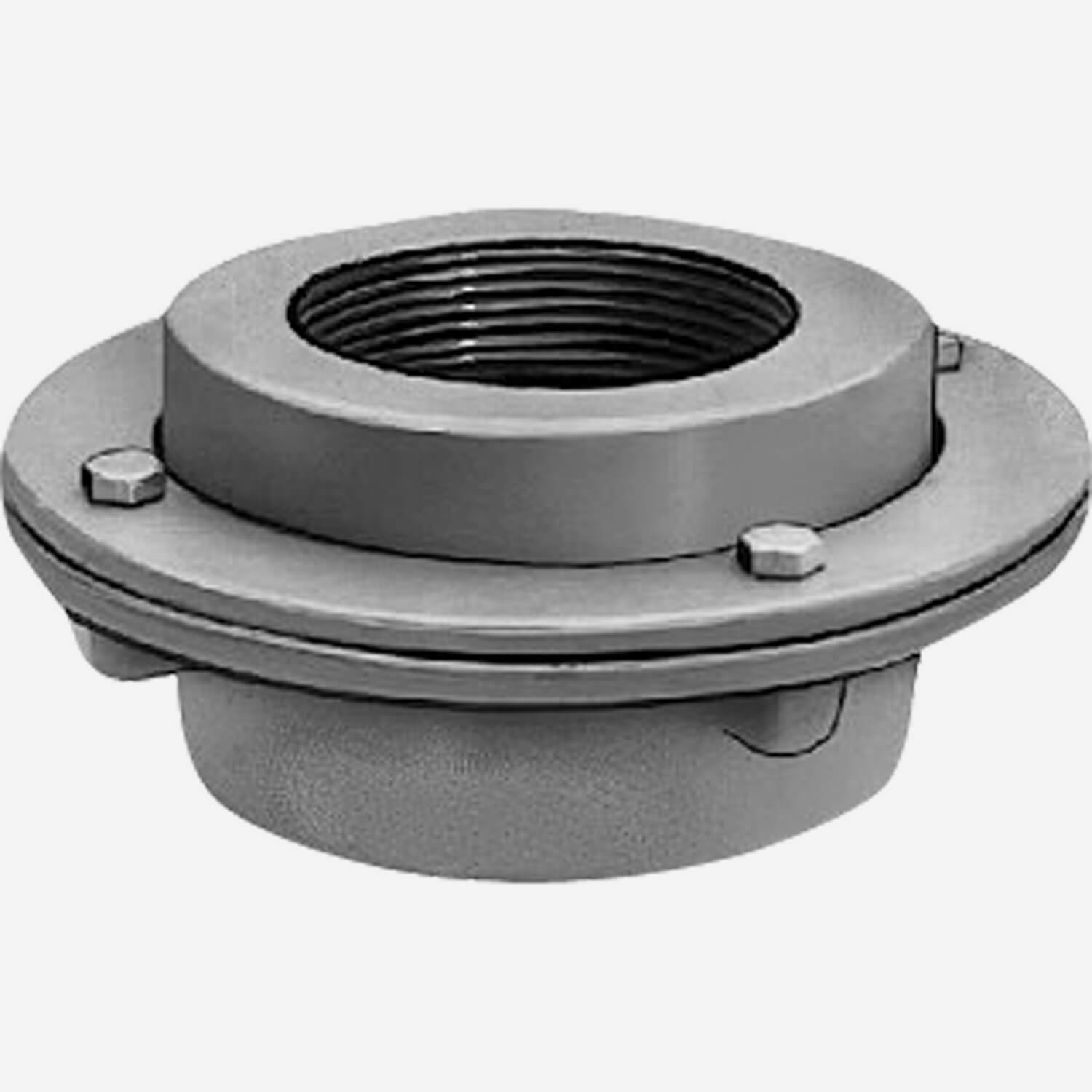

1760Riser Sleeve Adaptor

This device is used as an adaptor type riser sleeve. Constructed of Duco coated cast iron, sleeve length may be extended by inserting pipe nipples (not included) in either end of the sleeve. An integral flashing clamp secures the sleeve to waterproofing materials.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Optional Materials
    Galvanized Cast Iron -G
  • Product Type
    Roof Drain
SubmittalSubmittal 1760 Roof Drain
View
Technical Drawings
DWG 1760 Roof DrainDWG 1760 Roof DrainDWG32 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
