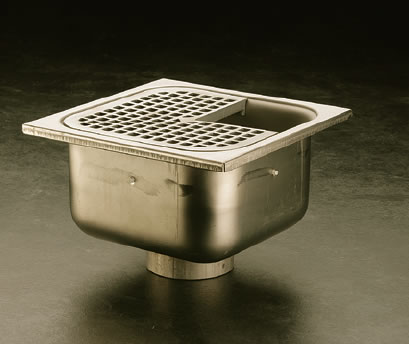

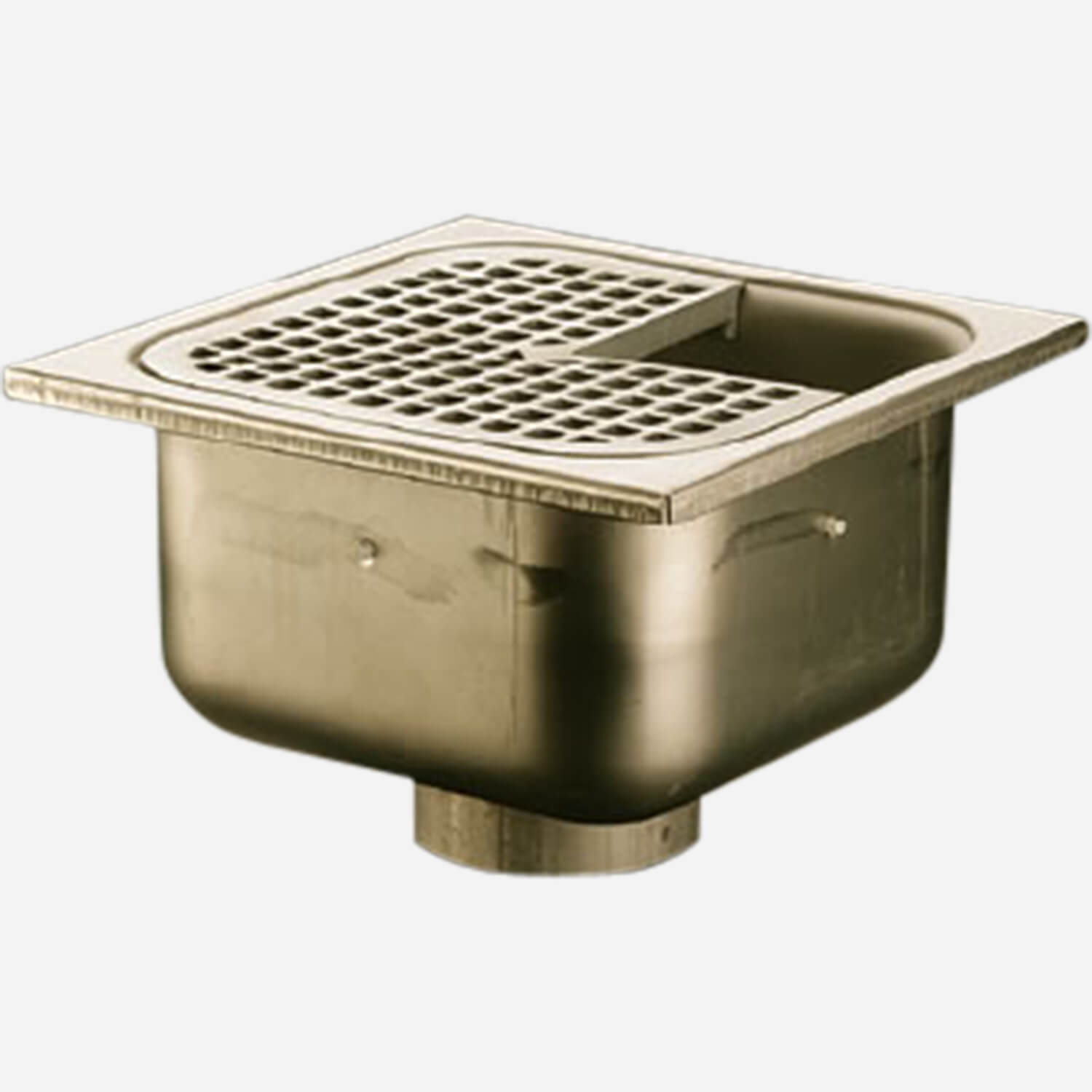

9691-969914 Gauge Stainless Steel Floor, Area & Indirect Waste Drains with 12" Square Top

Our 9691 Series 14 Gauge Stainless Steel floor drains are designed for installation in environments that require fixtures that help maintain consistently high levels of sanitation coupled with the ability to withstand corrosive liquids as in food handling and chemical processing plants. These 12” square top drains are available in a range of depths and options (strainer, sediment bucket, outlet connections and cover types) and offer a solution for many drainage needs.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Dome Bottom Strainer -DBS - (Bucket Models Only), Less Seepage Control Holes -LSH, Solid Ported Bucket -SBP, Anchor Flange -F, Flashing Flange and Clamp -F-C, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), T Male Threaded Connection, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Fabricated from Type 316 Stainless Steel -316
  • Product Type
    Drain
  • Compliance/Certifications
    NSF, UPC
SubmittalSubmittal 9691 Drain (pdf)
View
Technical Drawings
9691 Drain (dwg)14 Gauge Stainless Steel Floor, Area & Indirect Waste Drains with 12" Square Top [With Dome Bottom Strainer 9691, 9692, 9693, 9694; With Sediment Bucket 9696, 9697, 9698,.9699]DWG77 KB
Literature / Videos
MasterSpec: 221319.13, Sanitary Drains (doc)Floor drains, Floor sinks, Trench drains, Channel drainage systems. DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)Floor drains, Floor sinks, Trench drains, Channel drainage systems. PDF144 KB
Stainless Steel Drainage Products Brochure (pdf)Stainless Steel Drainage ProductsPDF4 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Competitive Cross Reference for Stainless Steel Drains (pdf)Competitive Cross Reference for Stainless Steel Drains (pdf)PDF67 KB
9691 to 9699 - 14 Gage Stainless Steel Floor, Area and Indirect Waste Drains with 12" (304) Square Top (hi res jpg)JPG20 KB
9691 to 9699 - 14 Gage Stainless Steel Floor, Area and Indirect Waste Drains with 12" (304) Square Top with Options (hi res jpg)JPG39 KB
NSF Certified Stainless Steel Drains (pdf)NSF Certified Stainless Steel Drains (pdf)PDF2 MB
Order Guidelines for SpecialtiesOrder Guidelines for SpecialtiesPDF268 KB
Can't find what you are looking for? Get in touch

14 Gauge Stainless Steel Floor, Area & Indirect Waste Drains with 12" (305 mm) Square Top

WITH DOME BOTTOM STRAINER
9691 | 4" (100 mm) Height Receptor Body
9692 | 6" (150 mm) Height Receptor Body
9693 | 8" (150 mm) Height Receptor Body
9694 | 10" (150 mm) Height Receptor Body

WITH SEDIMENT BUCKET
9696 | 4" (100 mm) Height Receptor Body
9697 | 6" (150 mm) Height Receptor Body
9698 | 8" (150 mm) Height Receptor Body
9699 | 10" (150 mm) Height Receptor Body

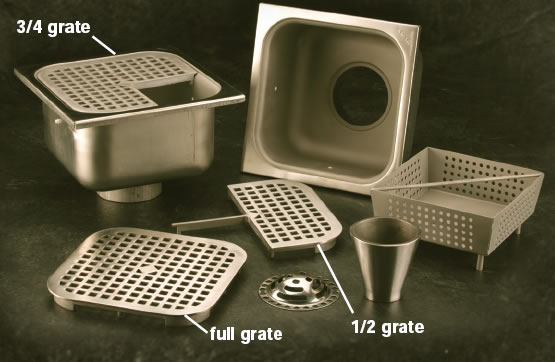

Optional Top Grates and Cover
Suffix -10 | Less SS Grate
Suffix -12 | With SS 1/2 Grate
Suffix -13 | With SS 3/4 Grate
Suffix -14 | With SS 2-1/2(64) Sq. Center Hole Grate
Suffix -15 | With SS Recessed Grate with Handle
Suffix -21 | With SS Grate with 4"(100) Dia. SS Funnel
Suffix -22 | With SS Grate with 6"(150) Dia. SS Funnel
Suffix -25 | With SS Grate with 8-1/4(210) x 3-1/4(53) x 4-1/2"(115) High Oval SS Funnel
Suffix -26 | With SS Grate with 6(150) x 2-1/2(64) x 1"(25) High Oval SS Funnel
Suffix -41 | With SS Solid Cover
Suffix -42 | With SS 1/2 Solid Cover
Suffix -43 | With SS 3/4 Solid Cover
Suffix -44 | With SS 2-1/2"(64) Sq. Center Hole Solid Cover
Suffix -61 | With SS Heel-Proof Ribbed Non-Tilt Loose Set Grate with 1/4"(6) Sq. Holes - Certified Light Duty
Suffix -63 | With SS Medium Duty Heel-Proof Ribbed Non-Tilt Loose Set Grate with 1/4"(6) Sq. Holes - Certified Medium Duty
Suffix -64 | With SS Heavy Duty Ribbed Non-Tilt Loose Set Grate with 1/2"(13) Sq. Holes
Suffix -66 | With SS Extra Heavy Duty Ribbed Non-Tilt Loose Set Grate with 1/2"(13) Sq. Holes - Certified Extra Heavy Duty
