Figure Number: 5904

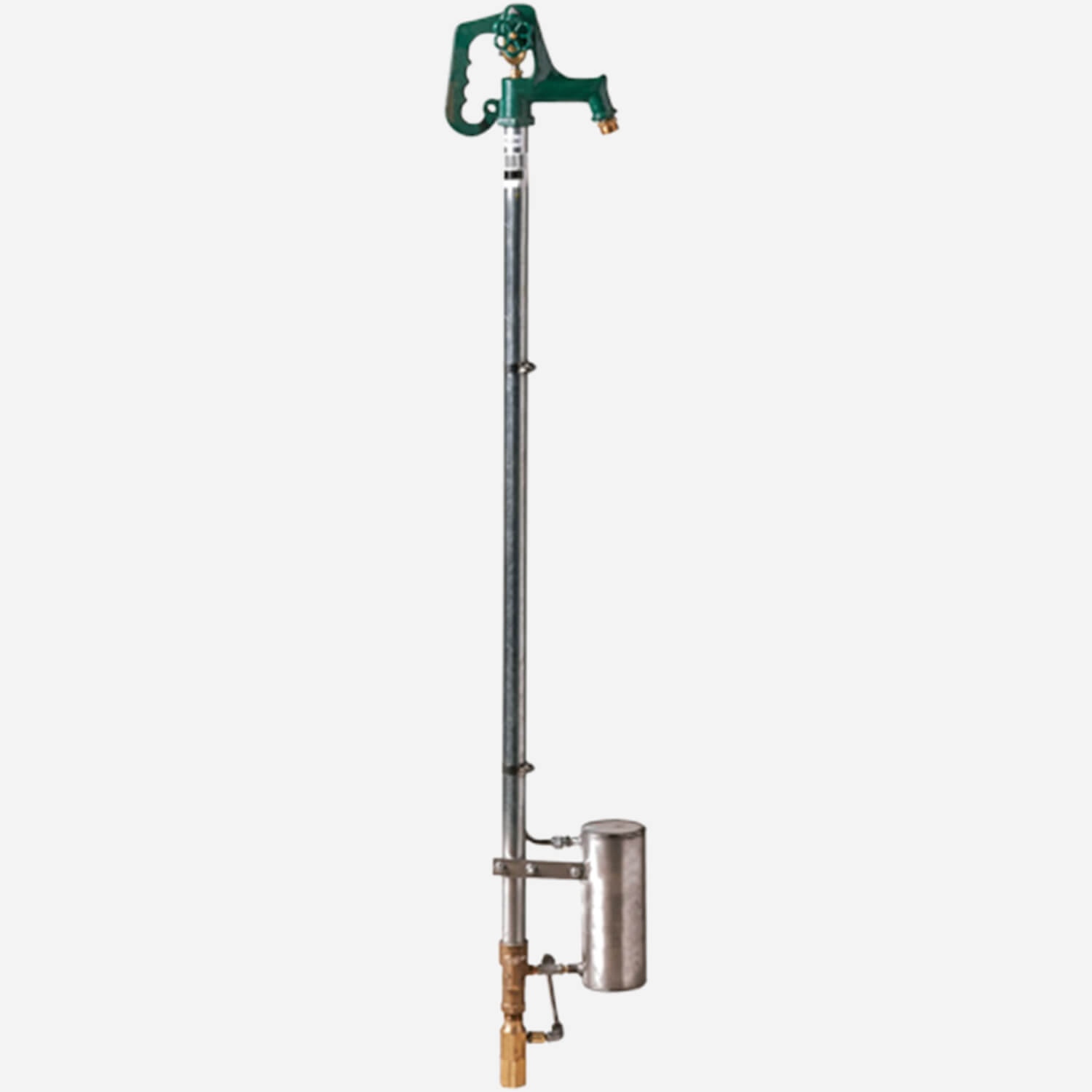

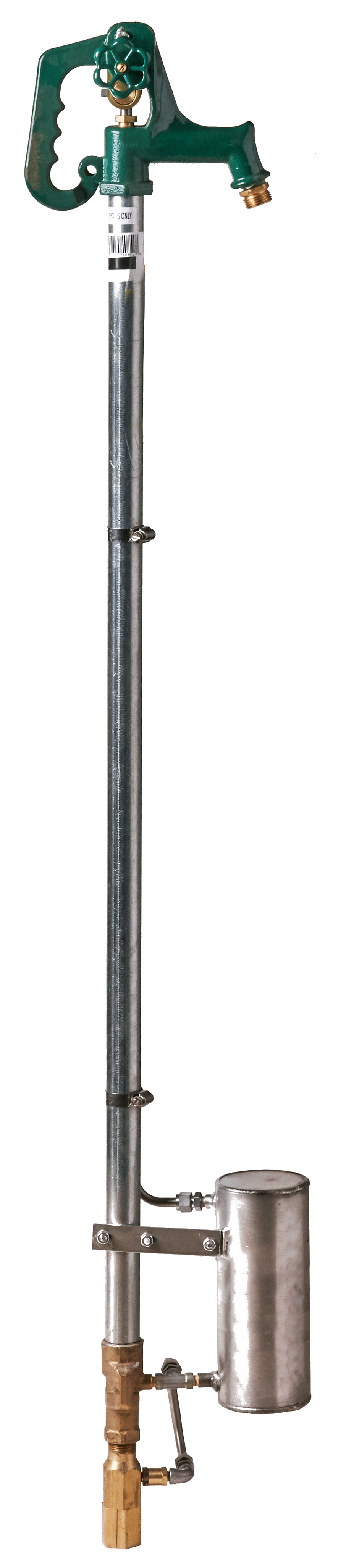

5904Non-Freeze Sanitary Post/Yard Hydrants

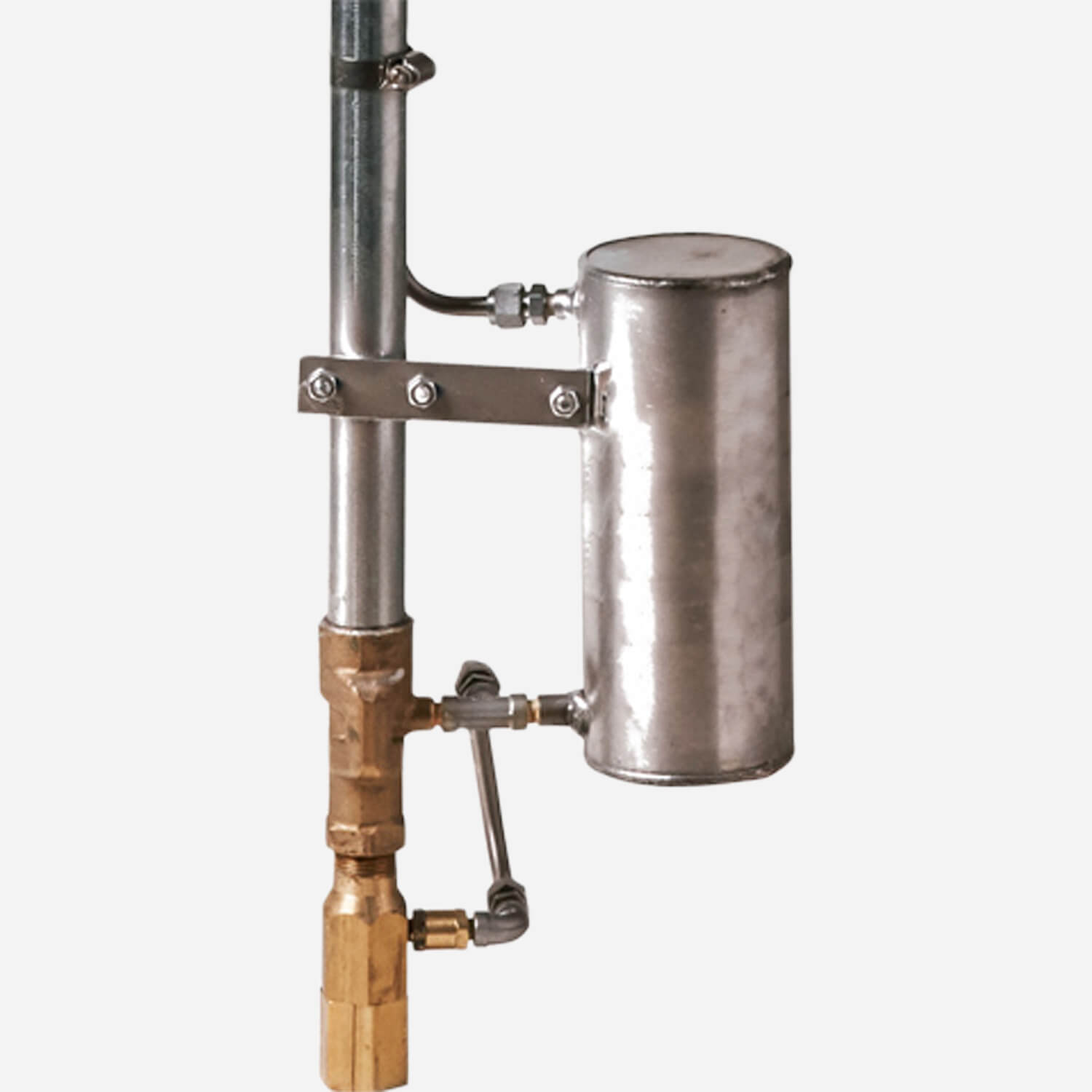

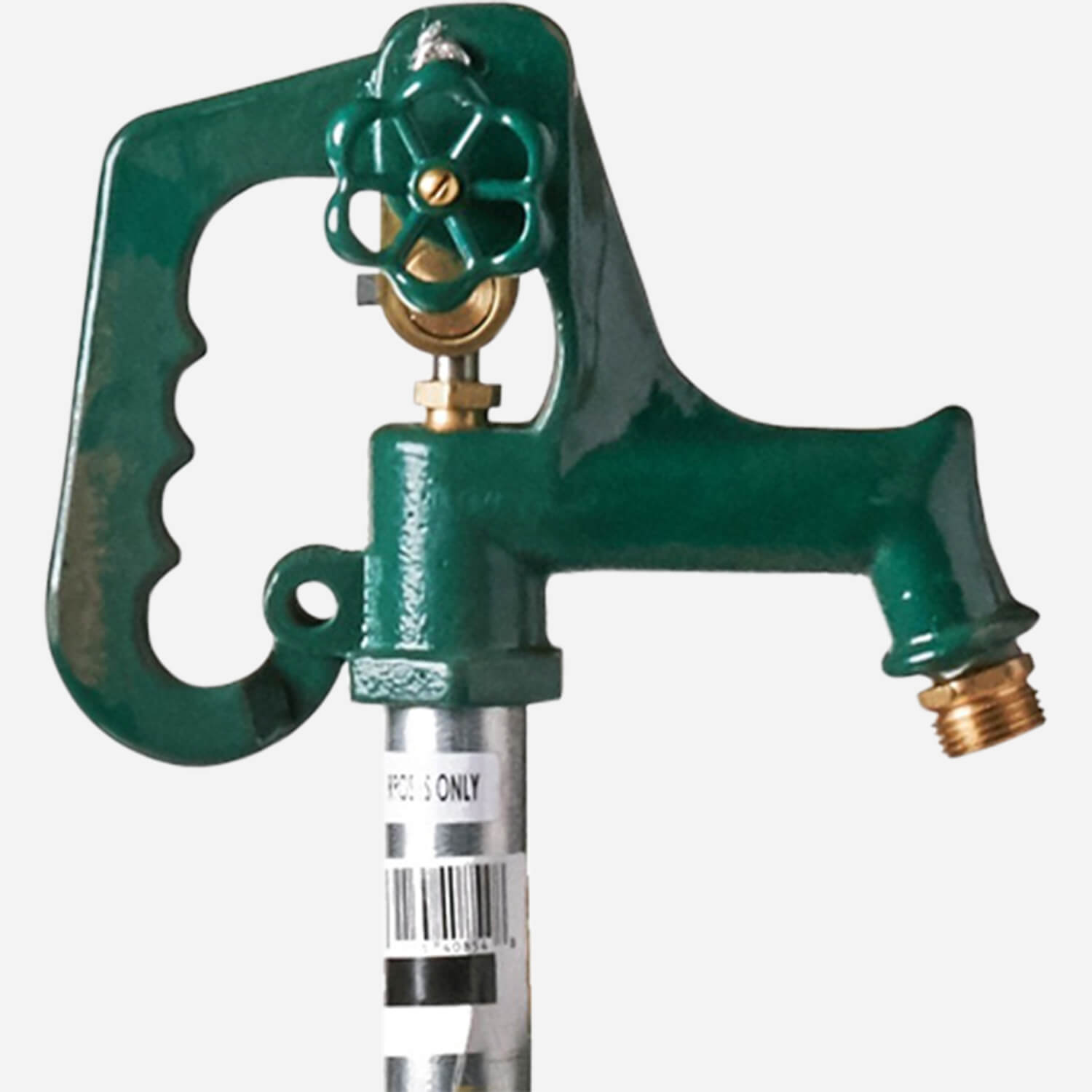

For freeze-resistant reliability in all climates where water must not drain from within the hydrant into the ground, the valve and 3/4" brass inlet of this post hydrant is positioned below the frost line. Clean water is channeled to the hydrant's above ground cast iron head and 3/4" hose connection through a rugged galvanized pipe. After use, the galvanized pipe drains into a sealed stainless steel canister protecting the pipe from bursting system water safe from contamination. All working parts are field serviceable and easily accessed from the top of the hydrant.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Vacuum Breaker -H, (2) 3/8” (10) Tappings -TAP
  • Product Type
    Hydrant
Technical Drawings
DWG 5904 HydrantDWG 5904 HydrantDWG129 KB
Literature / Videos
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB
5904 Hydrant (hi res jpg)Non-Freeze Sanitary Post/Yard HydrantsJPG542 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Parts Order Guide for HydrantsParts Order Guide for HydrantsPDF3 MB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
