Figure Number: 5950
Contact a Representative

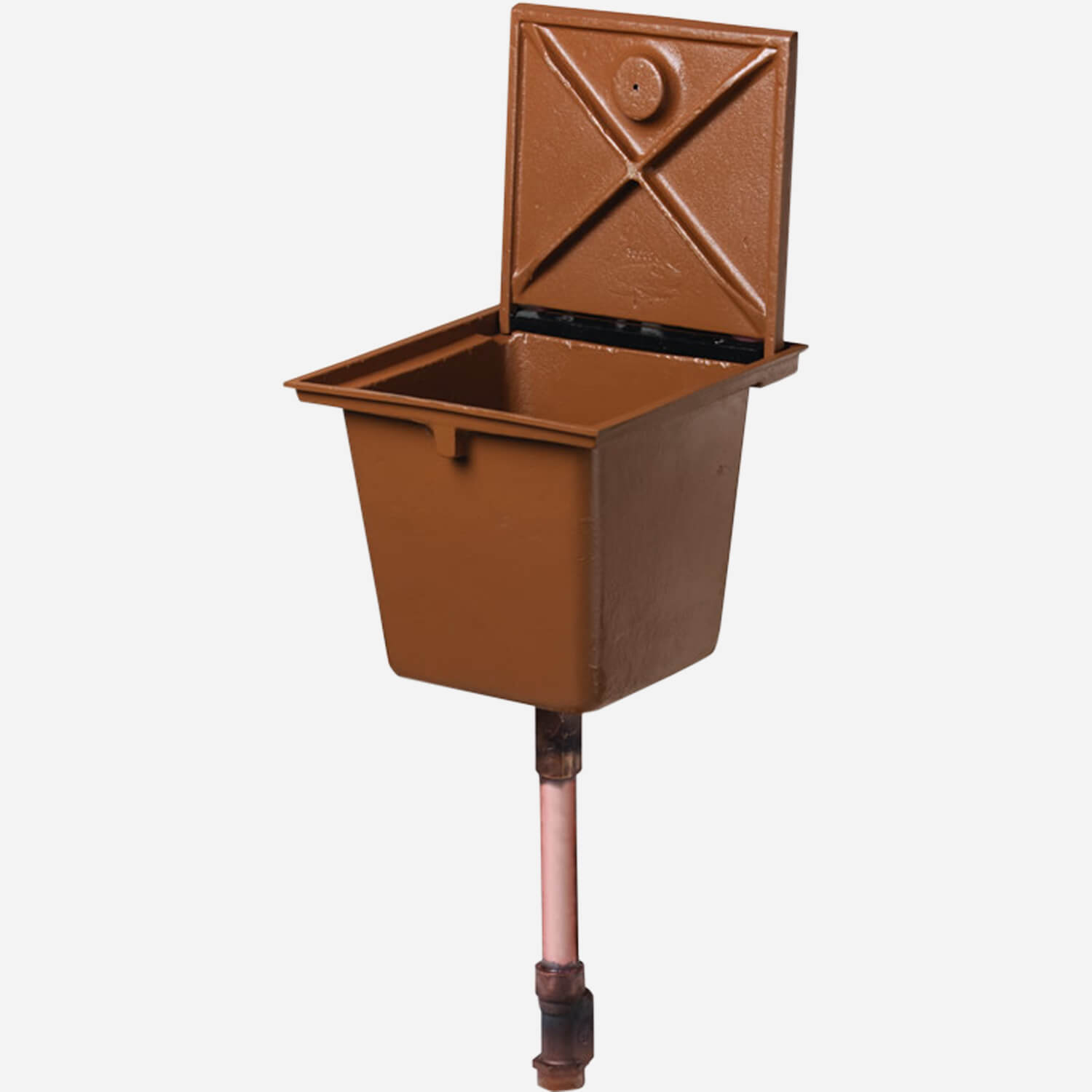

5950Box Type Non-Freeze Post Hydrants with Heavy Duty Cover

Designed for cold climate installation flush with adjacent surfaces, the traffic resistant cast iron lid protects a deep cast iron box. Inside is a bronze 3/4" hose connection and valve screw that opens the valve with the included "T" handle key. The hydrant's valve stem, and plunger extend below the frost line in a bronze casing capped by a 3/4" inlet that. The casing drains after use, ensuring freeze-proof operation. All working parts are field serviceable and easily accessed from the top of the hydrant.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    1"(25) Hose Connection -HC1 - Adaptor, 1/8"(3) NPT Drain Hole -NV - in Box, 1/8"(3) NPT Drain Hole -NV - in Valve Housing, Cover Cast with Words "Water" -W, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Polished Bronze -PB - Box Face, Nickel Bronze -NB, Rough Bronze Box Face -RB
  • Product Type
    Hydrant
SubmittalSubmittal 5950 Hydrant
View
Technical Drawings
RFA 5950 HydrantRFA 5950 HydrantRFA252 KB
Literature / Videos
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB

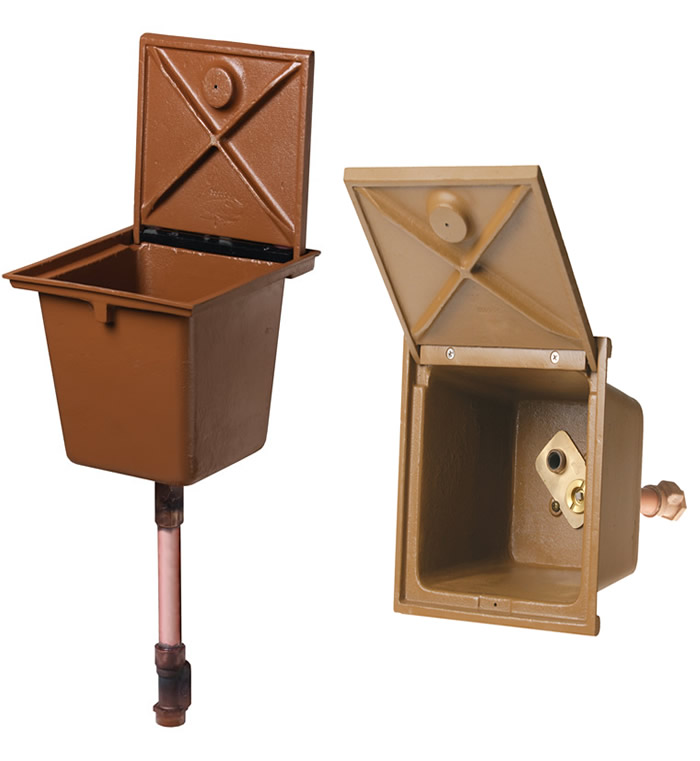

5950/5951 - Box Hydrants with Heavy Duty Cover (hi res jpg)JPG57 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Parts Order Guide for HydrantsParts Order Guide for HydrantsPDF3 MB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Can't find what you are looking for? Get in touch
  • 5951 1"(25) Inlet
