Figure Number: 2310 and 2315
Contact a Representative

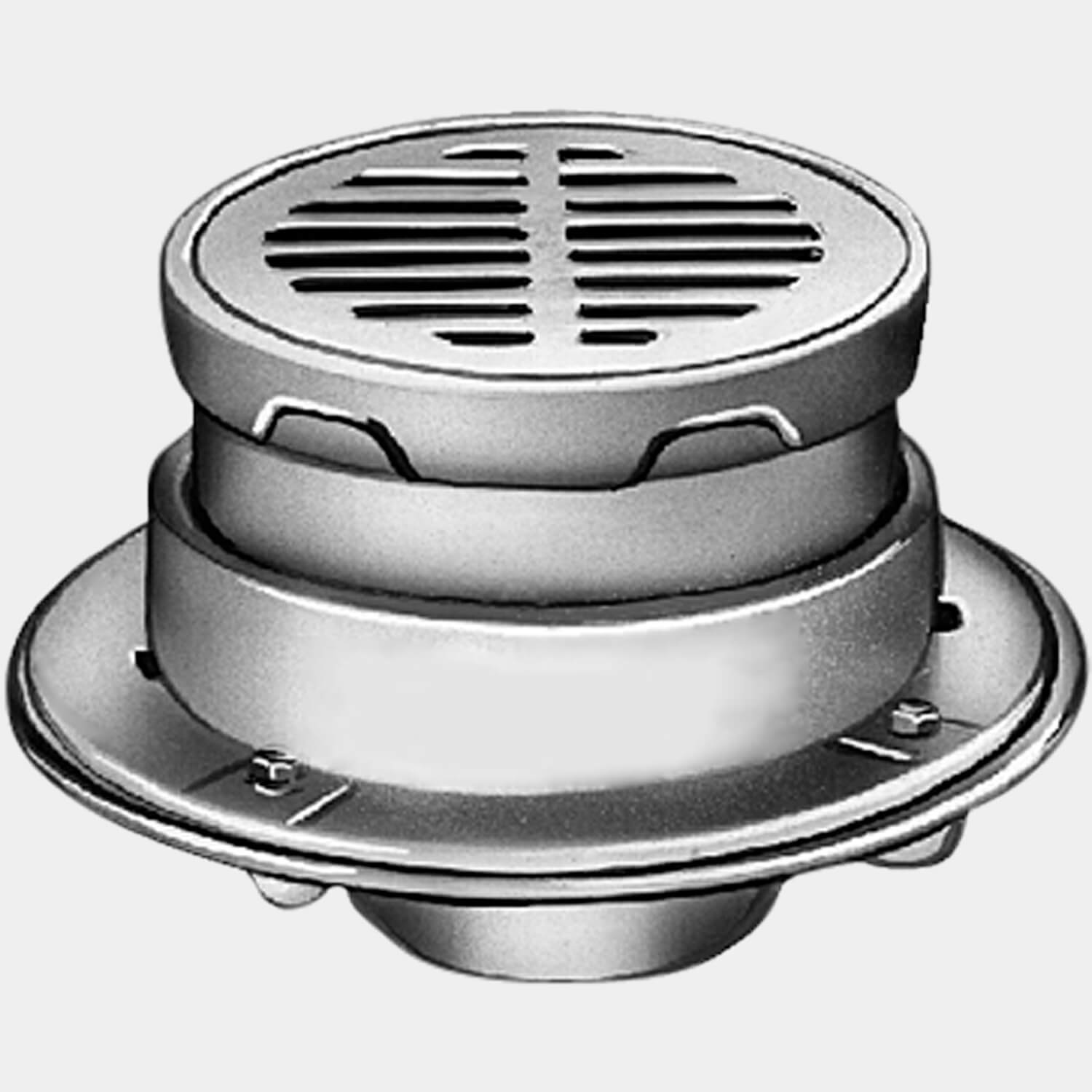

2310 and 2315Medium Duty Drains with Round Adjustable Tops

The adjustable 8.5" bar grate of this medium duty Duco cast iron drain will support loads up to 4,999 lbs/2,250 kg. The top is also adjustable, allowing easy and accurate leveling of the bar grate with adjacent flooring to prevent tripping and other hazards.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Vandal Proof Grate - U, Extension -E - (Specify Height), T Threaded Outlet, Square Top -S, Hinged Grate -H, T-Threaded Outlet, Closure Plug -XP (Fig. 2310 only), Flat Bottom Strainer -FBS (Fig. 2310 only), L Speedi-Set Service Weight (Fig. 2310 only), LXH Speedi-Set Extra Heavy (Fig. 2310 only), NO-HUB Adaptor (Specify Fig. 2646Y) (Fig. 2315 only), Trap Primer Connection -P050 1/2"(13) & -P075 (3/4"(19), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Nickel Bronze Top - NB, Polished Bronze Top - PB, Ductile Iron Grate - M, Galvanized Cast Iron Body -G, Stainless Steel (Specify Fig. 9725)
SubmittalSubmittal 2310, 2315 Floor Drain (pdf)
View
Technical Drawings
2310, 2315 Floor Drain (dwg)Medium Duty Floor Drains with 8-1/2" Round Adjustable Tops [Bottom Outlets 2310C | Caulked, 2310T | Threaded, 2310Y | No-Hub; Side Outlet 2315C | Caulked, 2315Y | No-Hub]DWG337 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Can't find what you are looking for? Get in touch

Duco Cast Iron Body and Flashing Collar with Adjustable Top and Slotted ADA Grate

Bottom Outlet
2310C | Caulk Outlet
2310T | Threaded Outlet
2310Y | No-Hub Outlet
Specify outlet pipe size 02"(50), 03"(75), 04"(100), 05"(125), 06"(150)

Side Outlet
2315C | Caulk Outlet
2315T | Threaded Outlet
Specify outlet pipe size 02"(50), 03"(75), 04"(100)
