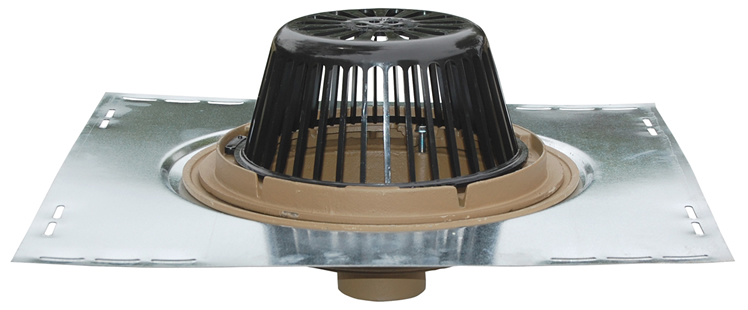

Large Roof Drain with Low-Profile Dome and Deck Plate

Shows specifications for standard configuration. Configuration options may change specifications.

Variations
L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1010 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1010 Only), T Threaded Outlet, Extension -E - (Specify Height), Secondary Flashing Clamp -C2, Vandal Proof - Dome - U
Optional Materials
Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron Dome -CIDG, Galvanized Cast Iron Collar -CG, Rough Bronze Dome -RBD, Stainless Steel -SS - (Specify Fig. 9780)
Product Type
Roof Drain

SubmittalSubmittal 1010-RDP Roof Drain (pdf)

Technical Drawings

1010-RDP Roof Drain (dwg)

Large Roof Drain with Low-Profile Dome and Deck Plate [1010C-RDP | Caulk Bottom Outlet; 1010Y-RDP | No-Hub Bottom Outlet]

DWG68 KB

Literature / Videos

Specifications for Roof Drains	Specifications for Roof Drains	DOC230 KB
Contractor Labor Saving Products Brochure (pdf)	Contractor Labor Saving Products Brochure (pdf)	PDF6 MB
1010-RDP Roof Drain (hi res jpg)	Large Roof Drain with Low-Profile Dome and Deck Plate	JPG97 KB
Technical Data for Roof Drains	Technical Data for Roof Drains	PDF2 MB
Engineering Newsletter: Vol. 3, Issue 2 (March 2013)	Fig. Nos. 1010 and 1080 Large-Capacity Roof Drains	PDF2 MB
Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	PDF120 KB
