1935Green Roof Planter Drain Basin

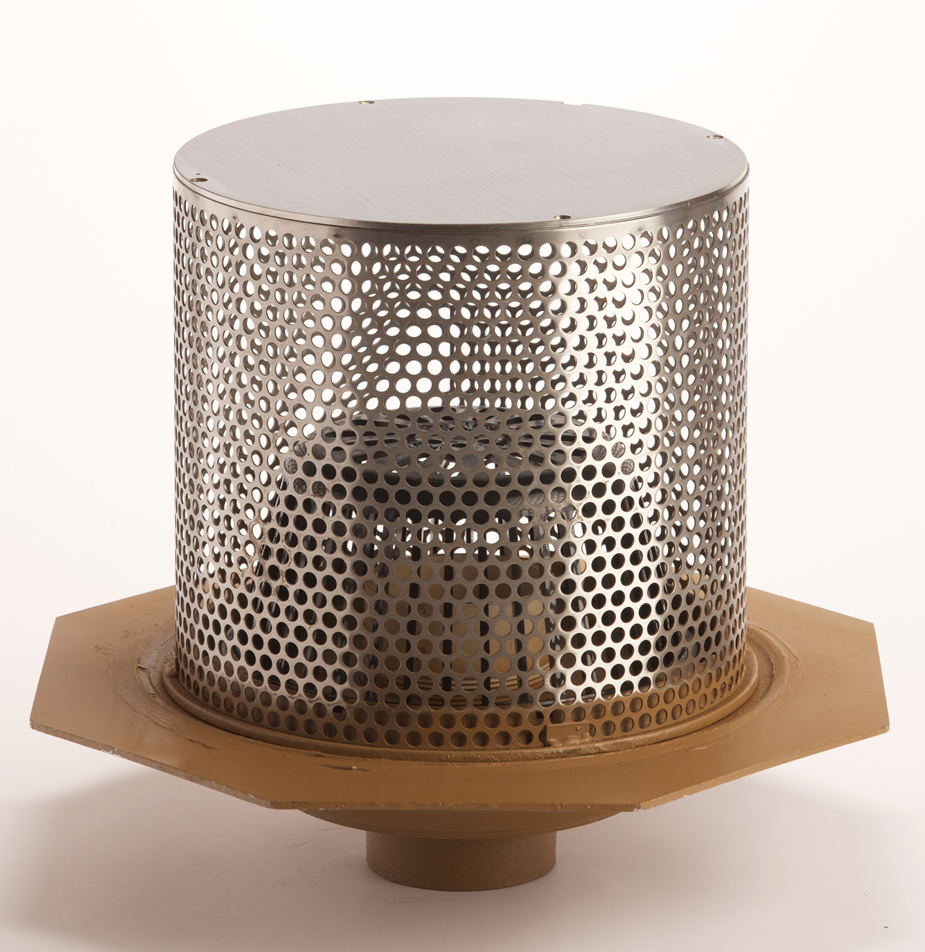

Designed for placement in planting areas of green roof systems, The Figure 1935 Duco coated cast iron drain basin is doubly protected against debris by a secured, perforated, stainless steel 13-1/8" diameter gravel stop and a polyethylene dome. It is fitted with a 20" (diameter combination gravel stop and flashing clamp for leak free installation in roof decking.

A compact drain is also available featuring a secured, perforated, stainless steel 7-5/8" diameter gravel stop and a polyethylene dome. It features a duco cast iron body with a 8-1/2" Opening. It is available with a bottom (Figure 1940) or side outlet (Figure 1950),

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Adjustable Extension -AE, Expansion Joint (Specify Fig. 1710), Extension -E - (Specify Height), Underdeck Clamp -C, Roof Deck Plate -RDP, Vandal Proof Cover -U, Sump Receiver -R, NO-HUB Adaptor (Specify Fig. 2646Y) (Fig. 1950 only), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight (Fig. 1940 only), LXH Speedi-Set® Extra Heavy (Fig. 1940 only), Vandal Proof Gravel Stop -U (Fig. 1935 only), L Speedi-Set® Service Weight 02(50), 03(75) & 04(100) sizes only (for Fig. 1935)
  • Optional Materials
    Bronze Standpipe -BZS, Cast Iron Standpipe -CIS, Galvanized Cast Iron -G - Body & Collar, Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron Dome -CIDG, Rough Bronze Dome -RBD
  • Product Type
    Roof Drain
SubmittalSubmittal 1935 Roof Drain (pdf)
View
Technical Drawings
1935 Drain (dwg)Green Roof Drain/Planter Drain 13-1/8" Diameter Gravel Stop, 20" Diameter Wide Flange Body [1935C | Caulk Bottom Outlet; 1935Y | No-Hub Bottom Outlet]DWG106 KB
1940, 1950 Roof/Planter Drain (dwg)Green Roof/Planter Drain 8-1/2" Diameter - Low Profile Dome [1940C | Caulk Bottom Outlet; 1940Y | No-Hub Bottom Outlet; 1950C | Caulk Side Outlet; 1950Y | No-Hub Side Outlet]DWG236 KB
1935 Roof Drains (rfa)Green Roof Drain/Planter Drain 13-1/8" Diameter Gravel Stop, 20" Diameter Wide Flange Body [1935C | Caulk Bottom Outlet; 1935Y | No-Hub Bottom Outlet]RFA2 MB
Literature / Videos
Submittal 1940, 1950 Roof-Planter Drain (pdf)Green Roof/Planter Drain 8-1/2" Diameter - Low Profile Dome [1940C | Caulk Bottom Outlet; 1940Y | No-Hub Bottom Outlet; 1950C | Caulk Side Outlet; 1950Y | No-Hub Side Outlet]PDF540 KB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Green Roof and Cool Roof Drains Brochure (pdf)Brochure Green Roof and Cool Roof DrainsPDF2 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
1935 Drain (hi res jpg)Green Roof Drain/Planter Drain 13-1/8" Diameter Gravel Stop, 20" Diameter Wide Flange Body [1935C | Caulk Bottom Outlet; 1935Y | No-Hub Bottom Outlet]JPG502 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Can't find what you are looking for? Get in touch

Green Roof Drain/Planter Drain
13-1/8" Diameter Gravel Stop, 20" Diameter Wide Flange Body
1935C | Caulk Bottom Outlet
1935T | Threaded Bottom Outlet
1935Y | No-Hub Bottom Outlet

Green Roof Drain/Planter Drain
8-1/2" Diameter Duco Cast Iron Body; 7-5/8" Diameter Gravel Stop
1940C | Caulk Bottom Outlet
1940T | Threaded Bottom Outlet
1940Y | No-Hub Bottom Outlet

1950C | Caulk Side Outlet
1950T | No-Hub Side Outlet
