Fluid Controls® Trap Priming Valve Products Fluid Controls® Trap Primer Valves & Accessories

Year-End Smith Fluid Controls® Promo

Promotion applies only to orders of Smith Fluid Controls® products placed between September 1, 2023 and December 31, 2023. Once purchases of products in the Smith Fluid Controls line reach $5000, a 5% rebate will apply. Orders must be placed with your local representative.

Get Exclusive Videos!

The Smith Fluid Controls® product line offers unique solutions to common and uncommon problems faced by industries that rely on trap primer valves. Subscribe today to gain access to our full playlist of informative videos showcasing these ingenious products.


View by Category


Trap Primers

Trap-Defender® Trap Priming Valve, Fig. 2694
Electronic Trap Primer

A trap seal primer is a flow control valve that adds water to a P-trap to maintain a water seal, preventing sewer gases from entering a building. There are two types of trap primer valves in our Fluid Controls® product line—The Trap-Defender® Pressure Drop-Activated Trap Primer and Electronic Trap Primers.


Pressure-Drop Trap Primer

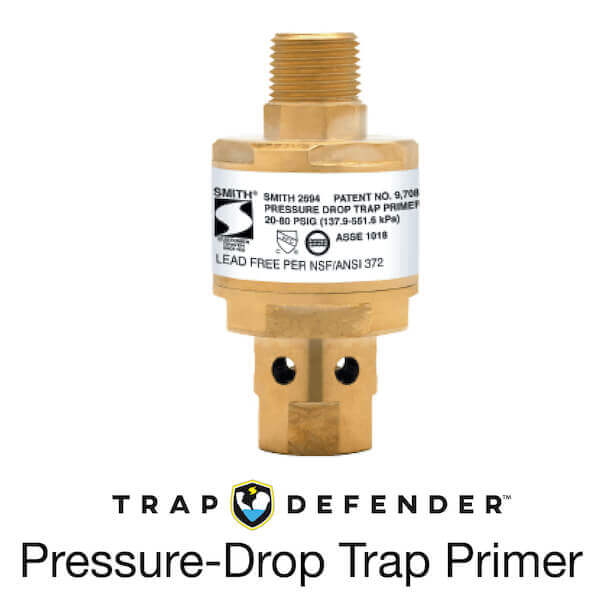

Pressure-Drop Trap Primer Valve

Pressure-Drop Trap Primer Pressure-Drop Trap Primer - 3 Year Warranty - 3 PSI Activation

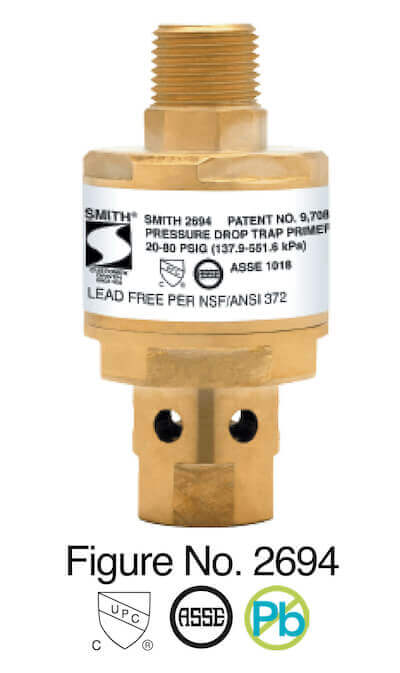

Trap-Defender® is a pressure drop-activated trap primer designed to be connected to any potable cold water line. When a valve or faucet is opened and the system experiences as little as a 3 PSI drop in pressure, water is released into the floor drain’s P-trap to maintain the water seal.

Variations:

  • Figure No. 2694-UN 1/2" NPT Union
  • Figure No. 2694-SW 1/2" Sweat Union

Optional Finishes:

  • Chrome-Plated (-CP)
  • Nickel-Plated (-NP)

Trap-Defender Features:

  • Fully automatic flow control valve; no adjustments needed
  • Activates at a pressure drop of just 3 PSI
  • Operates at pressures from 20–80 PSI
  • With no moving parts, Trap-Defender eliminates the friction associated with pistons or O-rings, greatly increasing the device’s sensitivity and providing better performance when low-flow valves are present
  • Patent No. 9,708,808; Patent No. 10,190,306
  • Three-year warranty
  • Lead-free

View Product Page

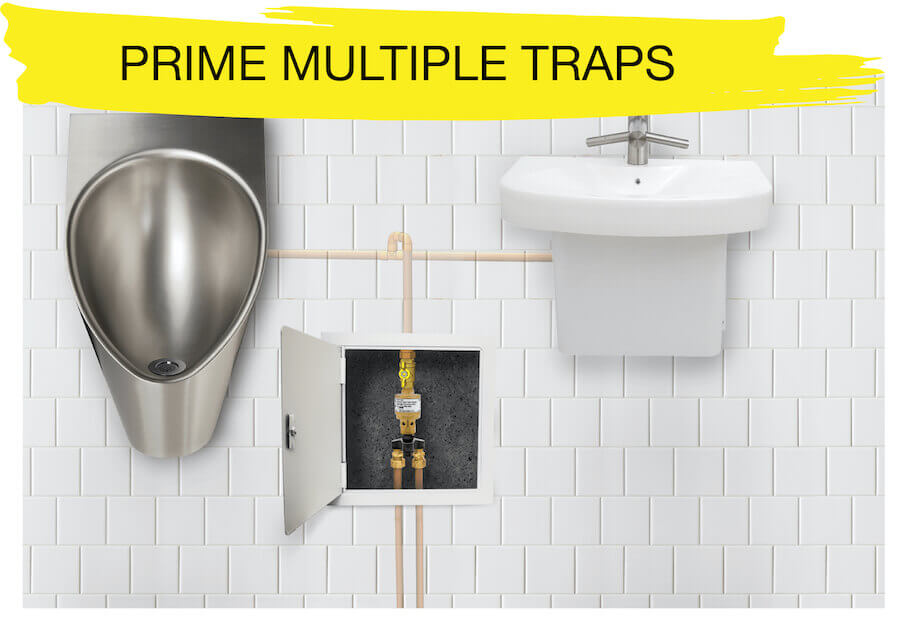

Distribution Unit Primes Up to Four Traps

Prime up to four traps with the use of a distribution unit (Fig. No. 2694DA • Fig. No. 2683)


Electronic Trap Primers

Electronic Trap Primer Valve

Electronic Trap Primers

Electronic Trap Primers deliver a timed injection of water to the floor drain P-traps to ensure the traps maintain their water seal.

Tested to ASSE 1044, conforms to UL & CSA standards.

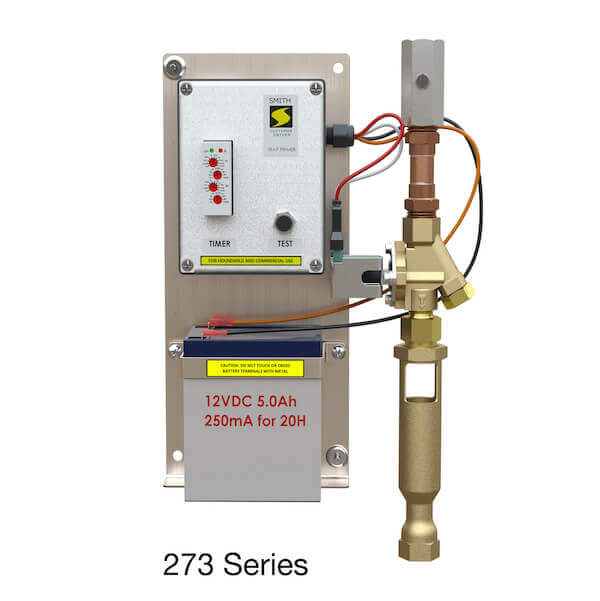

Singular Trap Primer Features:

Singular electronic trap primers can be used to prime 1 to 4 floor drain traps.

  • An optional distribution unit can be specified when more than one trap is to be primed
  • A factory pre-set, adjustable timer is programmed to provide a water injection to the trap every 24 hours
  • Units can be hardwired or operated on a battery pack
  • Unit includes solenoid valve, brass air gap, timer module, and control box
  • Battery pack can be charged with standard wall transformer (not included)

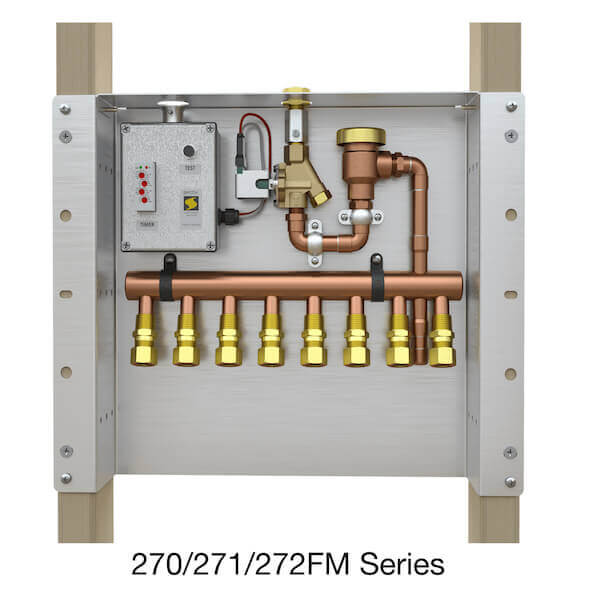

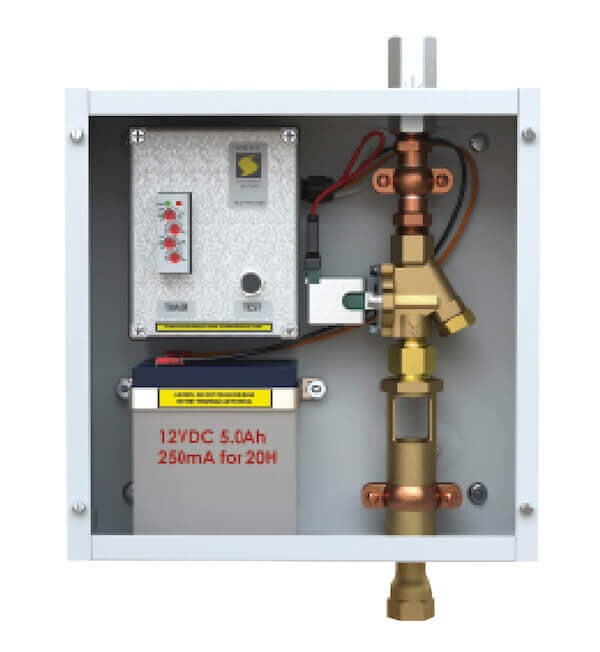

Flush-Mounted/Recessed (-FM) Trap Primers:

Flush-mounted/recessed electronic trap primers sit flush with the finished wall.

  • A multi-port outlet assembly primes 4 to 36 traps
  • A factory pre-set, adjustable timer is programmed to provide a water injection to the trap every 24 hours
  • The recessed steel mounting enclosure fits between 16-inch studs
  • An optional solid cover or access door cover, shut-off valve, solenoid valve, control box, atmospheric vacuum breaker, and copper manifold are provided

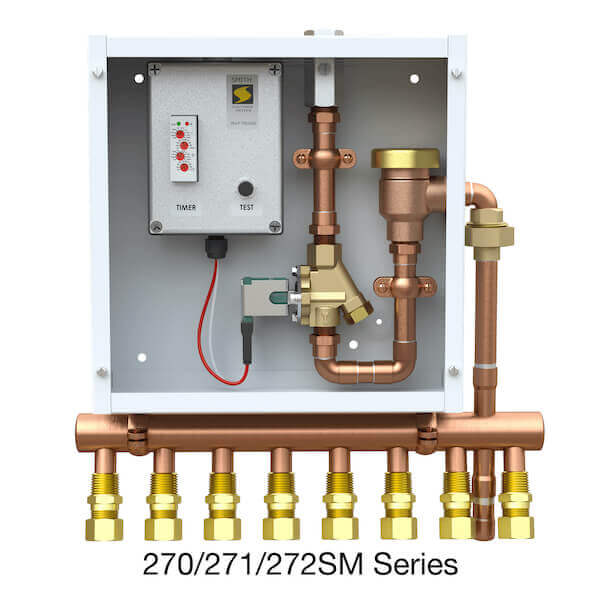

Surface-Mounted (-SM) Trap Primers:

Surface-mounted electronic trap primers sit on the finished wall.

  • A multi-port outlet assembly primes 4 to 36 traps
  • A factory pre-set, adjustable timer is programmed to provide a water injection to the trap every 24 hours
  • A steel NEMA Type 1 surface mounted enclosed box, shut-off valve, solenoid valve, control box, atmospheric vacuum breaker, and copper manifold are provided
Push-In Connections (-CTS):

CTS Series electronic trap primers are available in surface-mounted and flush-mounted varieties.

  • A multi-port outlet assembly primes 4 to 36 traps.
  • A factory pre-set, adjustable timer is programmed to provide a water injection to the trap every 24 hours
  • Units are provided with a recessed or surface-mounted enclosure, optional recessed cover, shut-off valve, solenoid valve, control box, atmospheric vacuum breaker, and copper manifold
  • The CTS option provides push-in connections for faster installation

  Jump to top of page


Distribution Units

Cloverleaf-Style Distribution Unit
Branch-Style Distribution Unit

Distribution units allow a single trap primer to service up to four traps by evenly dividing the flow of water among them. Two styles of distribution units are offered in the Smith Fluid Controls® product line: Cloverleaf Style and Branch Style, each with its own unique benefits.

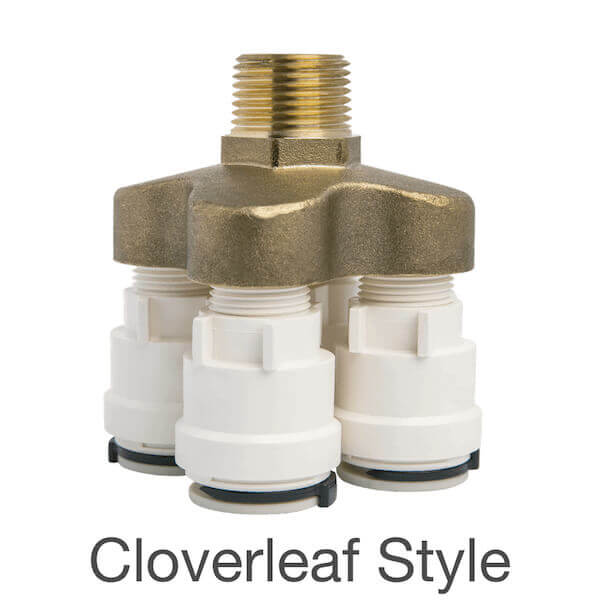

Cloverleaf-Style Distribution Unit

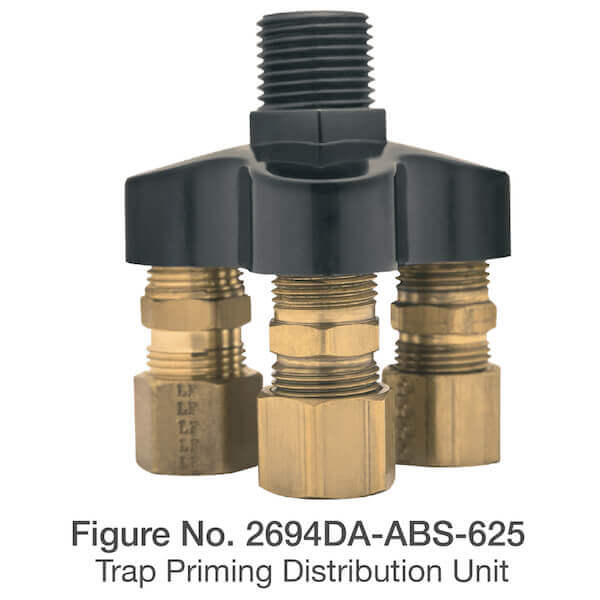

Trap Priming Valve Distribution Unit, Fig. 2694DA

Cloverleaf-Style Distribution Unit

The cloverleaf-style trap primer distribution unit simply and effectively primes up to four floor drains with only one trap priming valve. Unit must be installed level.

  • Water leaving the trap primer is divided evenly among outlets
  • A variety of outlet types are available: push-in compression and threaded connection
  • Lead-free brass or ABS finish
  • Patent No. 10,066,378

Cloverleaf-Style with Push-In

Cloverleaf-Style with Push-In

Push-in fittings save labor by eliminating the need for traditional, labor-intensive methods of connecting pipe to fittings. With a push-in fitting, the installer simply pushes the pipe into the fitting to complete the connection.

View Product Page

Trap Priming Valve Distribution Unit, Fig. 2694DA-CTS

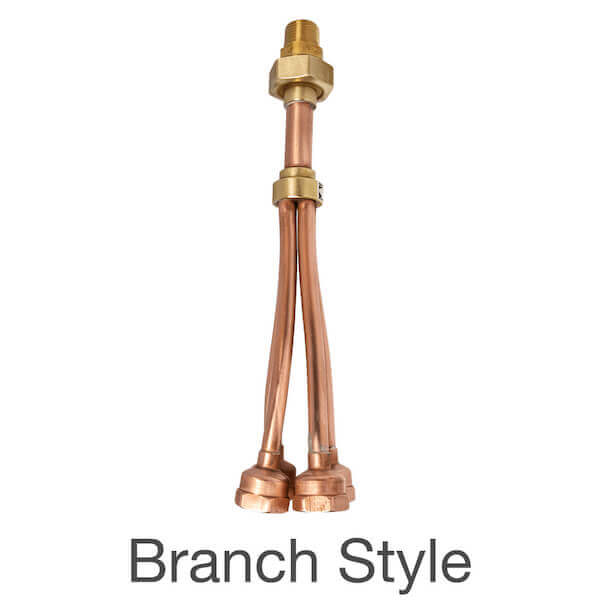

Branch-Style Distribution Unit

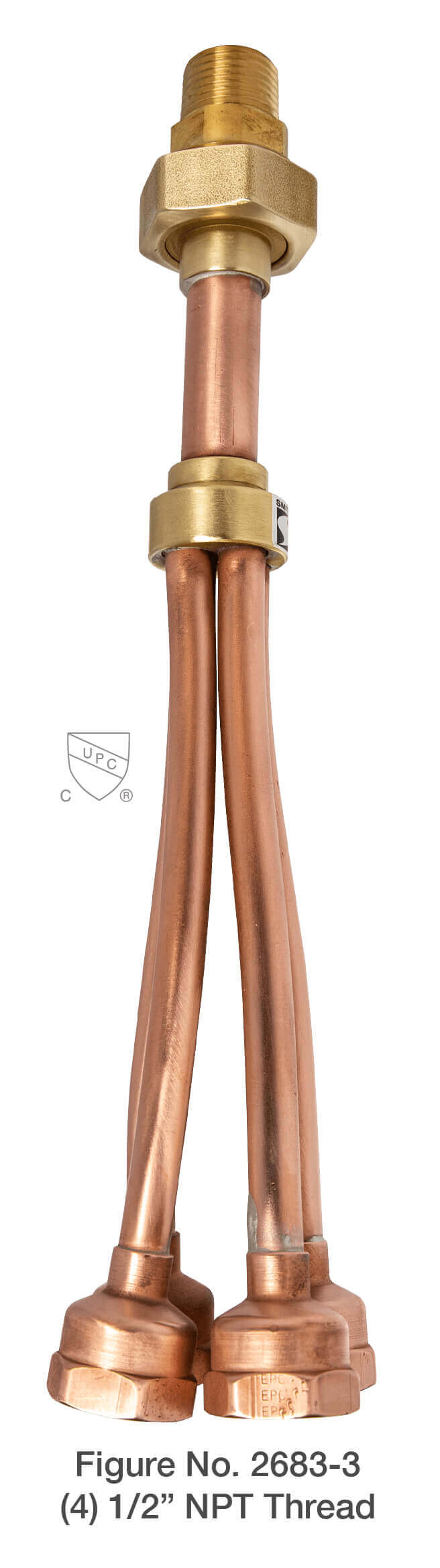

Trap Primer Valve Distribution Unit, Fig. 2683-3

Branch-Style Distribution Unit

The branch-style trap primer distribution unit simply and effectively primes up to four floor drain traps with one trap priming valve.

  • Branches are flexible for ease of connection
  • Water leaving the trap primer is divided evenly among branches
  • A variety of connection types are available

View Product Page

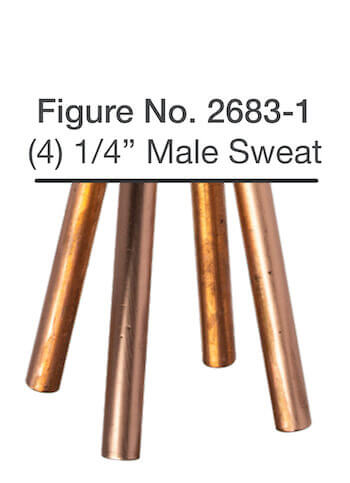

Trap Priming Valve Distribution Unit, Fig. 2683-1

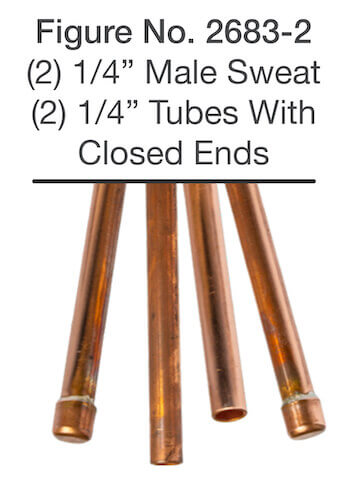

Distribution Unit for Trap Primer Valves, Fig. 2683-2

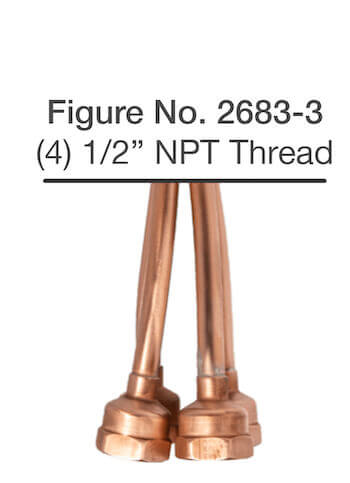

Trap Priming Valve Distribution Unit, Fig. 2683-3

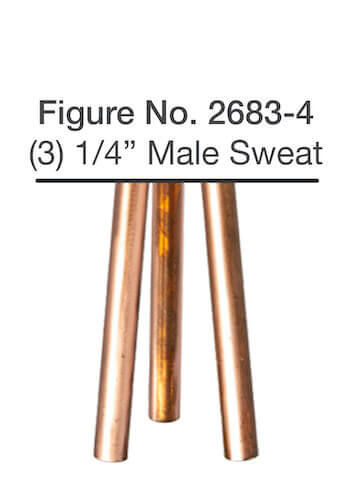

Distribution Unit for Trap Primer Valves, Fig. 2683-4

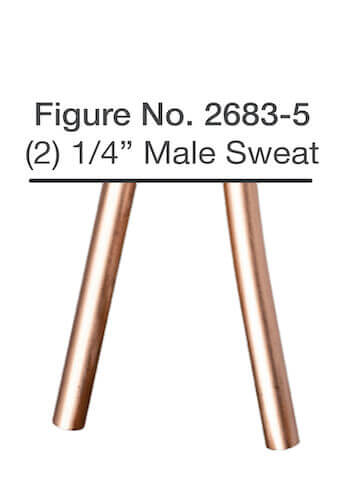

Trap Priming Valve Distribution Unit, Fig. 2683-5

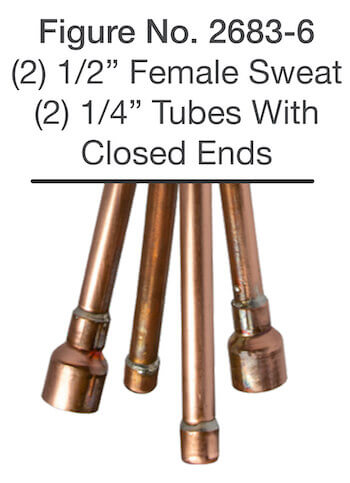

Distribution Unit for Trap Primer Valves, Fig. 2683-6

  Jump to top of page


Trap Primer Adapters

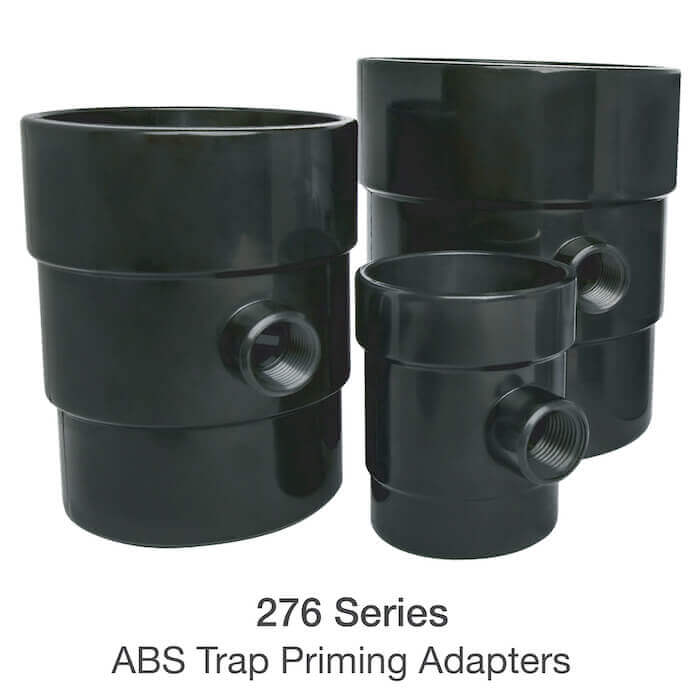

ABS Trap Primer Adapters

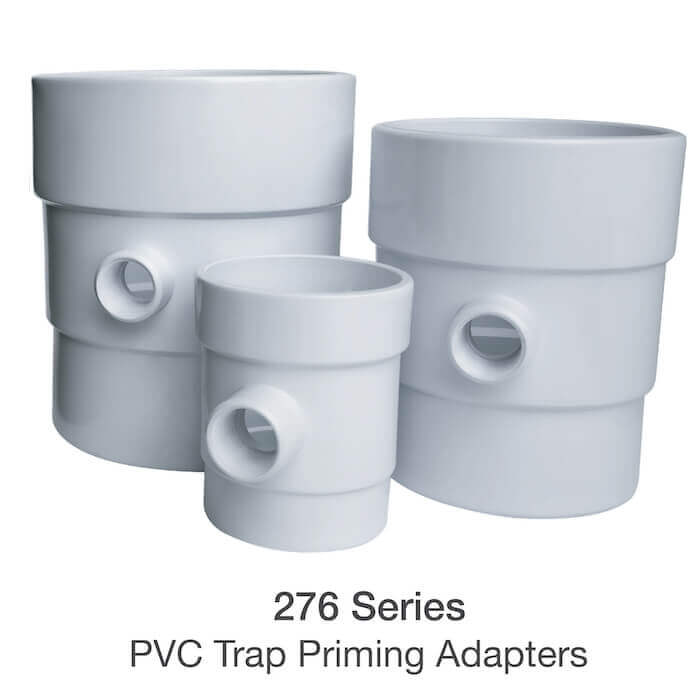

PVC Trap Priming Adapters

Trap Priming Adapter Features

Adapter Features

Trap primer adapters are installed on the floor drain outlet prior to the P-trap.

  • Provides a trap primer connection when the floor drain and P-trap are not tapped
  • Allows a fitting the flexibility to be rotated in any direction prior to bonding, offering a quick and cost-saving installation
  • Includes a 1/2" or 5/8" brass compression fitting as selected
  • Available in PVC or ABS
  • Available in 2", 3", or 4" sizes

  Jump to top of page


Air Gap Fittings & Backflow Prevention

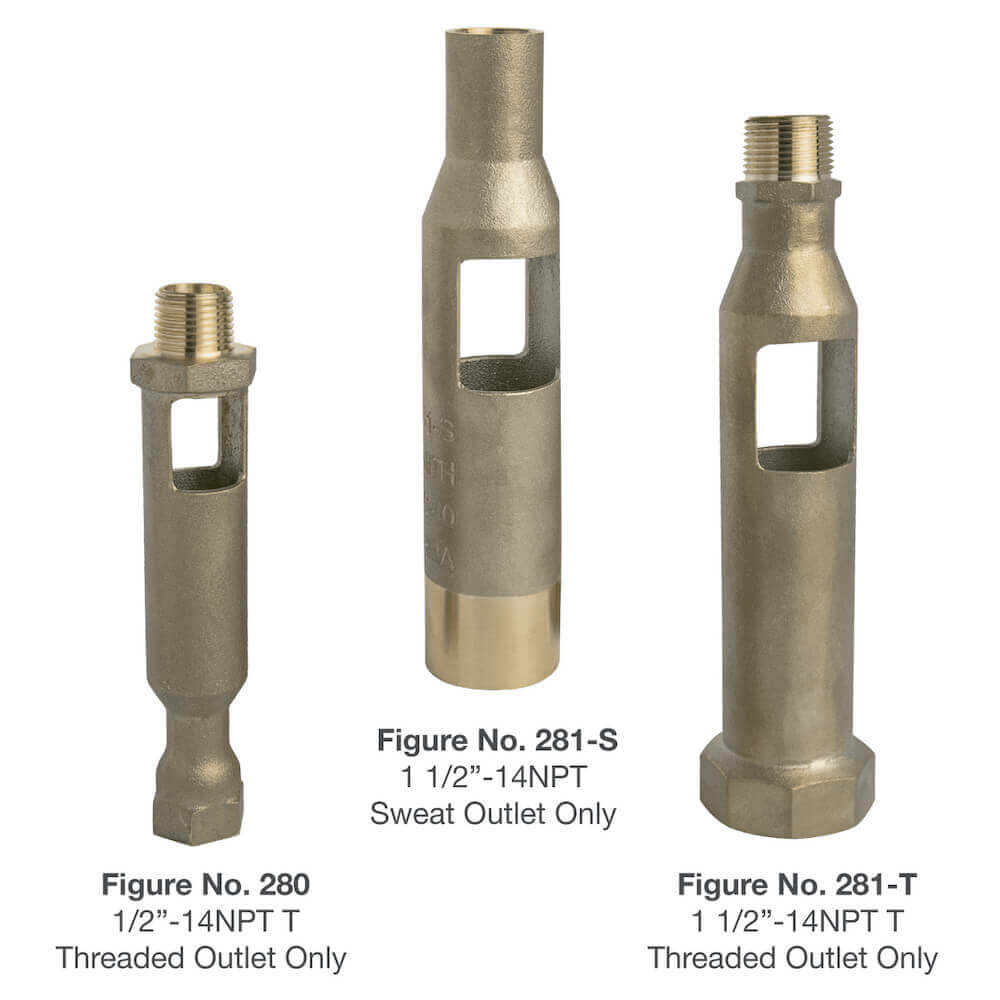

Air Gap Backflow Preventer

Required by code to prevent backflow contamination of the potable water system, air gaps are vertical breaks between the supply pipe and the receiving source.

Air Gap Backflow Prevention Features

Air Gap Backflow Preventer Features

  • Lead-free cast brass construction
  • Available in threaded or sweat connections
  • Optional finishes in chrome-plated brass (-CP) and nickel-plated brass (-NP)

View Product Page

  Jump to top of page


Dielectric Unions

Smith dielectric unions feature an exclusive steel-to-plastic design to protect the plumbing system against corrosion and leakage.

Dielectric Union Features

Dielectric Union Features

  • Durable, zinc-coated steel with polypropylene lining interrupts electrical current where dissimilar metals are connected, preventing pipe corrosion and eventual leakage
  • Metal-to-metal joint design maintains external electrical continuity, preventing corrosion due to stray current caused by grounding of direct current sources—e.g., phone systems and appliances
  • Available in three connection types for flexible installations
  • Compliant to ASTM F1545-15a

View Product Page

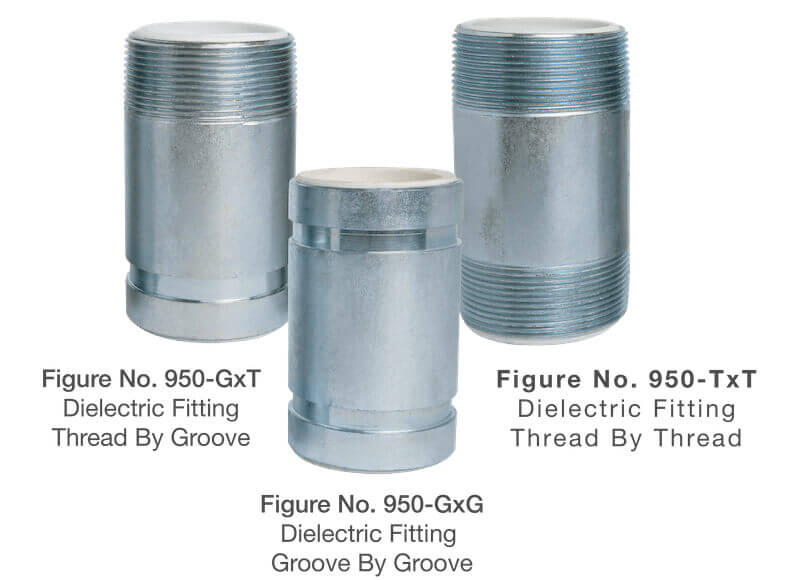

Dielectric Union Connection Types

  Jump to top of page


Water Hammer Arrestors

Water Hammer Arrestors
Certification Logos - UPC, ASSE, Lead-Free, PDI

Water hammer arrestors control the pounding noises and vibration which develop in the pipes when the flow of water abruptly stops or changes direction.

Water Hammer Arrestor Features

Water Hammer Arrestor Features

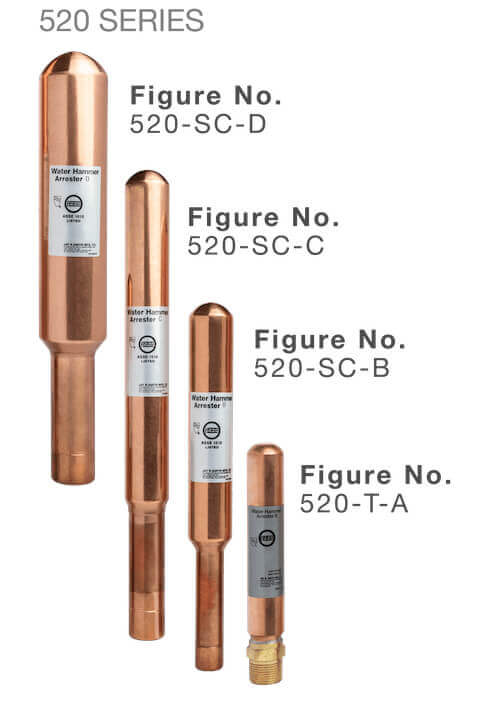

520 Series

Our piston-type water hammer arrestors are fabricated of lead-free copper, rated for 60 PSI, and comply with ASSE/ANSI 1010 and PDI WH-201. Pipe sizes (CTS and NPT) range from 1/2" up to 2". Available in both threaded (-T) and sweat (-SC) connections.

View Product Page

  Jump to top of page


Access Panels

Access doors allow easy entry for plumbing components installed behind the finished wall, like trap primer valves or water hammer arrestors, when the times comes for service and maintenance.

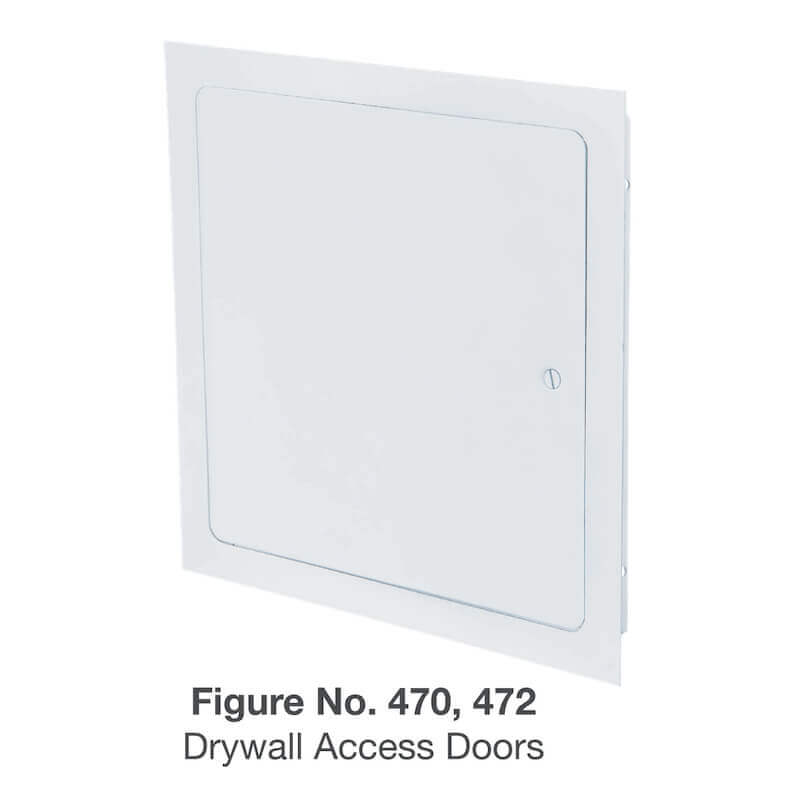

Drywall Access Door

Drywall Access Panels

Drywall Access Doors

This drywall access door and frame is ideally suited for both new installations and remodeling in masonry, tile, wood, or other wall and ceiling surfaces.

  • 16GA galvannealed steel construction with a prime coat finish suitable for painting
  • Rounded safety corners and a rod hinge up to 24"; sizes 24" and larger feature a concealed piano hinge
  • One-piece frame has no miters or welds on the face
  • Screwdriver-operated latch

View Product Page

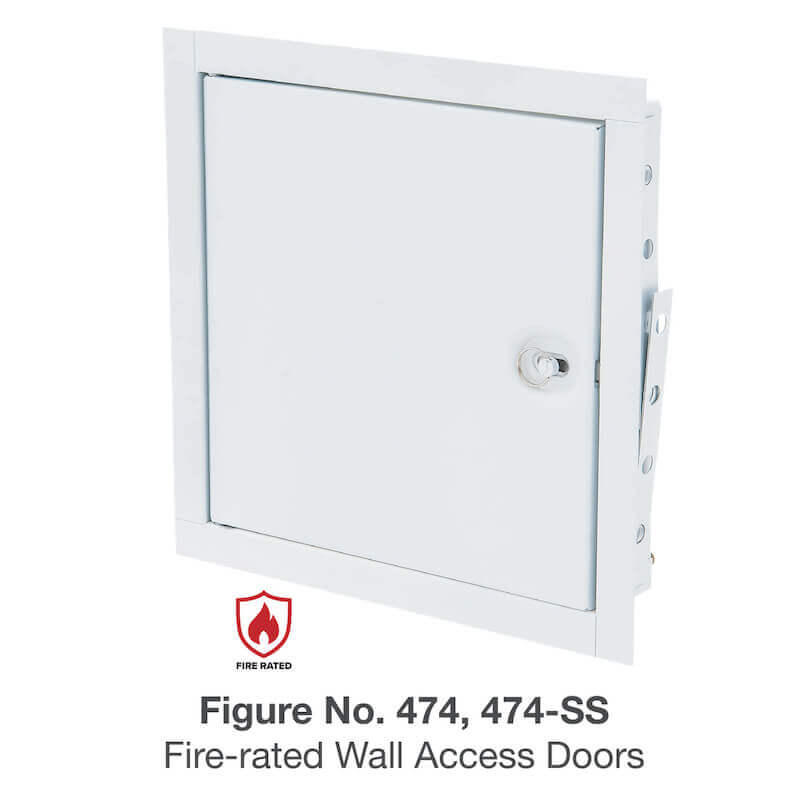

Fire-Rated Access Door

Fire-Rated Access Panels

Fire-Rated Access Doors

This access door is fire-rated by Underwriters Laboratories, Inc., for 1-1/2 hours, “B” Label, ANSI-UL 10B standard, and CAN/ULC S104 for 2 hours in walls.

  • 16GA galvannealed steel construction with a prime coat finish suitable for painting
  • Concealed hinge and heavy-duty spring provide positive latching when closed
  • Interior latch release slide enables the door to be opened from the inside
  • For wall installation only

View Product Page

  Jump to top of page

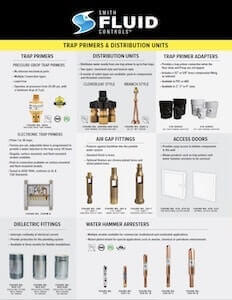

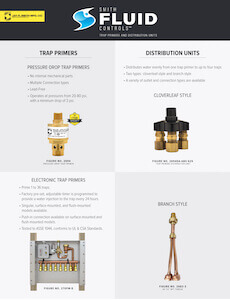

Fluid Controls Literature
