Figure Number: DX2565
Contact a Representative

DX2565Wide Flange Floor Drains "Safe-Set®" Bucket

The 17" diam. wide flange of this drain is engineered to create a watertight seal with waterproof deck coverings. Its Safe-Set® design guarantees proper realignment of its sediment bucket after cleanout ensuring that attached drainage systems remain debris free. This Duco cast iron light-duty drain is available in several configurations.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Membrane Clamp, NO-HUB Adaptor, Securing Holes -SH, Vandal Proof Grate - U, Y NO-HUB - Outlet, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal DX2565 Floor Drain
View
Technical Drawings
DX2565 Floor Drain CAD DrawingFloor Drains - Wide-Flange Bodies with Safe-Set® Bucket [14.25" Square x 4" Height with 7.75" Diameter Top DX2565C; DX2565T] [20" Diameter x 8.75" Height with 12.25" Diameter Top DX2566C; DX2566T]DWG66 KB

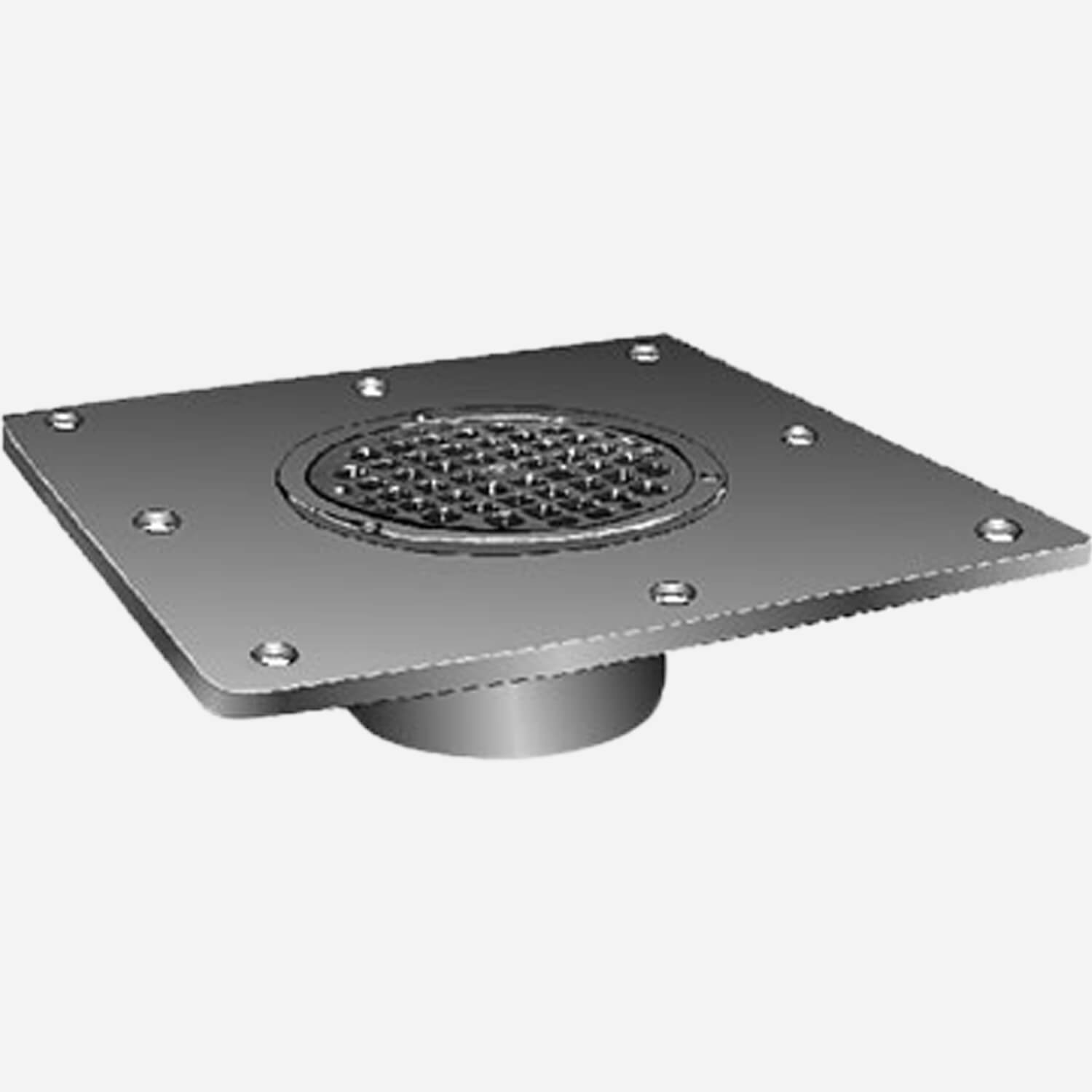

DX2568 Floor Drain CAD DrawingFloor Drains - Square Flange with Nickel Bronze Tractor Grate for use with Waterproof Deck Covering for Wood Deck or Concrete Construction [DX2568C | Caulk Outlet; DX2568T | Threaded Outlet]DWG48 KB
DX2565 Floor Drain Revit DrawingFloor Drains - Wide-Flange Bodies with Safe-Set® Bucket - 14.25" Square x 4" Height with 7.75" Diameter Top [DX2565C | Caulk Outlet; DX2565T | Threaded Outlet]RFA392 KB

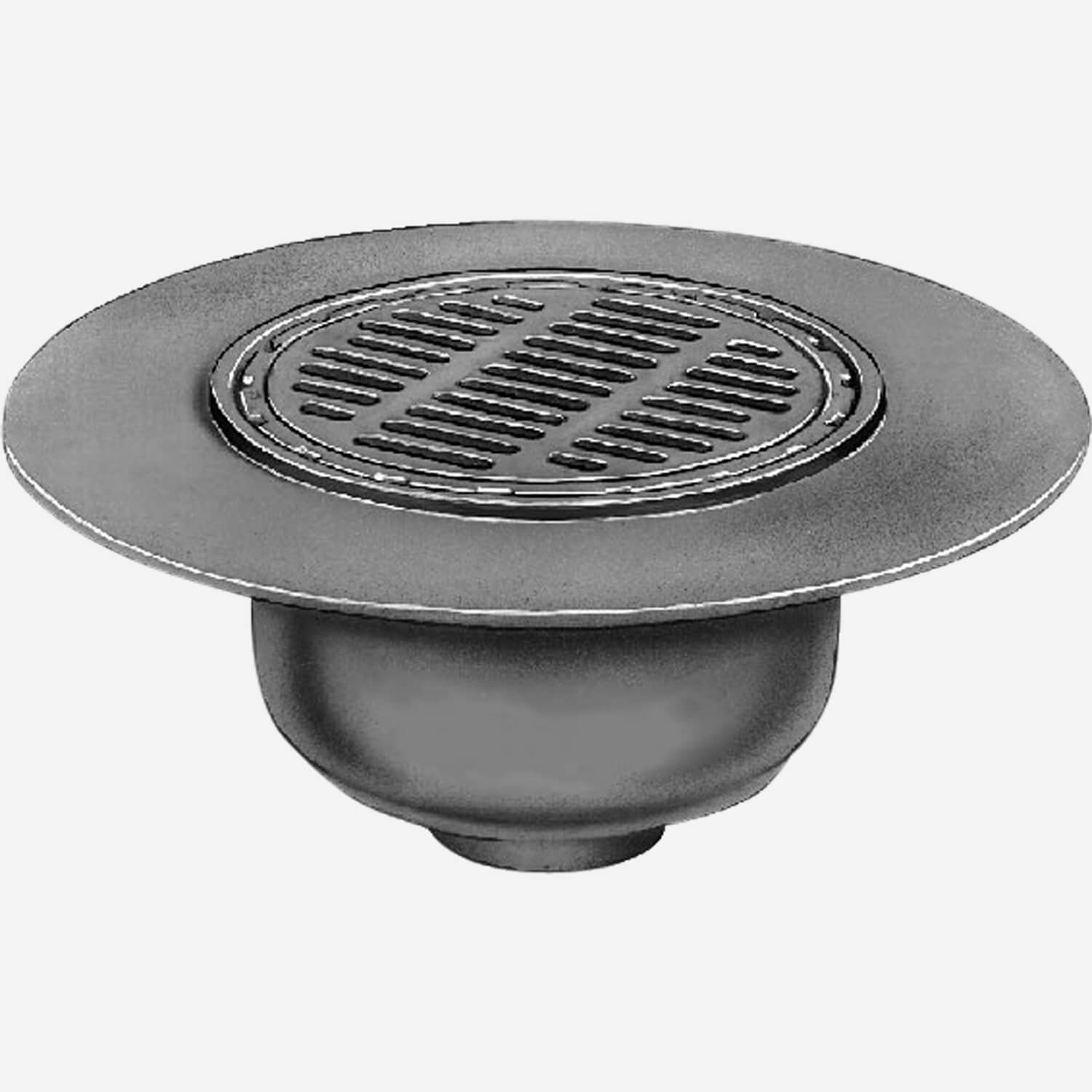

DX2566 Floor Drain Revit DrawingFloor Drains - Wide-Flange Bodies with Safe-Set® Bucket - 20" Diameter x 8.75" Height with 12.25" Diameter Top [DX2566C | Caulk Outlet; DX2566T | Threaded Outlet] RFA396 KB
Literature / Videos
Submittal DX2568 Floor DrainFloor Drains - Square Flange with Nickel Bronze Tractor Grate for use with Waterproof Deck Covering for Wood Deck or Concrete Construction [DX2568C | Caulk Outlet; DX2568T | Threaded Outlet]PDF555 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch
  • DX2568 14.25" (360 mm) Square x 4" (100 mm) Height with 7.75" (195 mm) Diameter Top
  • DX2566 20" (508 mm) Diameter x 8.75" (222 mm) Height with 12.25" (311 mm) Diameter Top
