Figure Number: 2233 and 2238
Contact a Representative

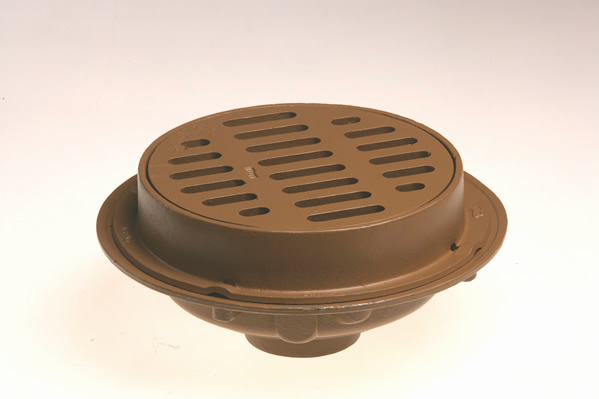

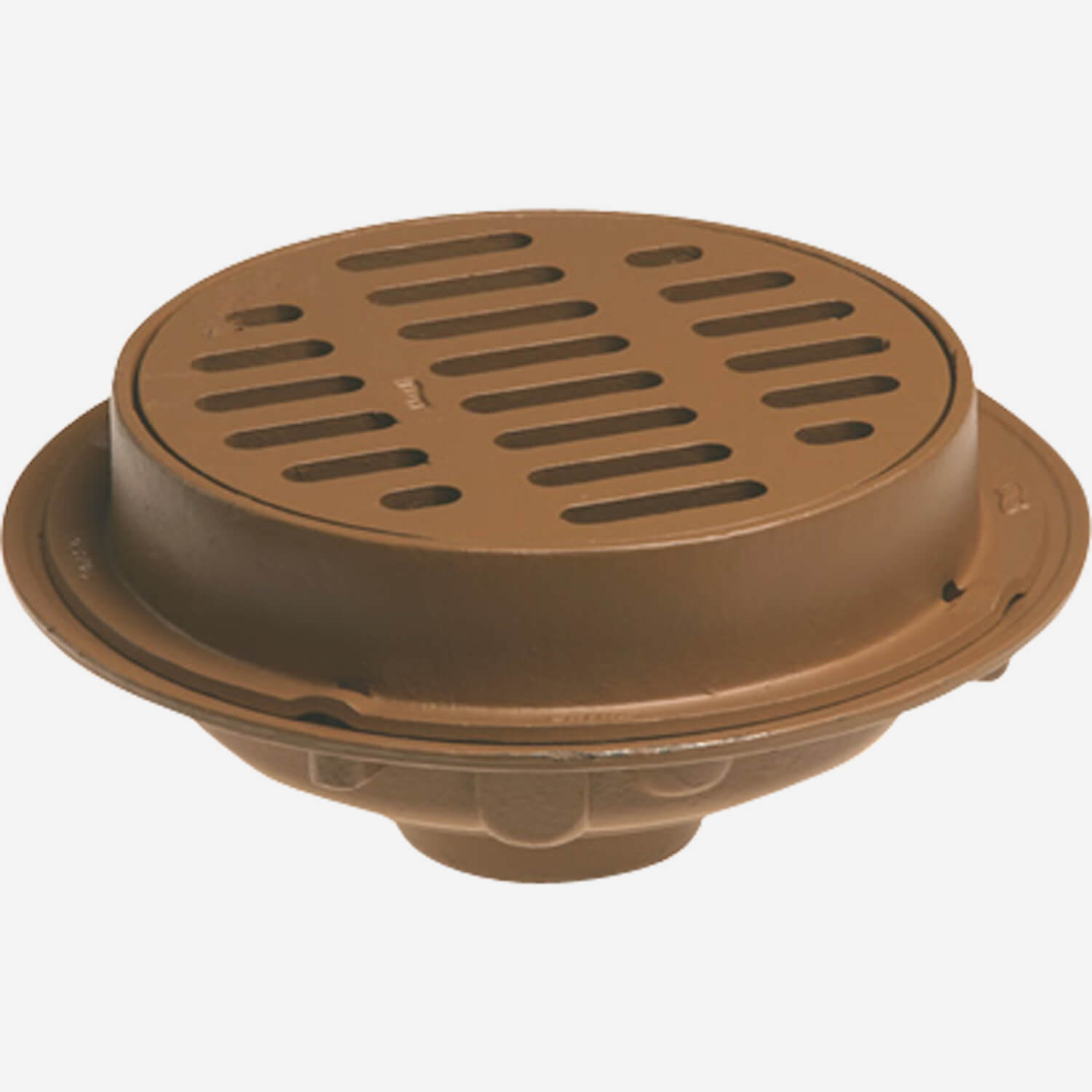

2233 and 2238Medium Duty Floor Drains with 12" Round Tops and Tractor Grate - Bottom or Side Outlet

Designed to facilitate cleanout in medium trucking areas where wastewater debris must be prevented from entering the drainage system. A handle is provided so the sediment bucket can be easily lifted through this floor drain's large 12" diam. grate. This medium duty drain and tractor grate is made of Duco cast iron. Other configurations are available.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Hinged Grate -H, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor, Solid Free Standing Bucket -B, Vandal Proof Grate - U, Square Top -S, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2233, 2238 Floor Drain (pdf)
View
Technical Drawings
2238 Floor Drain CAD DrawingMedium Duty Floor Drains with 12" Round Tops and Tractor Grate [2238 | Side Outlet; 2233 | Bottom Outlet]DWG139 KB
2233 Floor Drain CAD DrawingMedium Duty Floor Drains with 12" Round Tops and Tractor Grate - Bottom OutletDWG209 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
2233 Floor Drain (hi res jpg)Medium Duty Floor Drains with 12" Round Tops and Tractor Grate - Bottom OutletJPG42 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

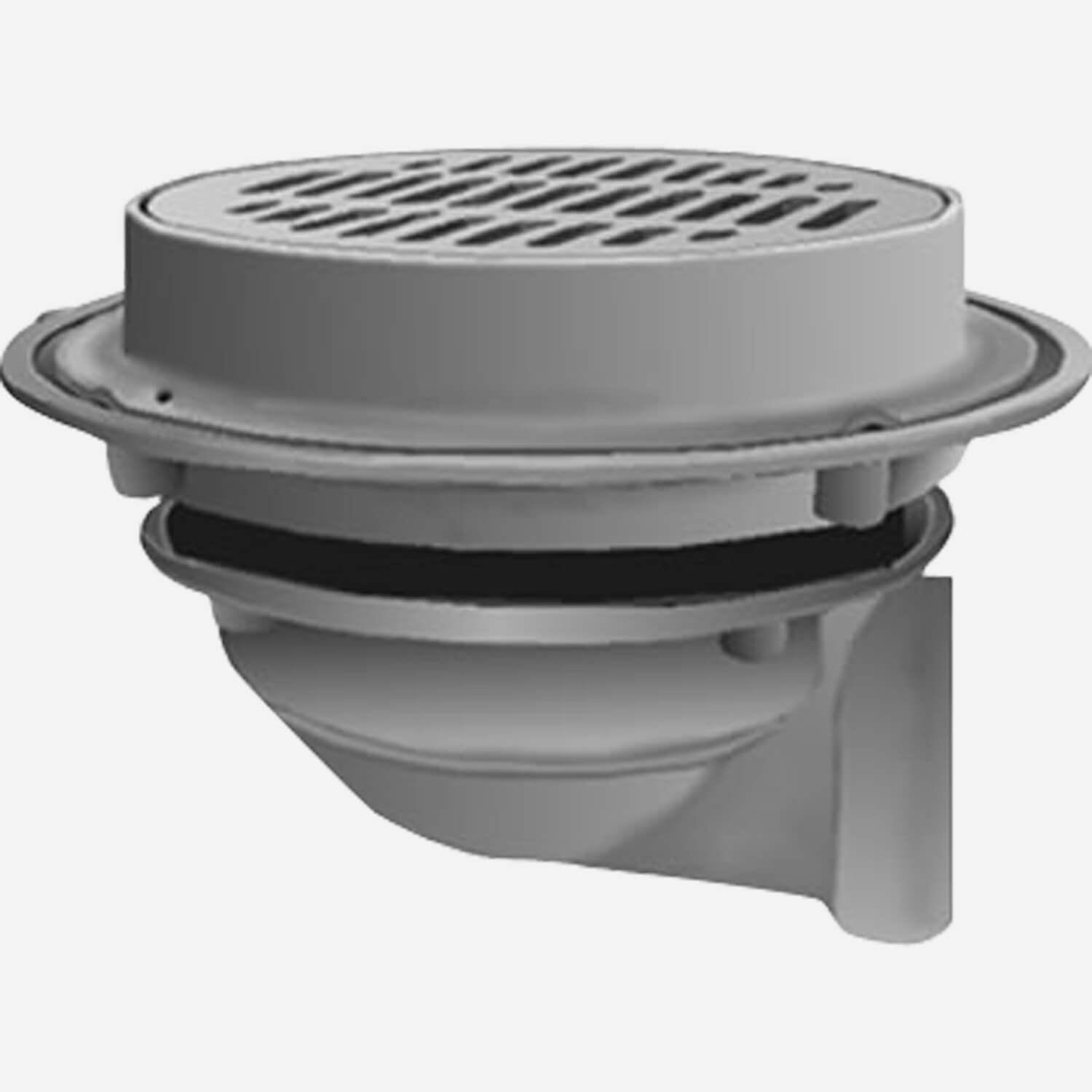

  • 2238 With Side Outlet
