Figure Number: 4171

4171Tile Floor Cleanouts with Square Nickel Bronze Tops, Tile Recess and Speedi-Set® Outlet

This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings such as asphalt, vinyl tile or linoleum are installed. Its 6” (150) square nickel bronze top is recessed 1/8” (3) to receive an inlay of the floor material for an unobtrusive appearance. Constructed of Duco coated cast iron, this cleanout is designed to support foot and medium load wheeled traffic. It is available with 2", 3" and 4" outlets.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Flange -F, Flashing Flange and Clamp -F-C, Vandal Proof -U - Top, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Polished Bronze Top - PB
  • Product Type
    Cleanout
Technical Drawings
DWG 4171 CleanoutDWG 4171 CleanoutDWG110 KB
Literature / Videos
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Cleanouts Flyer (pdf)Flyer for CleanoutsPDF847 KB

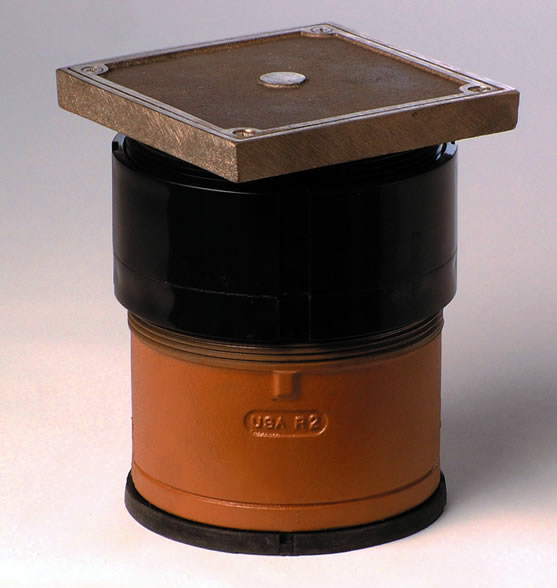

4171 - Square Nickel Bronze Top with Tile Recess (hi res jpg)JPG35 KB

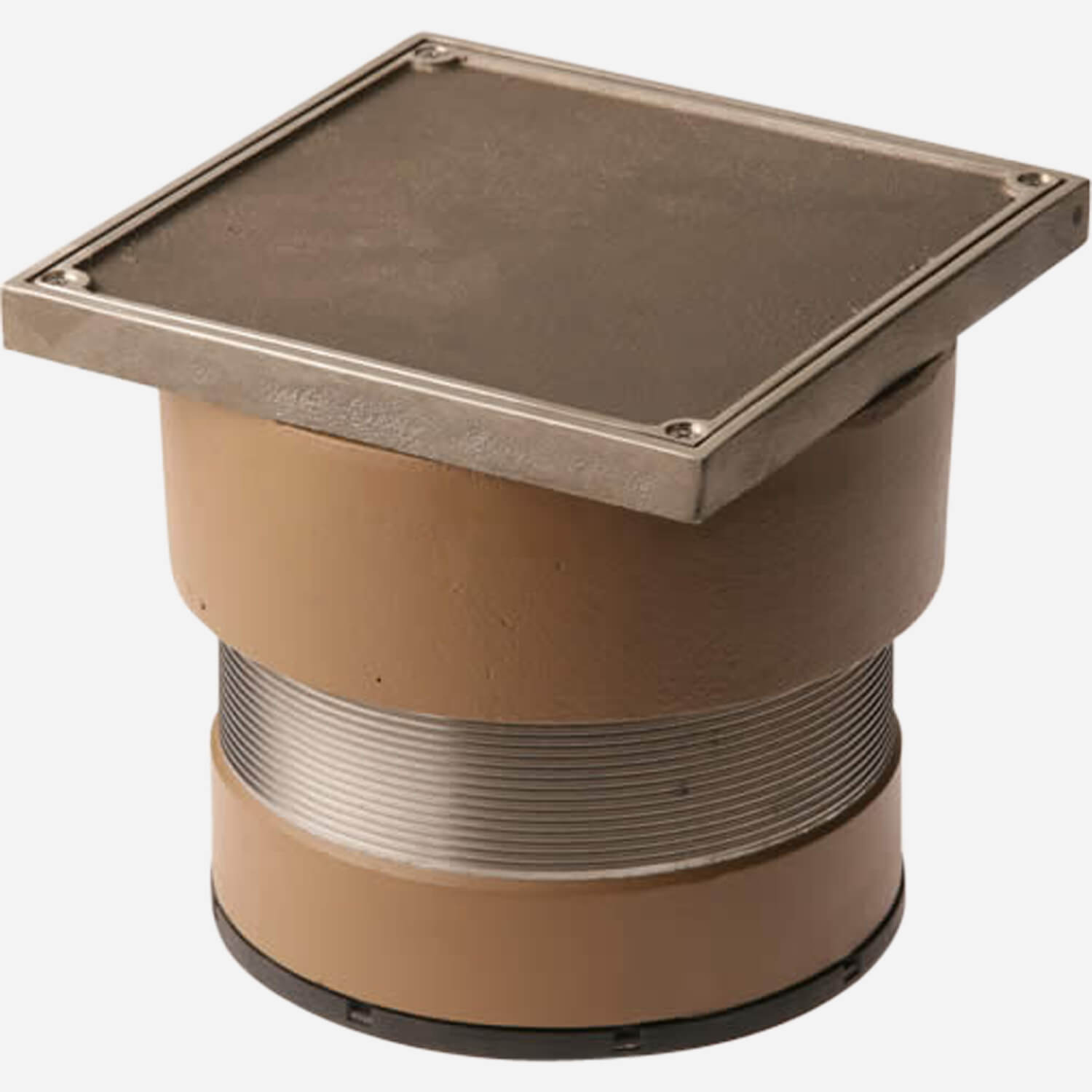

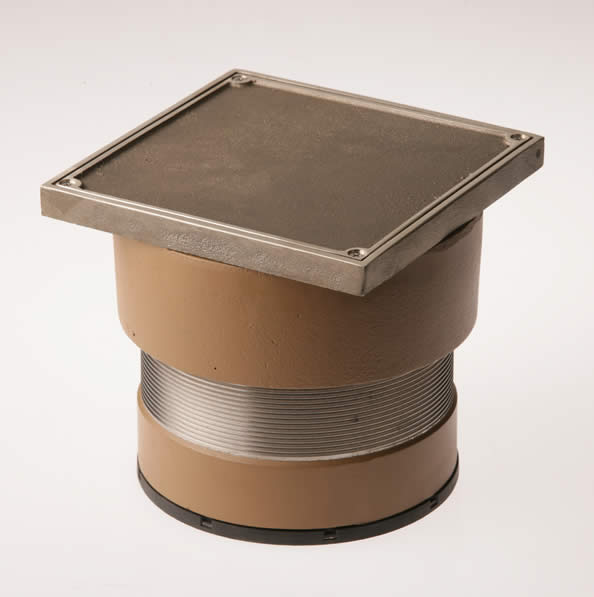

4173 - Square Nickel Bronze Top with Tile Recess (hi res jpg)JPG21 KB

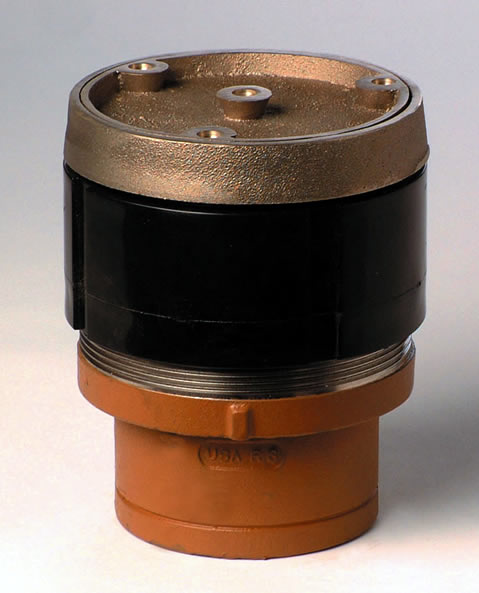

4180 - Round Nickel Bronze Top with Terrazzo Recess (hi res jpg)JPG37 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Can't find what you are looking for? Get in touch
