Figure Number: 9735
Contact a Representative

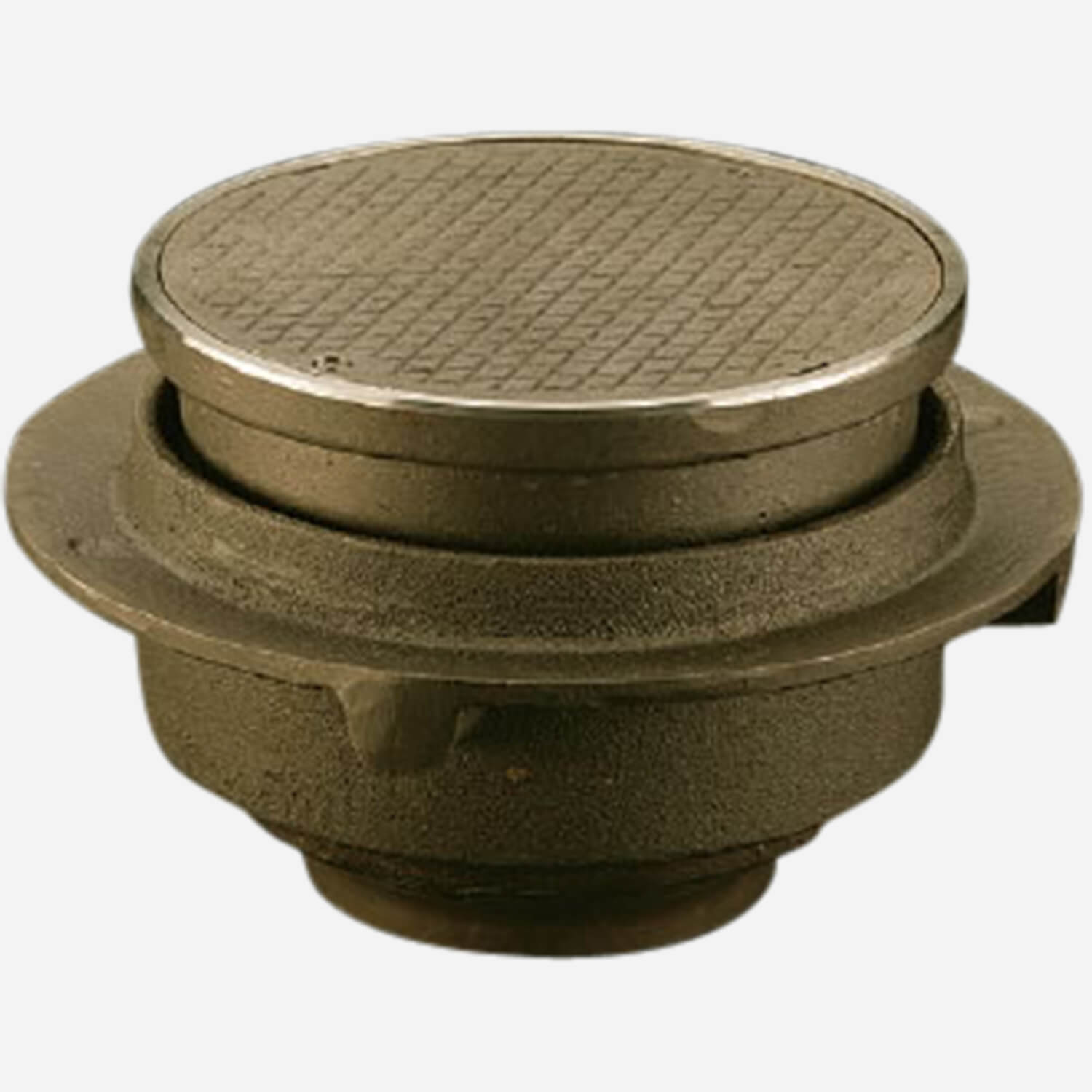

9735Adjustable Top, Scoriated Cover and Closure Plug for Floor Drains

The CF8 rough finish stainless steel (equivalent to type 304) body, cover and closure plug of this unit is designed to prevent sewer gases from entering through the drain in buildings that process corrosive liquids while maintaining high levels of sanitation (ie. chemical laboratories, dairies, breweries, and atomic energy and bottling plants). The 8-1/2” (215) diam. solid scoriated top can easily be adjusted to meet the level of surrounding flooring.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    4"(100) Extension -E04, Plastic Closure Plug and Gasket -XPP, Flashing Clamp with Seepage Holes - C, Satin Finish Top - SF, Seepage Holes -WSH, Vandal Proof Cover -U, 90° Side Outlet (Specify Fig. 9759), Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), Closure Plug with 3/4"(19) Test Plug -TP (Specify Material), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    A-27 Carbon Steel Body - A27B, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B
  • Product Type
    Drain
SubmittalSubmittal 9735 Drain
View
Technical Drawings
DWG 9735 DrainDWG 9735 DrainDWG55 KB
Literature / Videos
Stainless Steel Drainage Products Brochure (pdf)Stainless Steel Drainage ProductsPDF4 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB

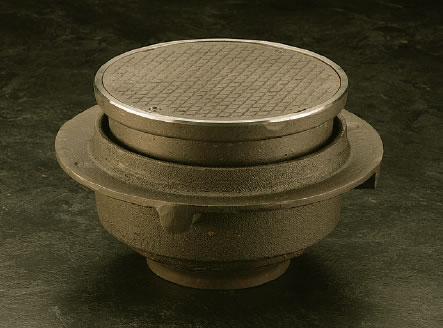

9735 - 8 1/2" Round Special Purpose Floor Drain with Adjustable Top, Solid Scoriated Cover and Closure Plug for Medium Duty Use (hi res jpg)JPG30 KB

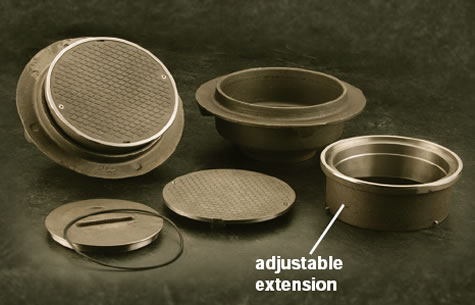

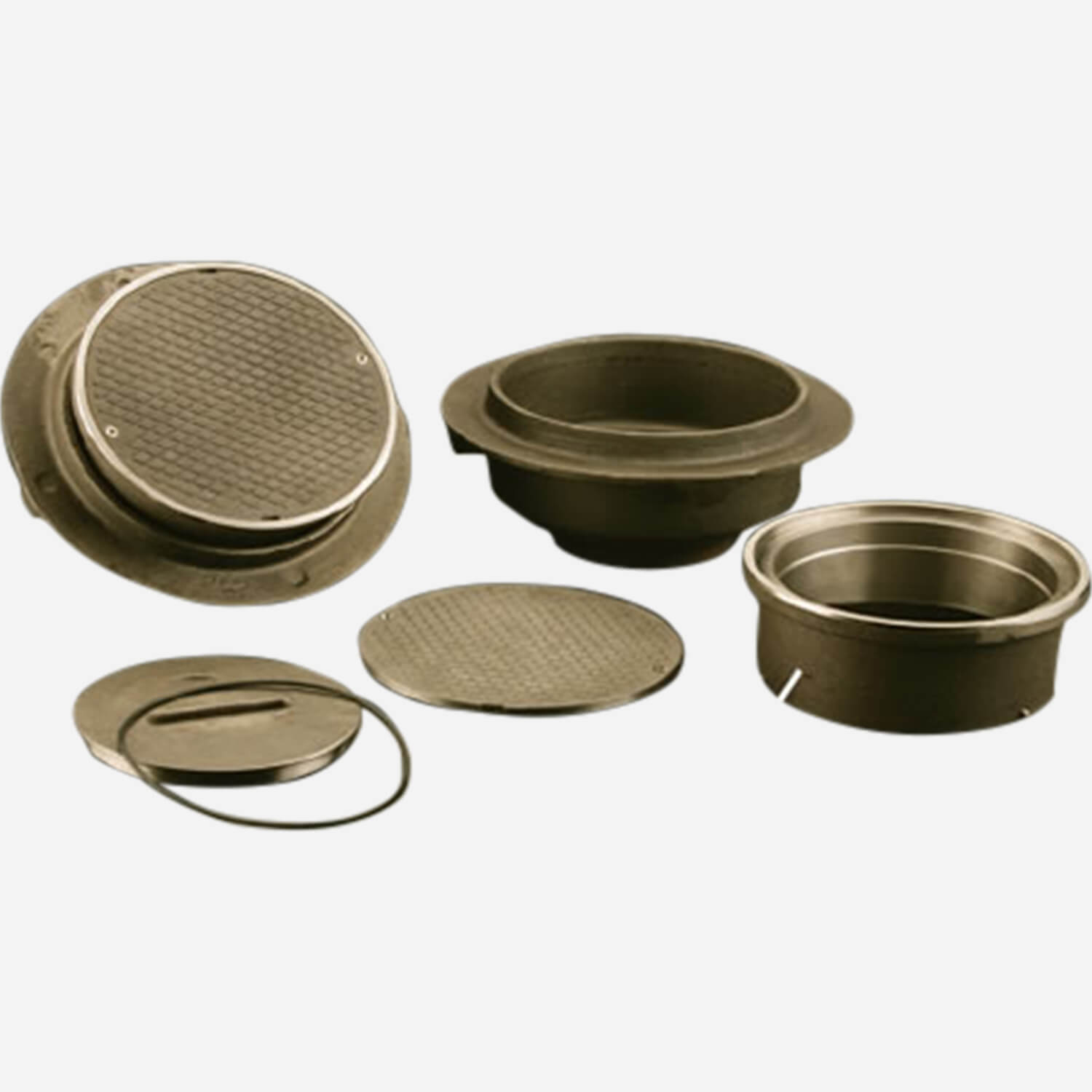

9735 - 8 1/2" 8 1/2" Round Special Purpose Floor Drain with Adjustable Top, Solid Scoriated Cover and Closure Plug for Medium Duty Use with Options (hi res jpg)JPG25 KB
Order Guidelines for SpecialtiesOrder Guidelines for SpecialtiesPDF268 KB
