Figure Number: 5830
Contact a Representative

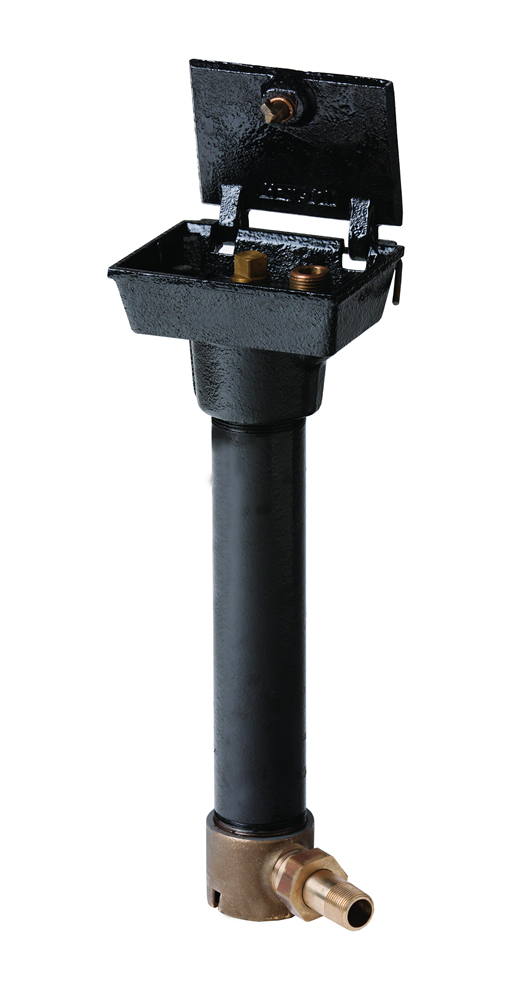

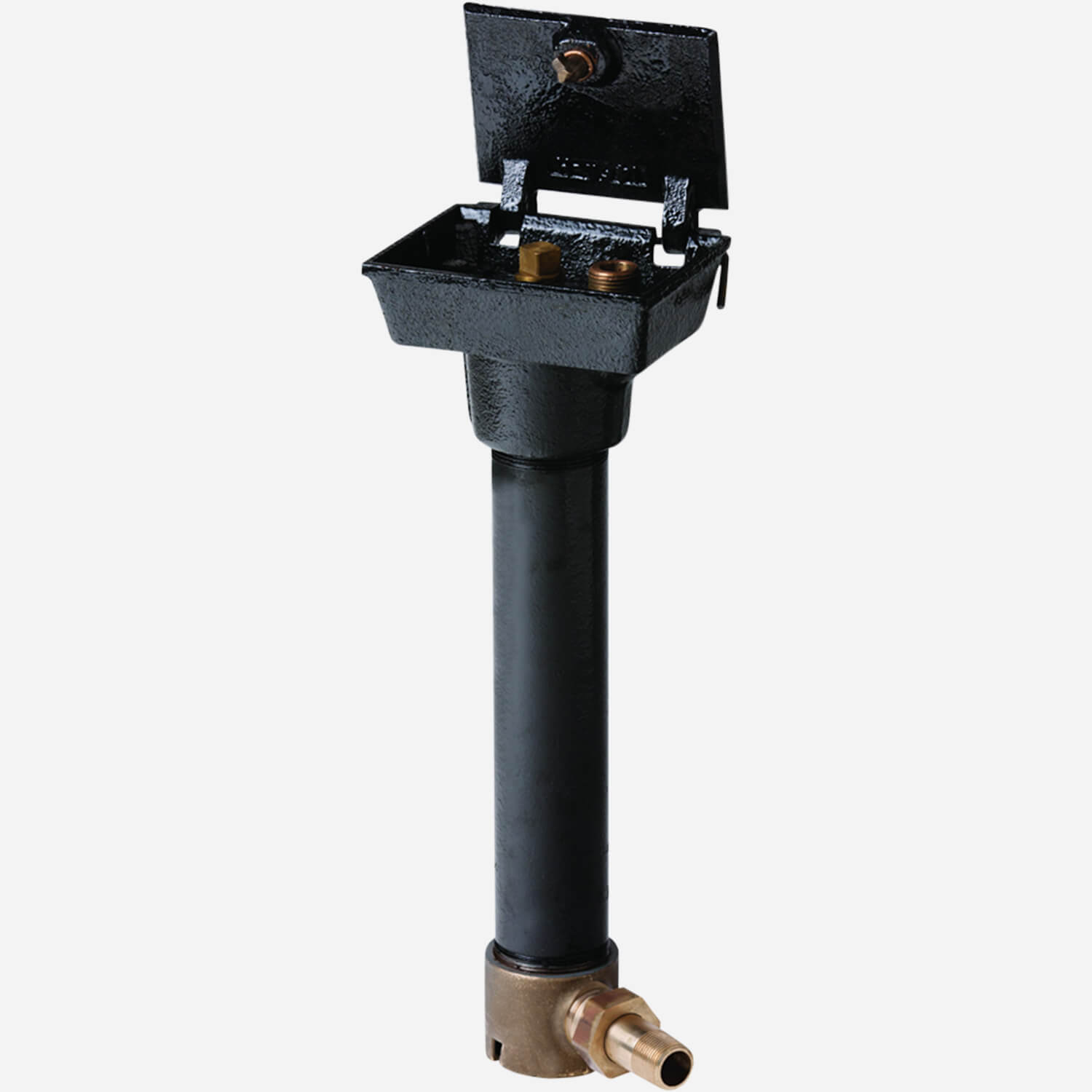

5830Flush Boxed Ground Hydrant

Developed for inconspicuous and tamper proof placement, this hydrant's locking cast iron hinged lid is designed for installation flush with adjacent hard and soil-type surfaces. Under the lid, below grade, the hydrant's brass 3/4" hose connection, valve control, and valve casing are encased in cast iron that has been enamel coated against corrosion. The casing extends below the frost line, ensuring freeze-proof operation, where it is capped by a solid brass 3/4" inlet. Field serviceable parts are easily accessible from the top of the hydrant.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Hydrant
  • Variations
    Depth of Bury [2 ft (610 mm); 3 ft (915 mm); 4 ft (1,220 mm); 5 ft (1,525 mm); 6 ft (1,830 mm)]
SubmittalSubmittal 5830 Hydrant
View
Technical Drawings
5830 Hydrant CAD DrawingFlush Boxed Ground HydrantDWG174 KB
Literature / Videos
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
5830 Hydrant (hi res jpg)Flush Boxed Ground HydrantJPG128 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
