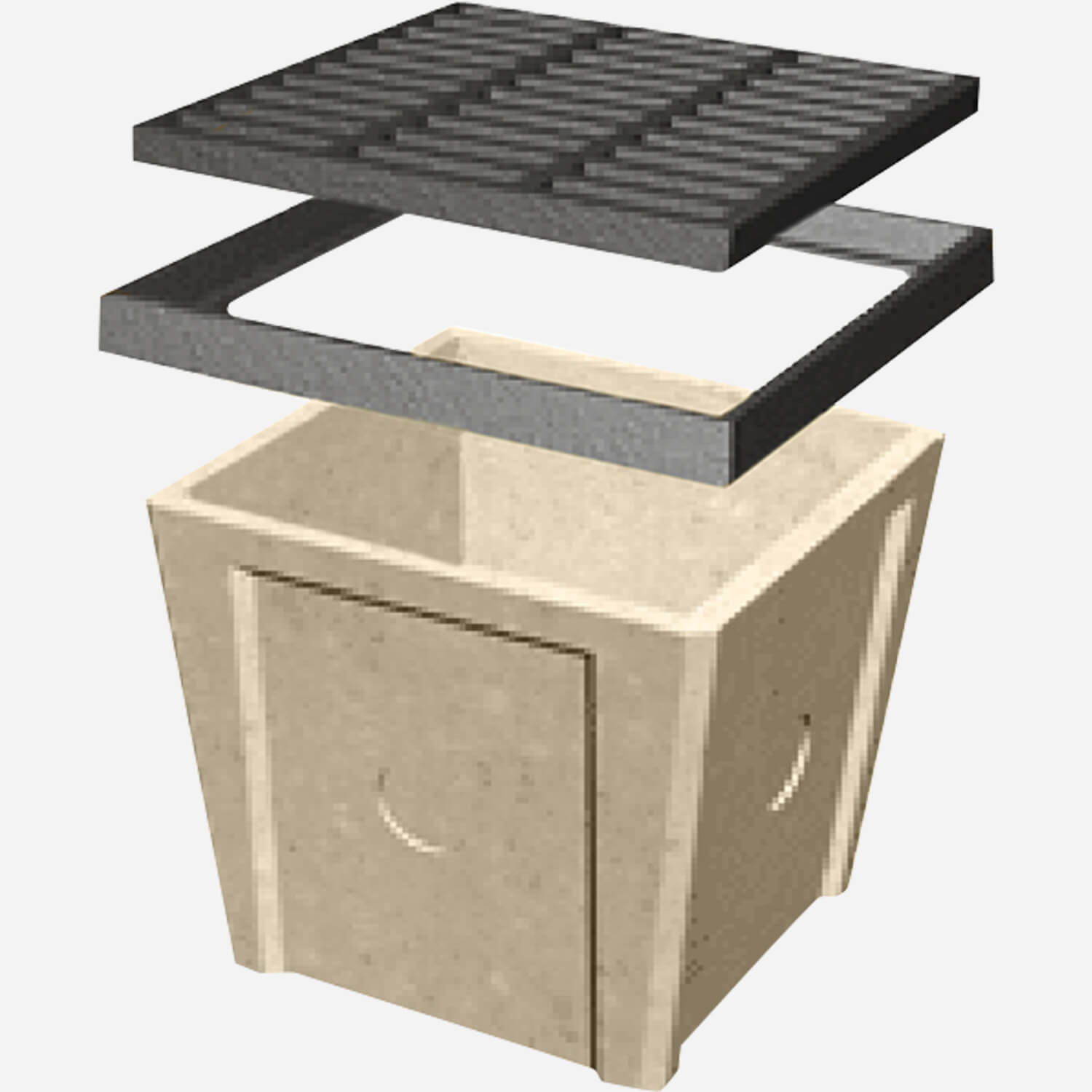

Sump Boxes

Figure Number:  9846
Product Function:
Sump boxes are cast 1pc. polymer concrete units which offer solutions to many applications. Well suited for high capacity flow rates, solid and sludge handling, chemical containment and pump housing.

Regularly Furnished:
Polyester Polymer Concrete 1pc. Sump Box with Duco Coated Cast Iron Frame and Grate. Load Class "C". Specify Diameter and Location of Invert of Inlet and Outlet.
Related Figure Numbers

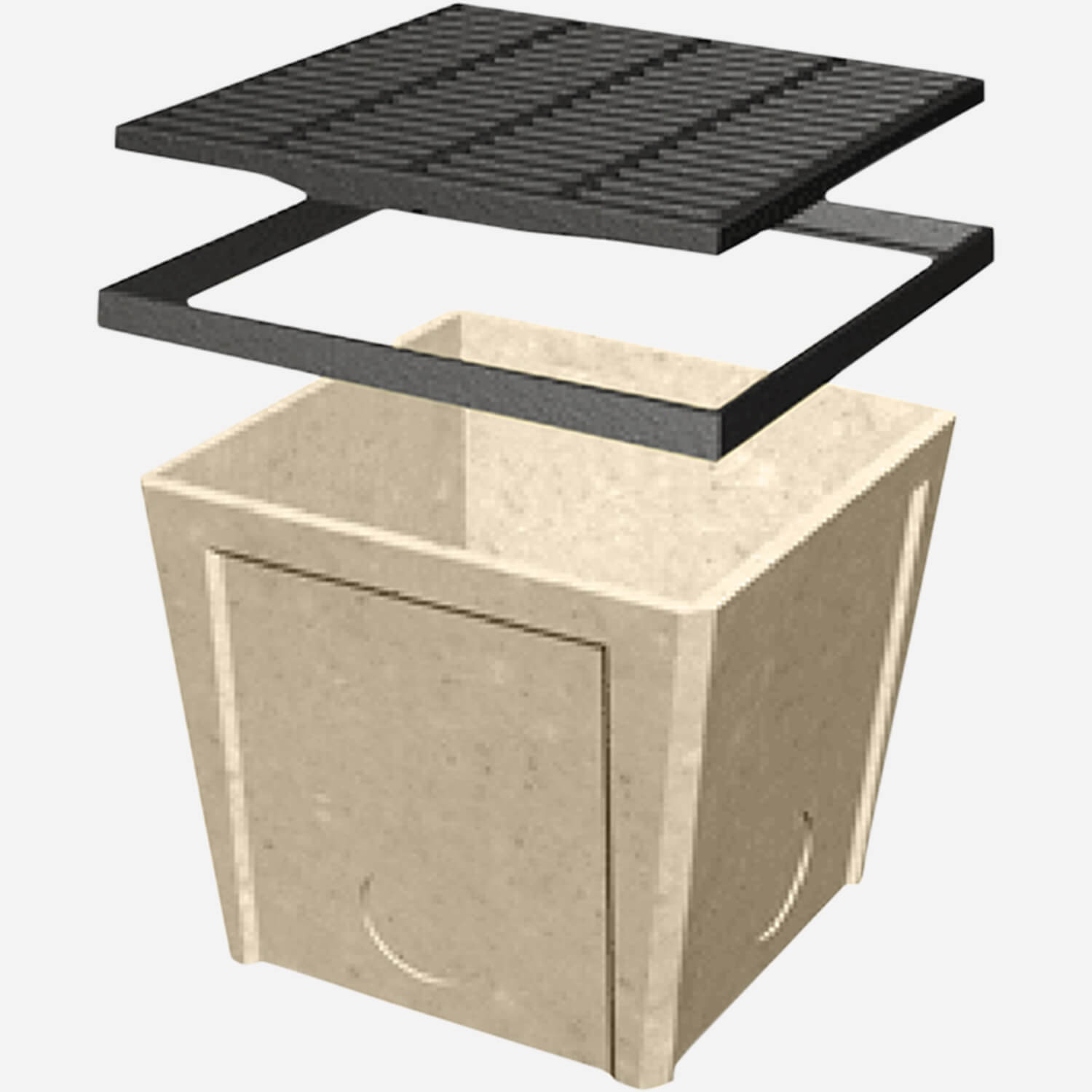

  • 9847 - 3' x 3' Sump Box
