Figure Number: 9898

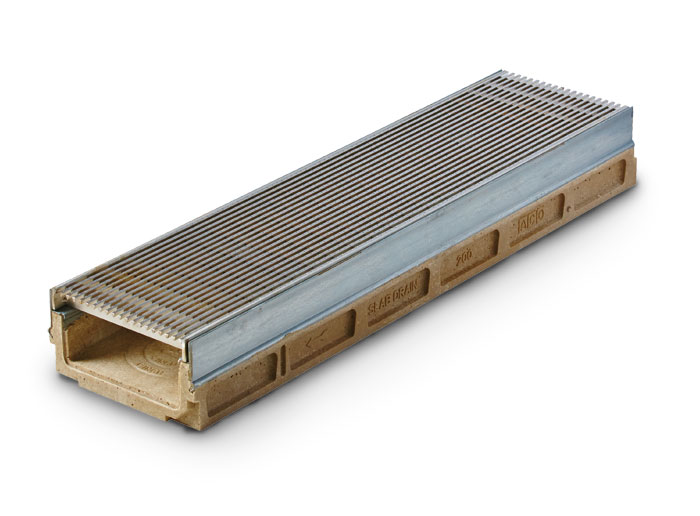

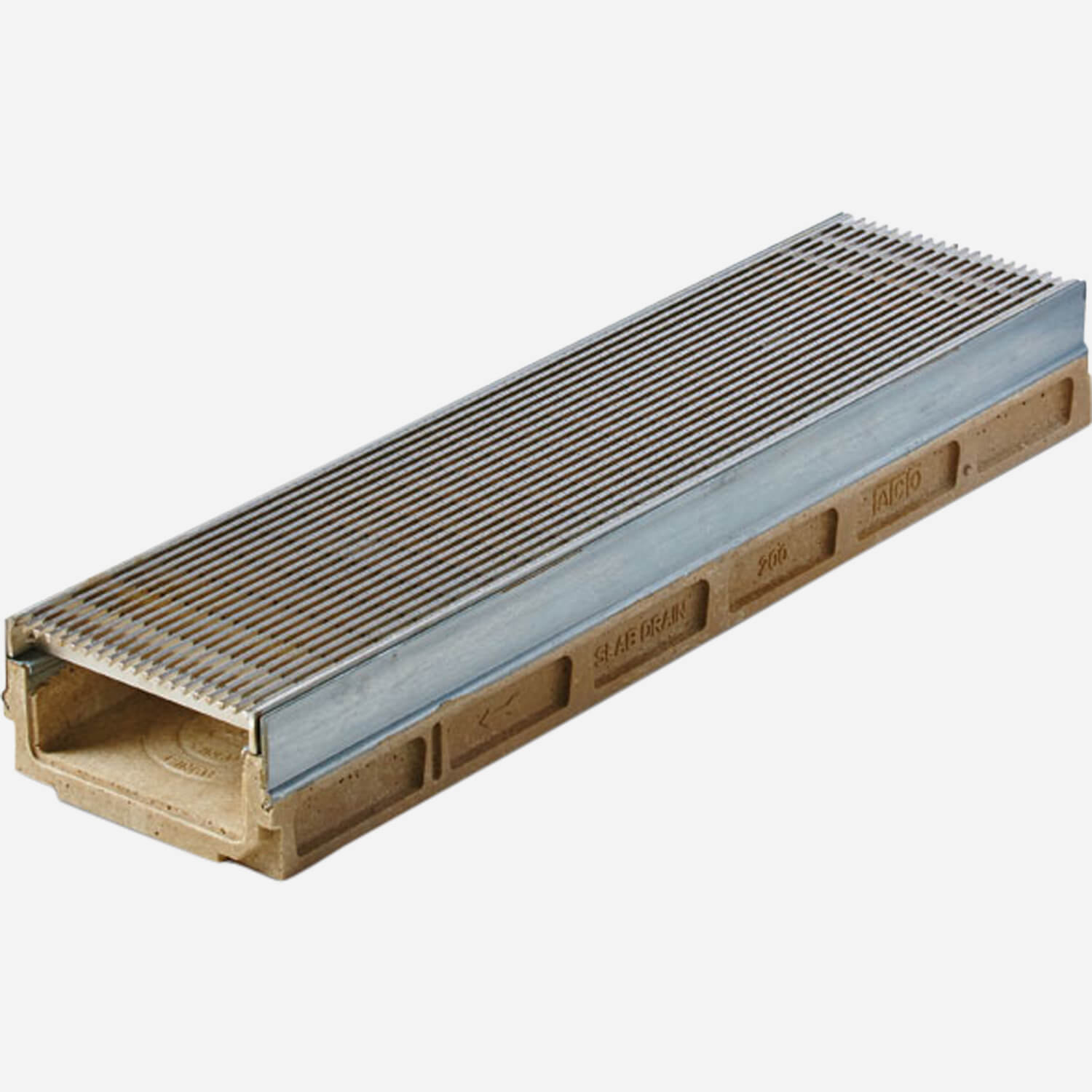

989810" Wide 'Shallow' Polymer Concrete Trench Drain System with Integral Metal Rail - Slabdrain®

This 10" wide 'shallow' trench drain with extra heavy duty integral ductile iron edge rails allow for extra heavy duty traffic. They may be assembled in any length and are versatile for use in all surface drainage applications. The convenient interlocking design reduces installation time and cost. It is ideal for use in airports, highways, docks and ports, military bases, truck stops, maintenance shops, hangars, and frequent traffic areas.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Closing End Cap, 9854 Plastic Dome Bottom Strainer, Grate Removal Tool, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Stainless Steel
Literature / Videos
Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)PDF497 KB
Smith/ACO Drainage Systems-Site-Installation-Manual Brochure (pdf)Smith/ACO Drainage Systems-Site-Installation-ManualPDF5 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Trench Drain Flyer (pdf)Trench Drain Flyer (pdf)PDF2 MB
Smith Trench Drain Brochure (pdf)Your complete trench drain source. Solutions and materials PDF13 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
9898 Drainage System (hi res jpg)JPG51 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Can't find what you are looking for? Get in touch
This Trench Drain System is Designed for "On Grade Applications Only" as There are No Provisions for a Flashing Flange or Flashing Clamp
