Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Expansion Joint (Specify Fig. 1710) - (Fig. 1450 Only), Extension -E - (Specify Height), L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1450 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1450 Only), Underdeck Clamp -C, NO-HUB Adaptor - Fig. 1460 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP, Heel Proof -HP
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type

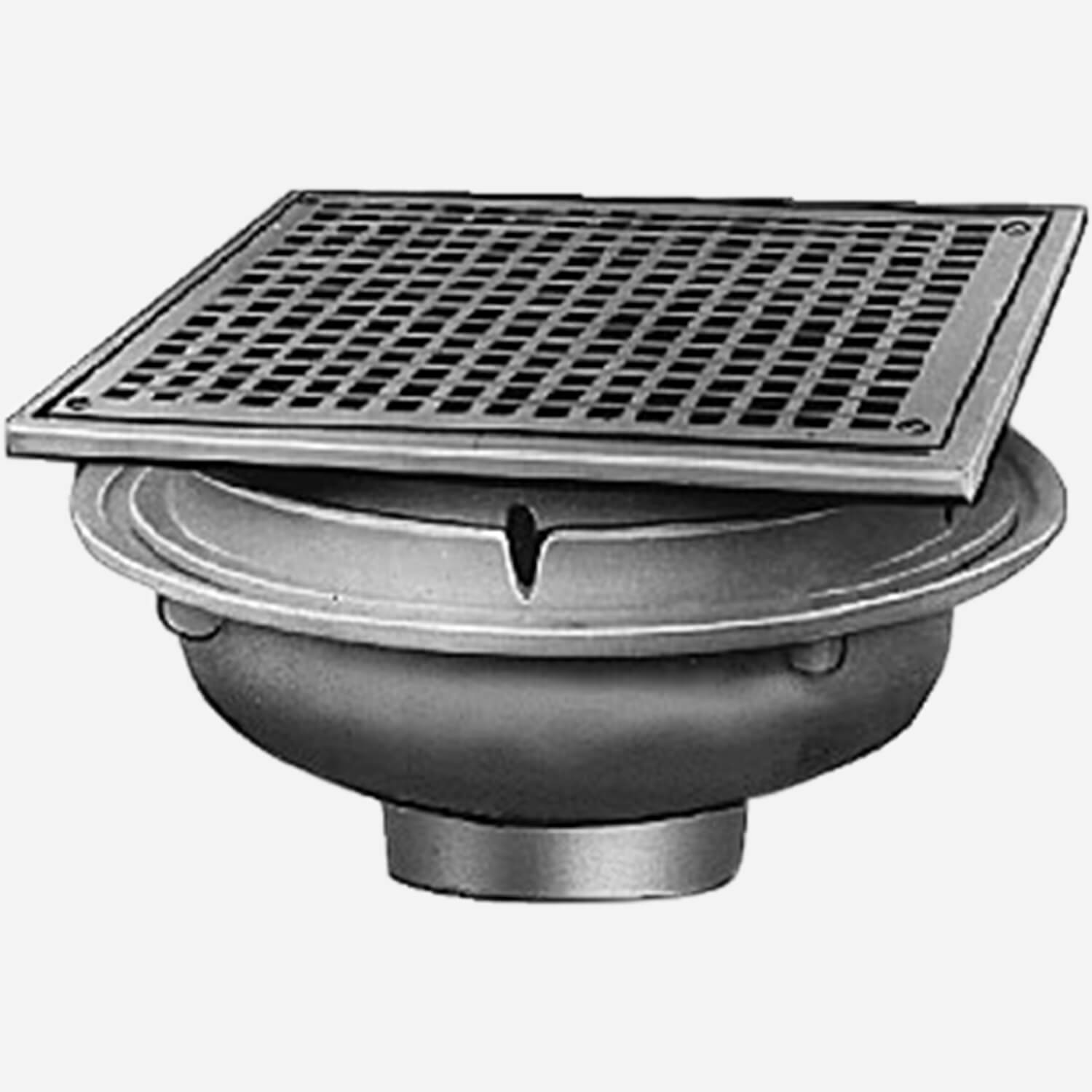

    Roof Drain
SubmittalSubmittal 1450, 1460 Drain (pdf)
View
Technical Drawings
1460 Drain (dwg)11" Square Promenade Deck Drain [submittal] [1460C | Caulk Side Outlet; 1460Y | No-Hub Side Outlet; 1450C | Caulk Bottom Outlet 1450Y | No-Hub Bottom Outlet; 1450T | Threaded Bottom Outlet]] DWG377 KB
1459 Drain (dwg)Medium 11" Square Promenade Insulated Deck Drain with 4" Extension and Seepage Holes [1459C | Caulk Outlet; 1459Y | No-Hub Outlet; 1459T | Threaded Outlet]DWG116 KB
1450 Drain (dwg)11" Square Promenade Deck Drain [1450C | Caulk Bottom Outlet; 1450Y | No-Hub Bottom Outlet; 1450T | Threaded Bottom Outlet]DWG262 KB
1450 Deck Drain Revit Drawing11" Square Promenade Deck Drain [1450C | Caulk Bottom Outlet; 1450Y | No-Hub Bottom Outlet; 1460C | Caulk Side Outlet; 1460Y | No-Hub Side Outlet]RFA252 KB
Literature / Videos
Submittal 1459 Roof DrainMedium 11" Square Promenade Insulated Deck Drain with 4" Extension and Seepage Holes [1459C | Caulk Outlet; 1459Y | No-Hub Outlet; 1459T | Threaded Outlet]PDF482 KB
Submittal 1469 Drain (pdf)Medium 11" Square Promenade Insulated Deck Drain with 4" Extension, Seepage Holes and Wide Flange [1469C | Caulk Outlet; 1469Y | No-Hub Outlet; 1469T | Threaded Outlet]PDF421 KB
Submittal 1459-EPSS Drain (pdf)Medium 11" Promenade Insulated Roof Drain Duco Cast Iron Body and 4" Perforated Extension with Secondary Flashing Clamp and Secured Square Hole ADA Grate [1459C-EPSS | Caulk Outlet; 1459Y-EPSS | No-Hub Outlet; 1459T-EPSS | Threaded Outlet]PDF926 KB
Submittal 1450-DEP Drain (pdf)11" Square Promenade Deck Drain with Deck Extension Plate [1450C-DEP | Caulk Outlet; 1450Y-DEP | No-Hub Outlet; 1450T-DEP | Threaded Outlet]PDF445 KB
Submittal 1450-E, 1460-E Drain (pdf)11" Square Promenade Deck Drain with Vertical Extension [1450C-E | Caulk Bottom Outlet; 1450Y-E | No-Hub Bottom Outlet; 1450T-E | Threaded Bottom Outlet; 1460C-E | Caulk Side Outlet;1460T-E | Threaded Side Outlet]PDF492 KB
Submittal 1450-RDP Drain (pdf)11" Square Promenade Deck Drain with Roof Deck Plate [1450C-RDP | Caulked Bottom Outlet; 1450Y-RDP | No-Hub Bottom Outlet]PDF458 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
