Fine-Line® Linear Shower Drains Applications

Fine-Line® will give your bathroom a touch of flair you will love so much you will sing in the shower again.

Fine-Line® Designer Shower Drains by Jay R. Smith Mfg. Co.® add beauty and artful design to a shower stall. Fine-Line® has a sophisticated linear look and grate selection that pairs perfectly with natural stone, marble, ceramic tile, porcelain title, or solid surface materials.

  • Stainless steel drain body with satin finish grates
  • Optional, high polished finish for a slick look
9667-FineLine
  • Designer grate options:
    • symmetrical perforation for enhanced water flow;
    • geometric slots add an artistic look;
    • soothing ocean waves to promote calm;
    • solid rim flow for a clean and elegant design; and
    • tile inlay (use your tile or stone) to create a custom finish.

Jay R. Smith Mfg. Co. is famous for drains. We are proud to introduce our newest addition to the Smith drain line: Fine-Line® Linear Shower Drains. Fine-Line® drains add a clean and seamless look to all shower applications, including:

  • Healthcare Facilities & Hospitals
  • Athletic Facilities & Locker Rooms
  • Residential
  • Hospitality & Hotels


  • Healthcare/Hospitals

    260x180
  • Athletic Facilities

    260x180
  • Residental

    residential
  • Hospitality/Hotels

    260x180

260x180 NSF Certified Stainless Steel Drains


Two Body Style Options
Shipped in a Compact Box

  • Fine-LIne--no-flang

    No Flashing Flange

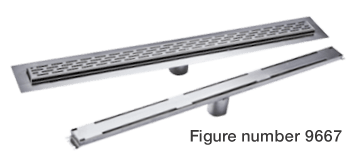

    Figure Number 9667

  • /Fine-Line-Flange.

    Flashing Flange
    Figure Number 9667-F

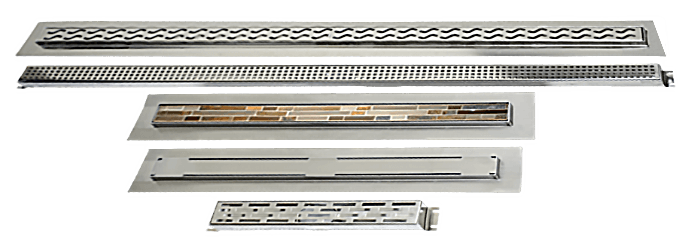

Grate Variations


Fine-Line-Grates

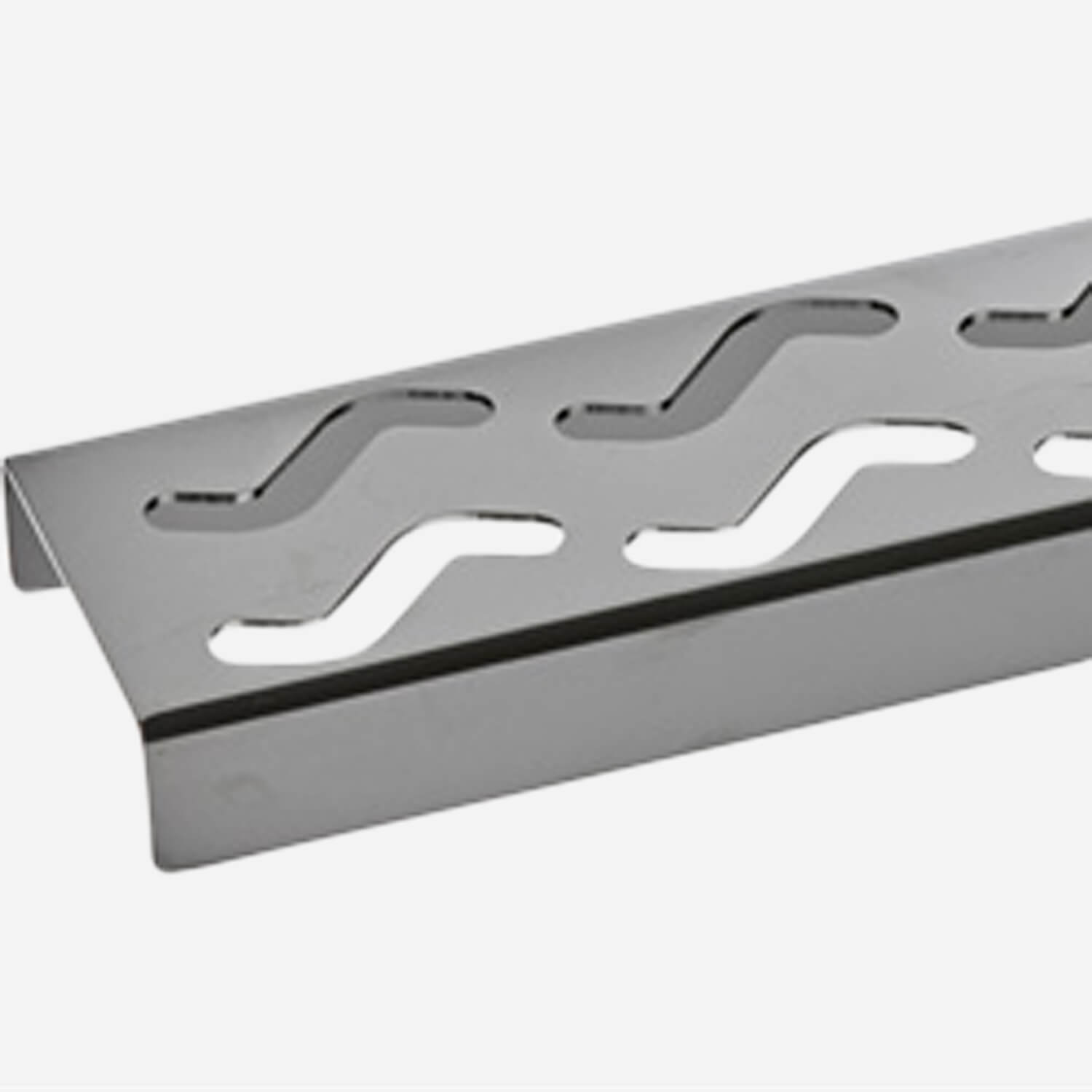

Wave-Grate

Wave
-WG

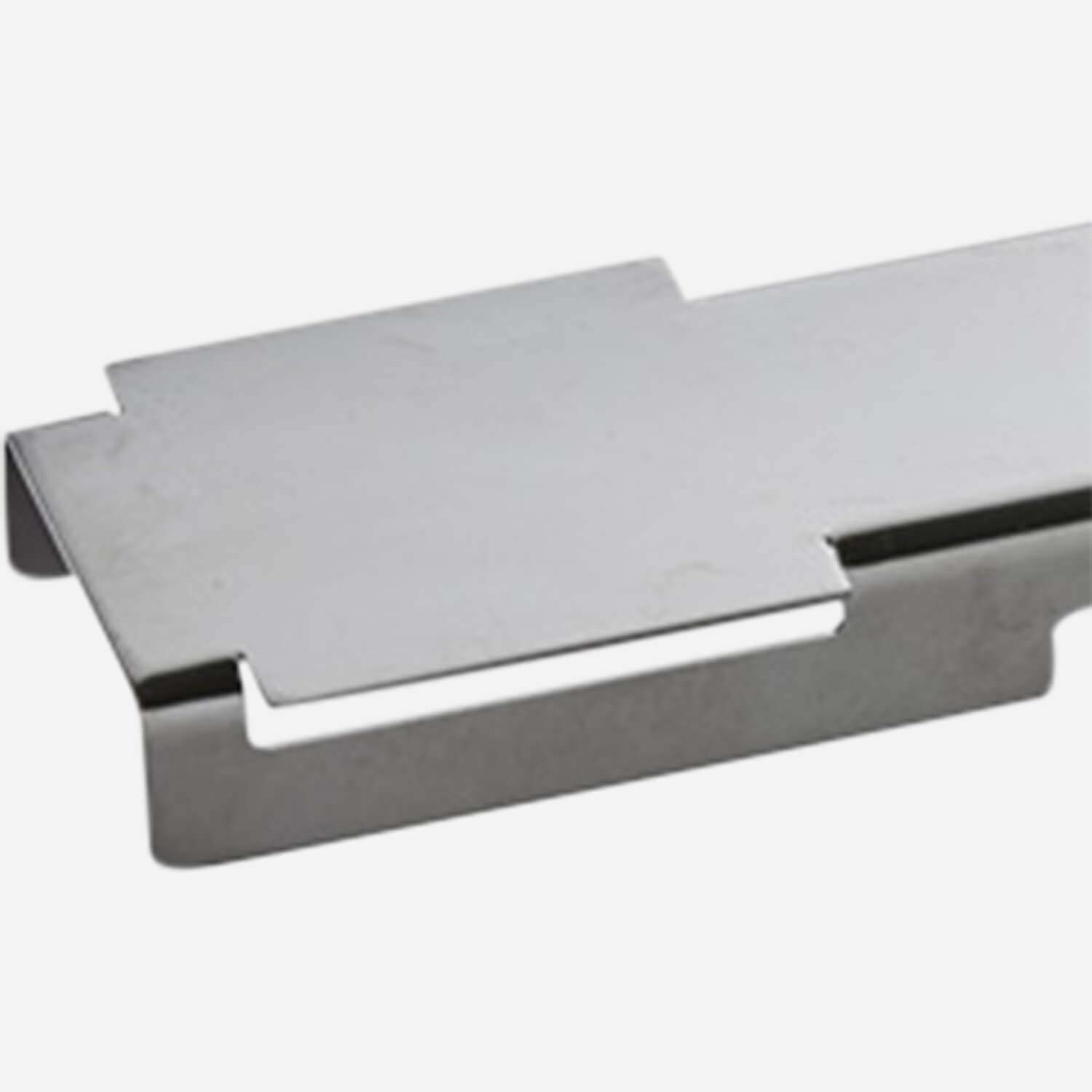

Solid Rim Flow Grate

Solid Rim Flow
-SRFG

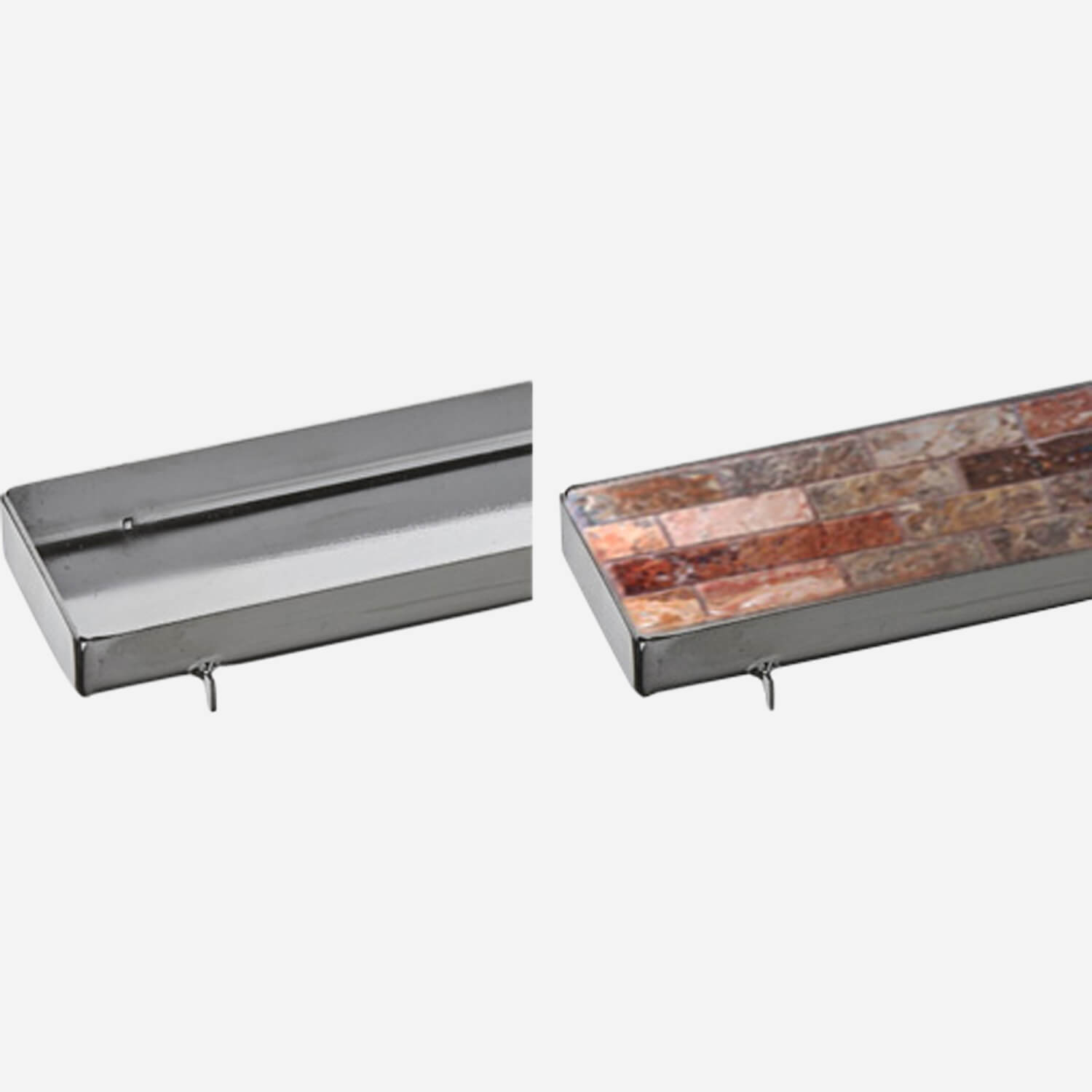

Tile-Inlay-Grate

Tile Inlay (Tile Not Included)
-TIG

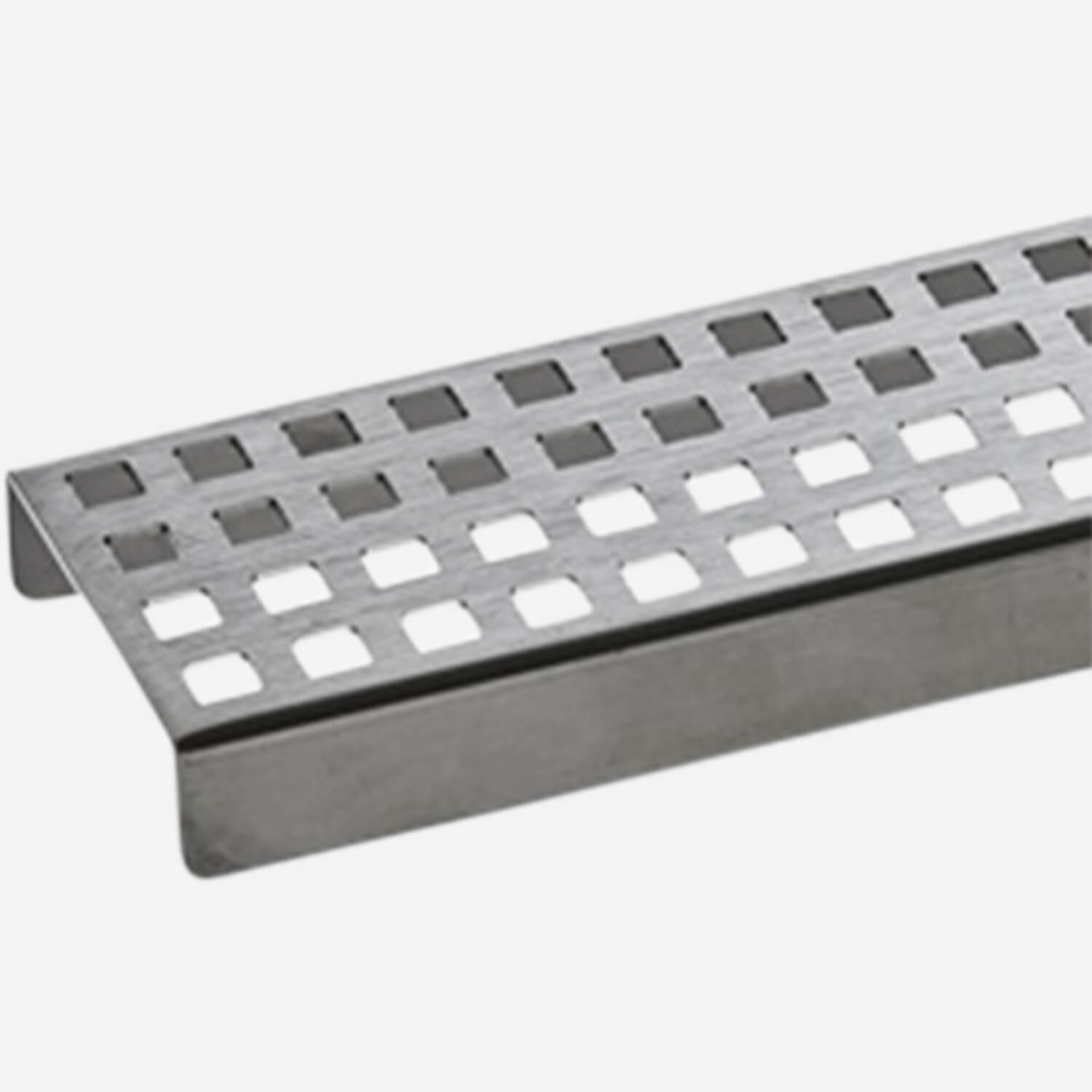

Perforated-Grate

Perforated
-SPG

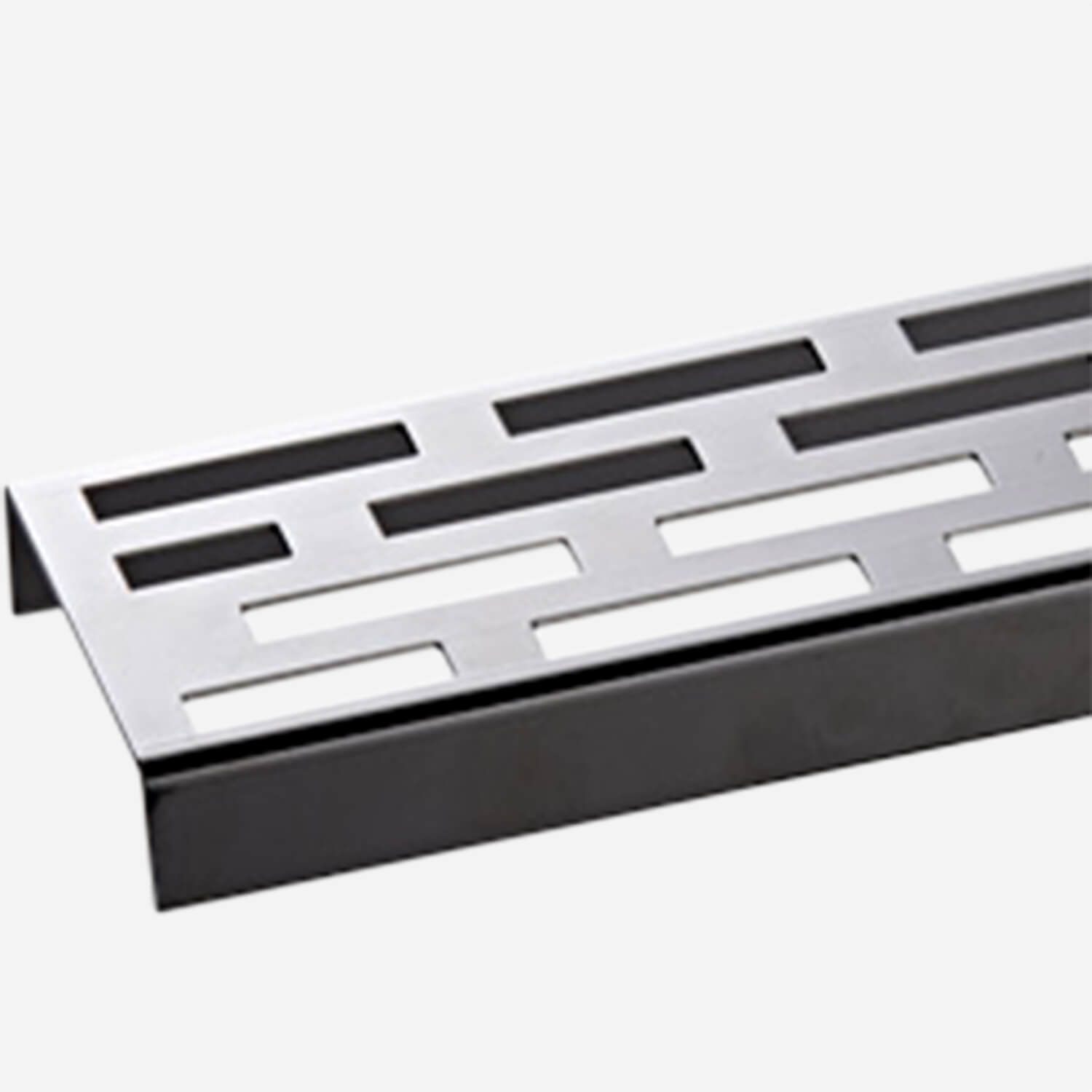

Slotted-Grate

Slotted
-SG


Fine-Line® Linear Shower Drains Literature


Click Here to View Fine-Line® Product Page
